Tektronix MSO73304DX
4+16-CH, DIGITAL, 33GHz Mixed Signal Oscilloscope
Rent or Lease
Tektronix - MSO73304DX
The Tektronix MSO73304DX mixed signal oscilloscopes' unique capabilities combined with exceptional signal acquisition performance and analysis accelerate your measurement tasks.
MSO73304DX Product Highlights
- Up to 33 GHz analog bandwidth and rise time as fast as 9 ps. Enables measurement on the latest high-speed serial standards
- True 33 GHz Real-time Analog Bandwidth on 2 Channels with 33 GHz models
- Industry-leading sample rate and timing resolution
- 100 GS/s on 2 Channels (33, 25, 23, 20, 16, and 12.5 GHz models)
- Four-channel Simultaneous Performance
- Up to 23 GHz Bandwidth
- Up to 50 GS/s Real-time Sample Rate
- Up to 500 Megasample Record Length with MultiView Zoom for quick navigation
- Fastest Waveform Capture Rate with >300,000 wfms/s maximum per channel
- 16 Logic Channels with 80 ps Timing Resolution for Debug of digital and analog signals (MSO70000 Series only, including MSO73304DX)
- Unique iCapture capability enables viewing analog characteristics of digital channels with single probe connection
- 6.25 Gb/s Real-time Serial Trigger. Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects
- Application Support for High-speed Serial Industry Standards, wideband RF, Power supplies, and memory. Enables standard-specific certification, measurement automation, and ease of use
Tektronix & TRS-RenTelco
TRS-RenTelco is a proud partner of Tektronix and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Tektronix allows us to ensure we have the right Oscilloscopes solution for your job.
Renting Oscilloscopes
With TRS-RenTelco renting Oscilloscopes equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Tektronix.
- Configurations
- Resources
- FAQsAI
--, DSA, VET
See Configuration Details
-
DSA
DPO 5XL, ASM,SR810B,DJA,STU,SR810B,ST,PTD,MTH,SR CUST,SR-EMBD
-
VET
Visual Trigger and Search
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Kit Wrist Strap
Qty: 1 -
Probe Tip (Set Of 10)
Qty: 1 -
Adapter TCA-BNC
Qty: 1 -
Adapter VGA - DVI Display
Qty: 1 -
Tips Extension Ground (kit of 20)
Qty: 1 -
Ground Lead 3 in
Qty: 8 -
Ground Lead 8 in
Qty: 2 -
Case Pelican Transit
Qty: 1 -
IC Grabber
Qty: 20 -
Holder Probe Tip
Qty: 2 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Mouse Optical
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
Cover Front
Qty: 1 -
Fixture Customer Deskew
Qty: 1 -
Adapter TCA-292D
Qty: 4 -

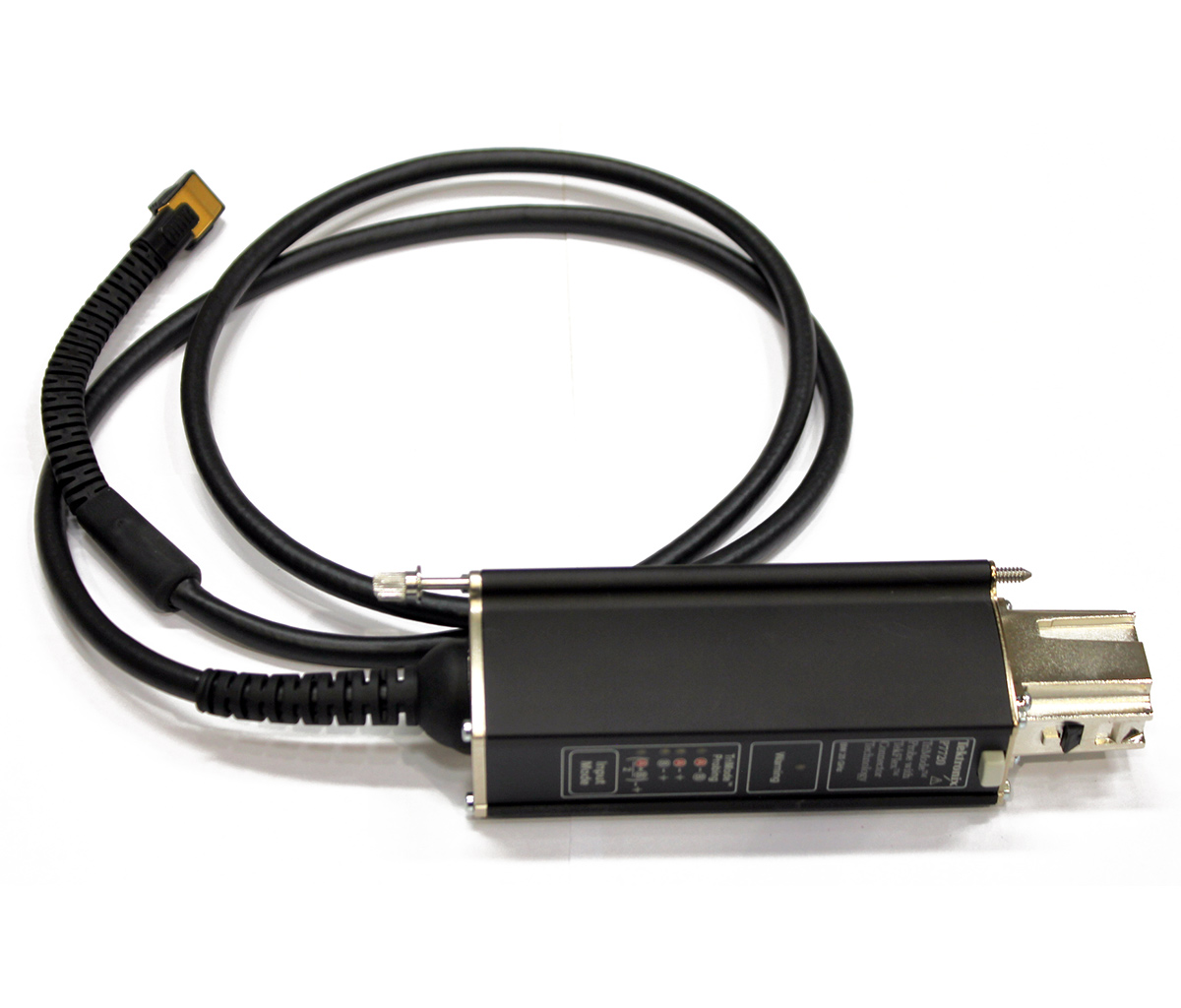

Probe with Accessory Kit
Qty: 1 -
Case Accessory Plastic
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Cable USB-A - USB-B
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, DSA, ERRDT
See Configuration Details
-
DSA
DPO 5XL, ASM,SR810B,DJA,STU,SR810B,ST,PTD,MTH,SR CUST,SR-EMBD
-
ERRDT
Frame and Bit Error Rate Detector for High Speed Serial Stds (requires ST6G)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Kit Wrist Strap
Qty: 1 -
Probe Tip (Set Of 10)
Qty: 1 -
Adapter TCA-BNC
Qty: 1 -
Adapter VGA - DVI Display
Qty: 1 -
Tips Extension Ground (kit of 20)
Qty: 1 -
Ground Lead 3 in
Qty: 8 -
Ground Lead 8 in
Qty: 2 -
Case Pelican Transit
Qty: 1 -
IC Grabber
Qty: 20 -
Holder Probe Tip
Qty: 2 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Mouse Optical
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
Cover Front
Qty: 1 -
Fixture Customer Deskew
Qty: 1 -
Adapter TCA-292D
Qty: 4 -
Probe with Accessory Kit
Qty: 1 -
Case Accessory Plastic
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Cable USB-A - USB-B
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 50XL
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Tips Extension Ground (kit of 20)
Qty: 1 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Cable USB-A - USB-B
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 01, 02, 03, 04, 50XL
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Tips Extension Ground (kit of 20)
Qty: 1 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Cable USB-A - USB-B
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, ERRDT, MSO
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Tips Extension Ground (kit of 20)
Qty: 1 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Cable USB-A - USB-B
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 20XL, DSA, ET3, PCE
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Tips Extension Ground (kit of 20)
Qty: 1 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Cable USB-A - USB-B
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 20XL, ET3, PCE
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Tips Extension Ground (kit of 20)
Qty: 1 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Cable USB-A - USB-B
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 100G-TXE, 10G-KR, DSA, VET
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Tips Extension Ground (kit of 20)
Qty: 1 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Cable USB-A - USB-B
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 01, 02, 03, 04
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Tips Extension Ground (kit of 20)
Qty: 1 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Cable USB-A - USB-B
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, DSA
See Configuration Details
-
DSA
DPO 5XL, ASM,SR810B,DJA,STU,SR810B,ST,PTD,MTH,SR CUST,SR-EMBD
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Kit Wrist Strap
Qty: 1 -
Adapter VGA - DVI Display
Qty: 1 -
Tips Extension Ground (kit of 20)
Qty: 1 -
Ground Lead 3 in
Qty: 8 -
Ground Lead 8 in
Qty: 2 -
Fixture Customer Deskew
Qty: 1 -
Probe Tip (Set Of 10)
Qty: 1 -
Cover Front
Qty: 1 -
IC Grabber
Qty: 20 -
Holder Probe Tip
Qty: 2 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Case Pelican Transit
Qty: 1 -
Probe with Accessory Kit
Qty: 1 -
Case Accessory Plastic
Qty: 1 -
Adapter TCA-292D
Qty: 4 -
Adapter TCA-BNC
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
Mouse Optical
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Cable USB-A - USB-B
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Tektronix MSO70000DX Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Tektronix MSO73304DX?
The Tektronix MSO73304DX is a 33 GHz mixed signal oscilloscope from the MSO/DPO70000 Series, designed for high-speed serial data analysis, signal integrity, and certification testing. It offers 4 analog channels and 16 digital logic channels with a real-time sample rate of up to 100 GS/s on 2 channels, making it ideal for validating the latest high-speed serial standards.
What are the bandwidth and sample rate specifications of the MSO73304DX?
The MSO73304DX provides 33 GHz analog bandwidth on 2 channels with DSP-enhanced bandwidth, and 23 GHz on all 4 channels simultaneously. It delivers a real-time sample rate of 100 GS/s on 2 channels and 50 GS/s on all 4 analog channels, with 10 ps timing resolution at the maximum sample rate.
What is the record length of the MSO73304DX and what memory options are available?
The MSO73304DX comes standard with 62 Mpoints of record length per channel. Optional memory upgrades extend this to 125 Mpoints (Option 10XL), 250 Mpoints (Option 20XL), or up to 500 Mpoints on 4 channels and 1 Gpoint on 2 channels with Option 50XL, enabling extended-duration waveform capture at high resolution.
What triggering capabilities does the MSO73304DX offer?
The MSO73304DX features the Tektronix Pinpoint trigger system with over 1400 trigger combinations, including edge, glitch, width, runt, timeout, transition time, logic pattern, logic state, setup/hold, and window triggers. It also includes Visual Trigger with up to 8 geometric areas for precise event isolation, and serial pattern triggering for NRZ and 8b/10b-encoded data at rates up to 6.25 Gb/s.
What protocol decode options are supported on the MSO73304DX?
The MSO73304DX supports serial bus decoding for I2C, SPI, RS-232/422/485/UART, USB, CAN, LIN, FlexRay, MIL-STD-1553B, and MIPI D-PHY, C-PHY, and M-PHY protocols. It also provides 8b/10b serial pattern triggering and protocol decode for high-speed serial buses such as PCI Express Gen 1/2/3, enabling decoded data to be displayed in protocol-aware views.
What applications is the MSO73304DX best suited for?
The MSO73304DX excels in design verification including signal integrity, jitter, and timing analysis, as well as certification testing for high-speed serial standards like PCI Express, USB 3.0, SATA, HDMI, DisplayPort, and Ethernet. It is also well-suited for DDR memory bus analysis, spectral analysis of wideband RF signals, and power supply verification.
What waveform capture rate does the MSO73304DX achieve?
The MSO73304DX achieves a sustained waveform capture rate of more than 300,000 waveforms per second on all four channels simultaneously using the proprietary DPX FastAcq acquisition technology. This high capture rate dramatically increases the probability of discovering infrequent fault events such as glitches, runt pulses, and timing anomalies.
What jitter analysis and signal fidelity features are included with the MSO73304DX?
The MSO73304DX comes standard with DPOJET Advanced Jitter and Eye Diagram measurement software for comprehensive jitter analysis, timing measurements, and jitter decomposition including Random, Deterministic, and Bounded Uncorrelated Jitter separation. It offers a jitter noise floor of less than 325 fs (typical), passband flatness of plus/minus 0.5 dB to 50% of nominal bandwidth, and 8-bit vertical resolution with up to 11-bit resolution using averaging.
