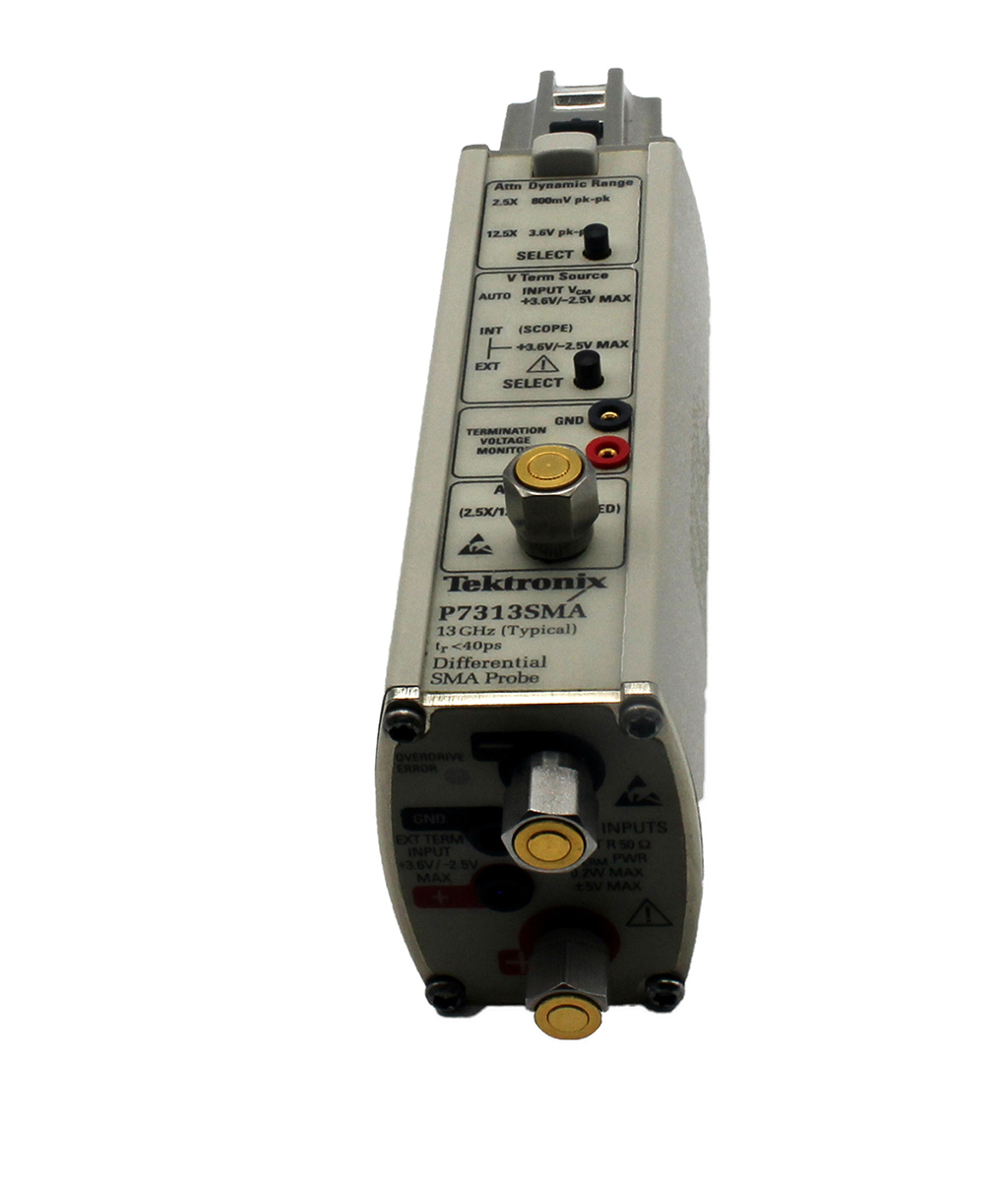

Tektronix P7313SMA
13GHz Differential SMA Probe
The Tektronix P7313SMA is a differential input probe for Tektronix real-time oscilloscopes. The P7313SMA provides a high fidelity differential input connection with low noise. Created for the purpose of measuring differential signals in 50 O signaling environments, the P7313SMA provides its user with the ability to measure high-speed differential signals on each channel of a multiple-channel oscilloscope.
Features & Benefits:
- >13.0 GHz Bandwidth (Typical)
- 50Ohm Termination Network, Differential SMA Inputs
- Industry Leading Differential Return Loss and VSWR
- High Bandwidth Differential Amplifier with excellent CMRR
- Internal Termination Voltage Generator controlled by Internal by Oscilloscope
- External Source, or Automatically by the probe
- Phase Matched SMA Cables (38 inch length <1ps skew) with Cable Loss Compensation
- Switchable Gain for extended dynamic range
- Auxiliary (inverted) output for use with Spectrum Analyzers, Network Analyzers, or as a clock recovery trigger source
- TekConnect Interface
If you are looking for a new or well-maintained used Tektronix P7313SMA Differential SMA Probe for rent or purchase, contact us or request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Kit Wrist Strap
Qty: 1 -
Adapter SMA(f) - BNC(m)
Qty: 1 -
Short 3.5 mm(f)
Qty: 1 -
Termination 50 Ohm SMA
Qty: 3 -
Cable Set Duel SMA
Qty: 1 -
Cable Banana Plug - 0.080 Pin Red
Qty: 1 -
Plug Cable 0.080 in Pin - Banana
Qty: 1 -
Adapter Pin Jack 0.080 in - 0.040 in
Qty: 2 -
Carry Pouch
Qty: 1 -
CD Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Tektronix P7313SMA Spec Sheet
