Tektronix P7516
16 GHz TriMode Probe

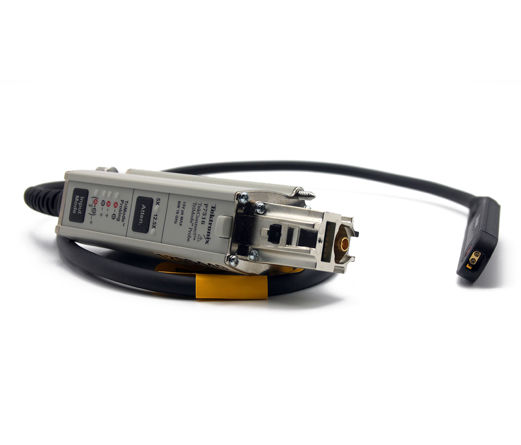

The Tektronix P7516 is a probe set that became an industry benchmark for next-generation signal fidelity and usability. The P7516 comes with Tektronix's 'TriMode? Probing' that lets users switch between differential, common mode and single ended measurements without needing to move the probe from its connection points. Take a look at all the functionalities this probe offers.
Features & Benefits of Tektronix P7516:
- TriMode - One Setup, Three Measurements Without Adjusting Probe Tip Connections
- Differential
- Single-ended
- Common Mode (Requires only One Probe vs. Conventional Probing Techniques) Signal Fidelity
- Bandwidth: >16 GHz (typical)
- Risetime 10% - 90%: <32 ps (typical)
- Risetime 20% - 80%: <24 ps (typical) Versatile Connectivity - Solderdown, Hand-Held, Fixtured
- TriMode Solder Down -- Small Form Factor Allowing Easy Access Between PCB's -- Long Reach Accessibility with Superior Signal Fidelity (See P75TLRST)
- Precision Differential Probing Module - Optional Hand-held and Fixtured Probing (See P75PDPM) -- Small
- PrecisionTapered Tips, an Articulated Joint for Compliance, and Variable Tip Spacing TekConnect Interface - TekConnect Scope/Probe Control and Usability * Direct Control from Probe Compensation Box or From Scope Menu
- Automated Measurement Control through the TekConnect Interface to Connect to Tektronix Real Time Oscilloscopes
- View TriMode/Attentuation Settings on Probe Comp Box from Top or End Panel Applications
- Examples Include, But Are Not Limited to: -- PCI-Express II, Serial ATA III, DDRII, FB-DIMM, Rambus, XAUI, 2XAUI
