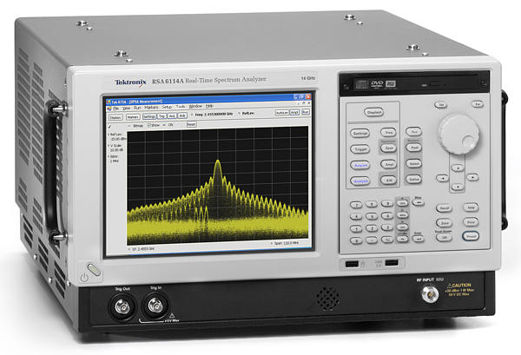

Tektronix RSA6114A

14 GHz Real Time Spectrum Analyzer, Type N (f)

The Tektronix RSA6114A is a spectrum analyzer that offers a frequency range of 9 kHz to 14 GHz and a center frequency setting among other features. Here is a detailed look at what the RSA6114A has to offer.

Key features of the Tektronix RSA6114A:

  • Discover – revolutionary DPX displays transients as short as 24 micros with 100% probability of intercept
  • DPX spectrum processing provides an intuitive understanding of time-varying RF signals with color graded displays based on frequency of occurrence trigger
  • Tektronix exclusive 40 MHz and 110 MHz frequency mask triggers (FMT) offer easy event-based capture of - transient RF signals by triggering on any change in the frequency domain
  • Power trigger provides high resolution trigger on time domain events
  • 2 external triggers provide flexible control of triggering from ate and other system equipment capture
  • All signals in up to 110 MHz spans are captured into memory
  • Up to 1.7 s acquisition length at 110 MHz bandwidth provides complete analysis over time without making multiple acquisitions
  • 6.2 GHz and 14 GHz models available analyze
  • Extensive time-correlated multi-domain displays connect problems in time, frequency, phase and amplitude for quicker understanding of cause and effect when troubleshooting
  • All functions are easily accessible via the windows interface. use the front panel, keyboard, touch screen or mouse, whatever you prefer
  • Power measurements and signal statistics help you characterize components and systems: ACLR, multi-carrier ACLR, power vs. time, CCDF
  • Advanced measurement suite (opt. 20)
  • Pulse measurements including rise time, pulse width and pulse-to-pulse phase provide deep insight into pulse train behavior
  • General purpose digital modulation analysis (opt. 21) provides vector signal analyzer functionality

Rent or buy the Tektronix RSA6114A Spe

Read More
  • Configurations
  • Resources
--, 01, 02, 05, 07, 110, 20, 21
See Configuration Details
  • 01

    Internal Pre-amp (3 GHz)

  • 02

    Frequency Mask / Memory 1GB

  • 05

    500 MHz IF, Digital IQ Output

  • 07


  • 110

    110 MHz Capture Bandwidth

  • 20

    Advanced Signal Analysis

  • 21

    GP Modulation Analysis
