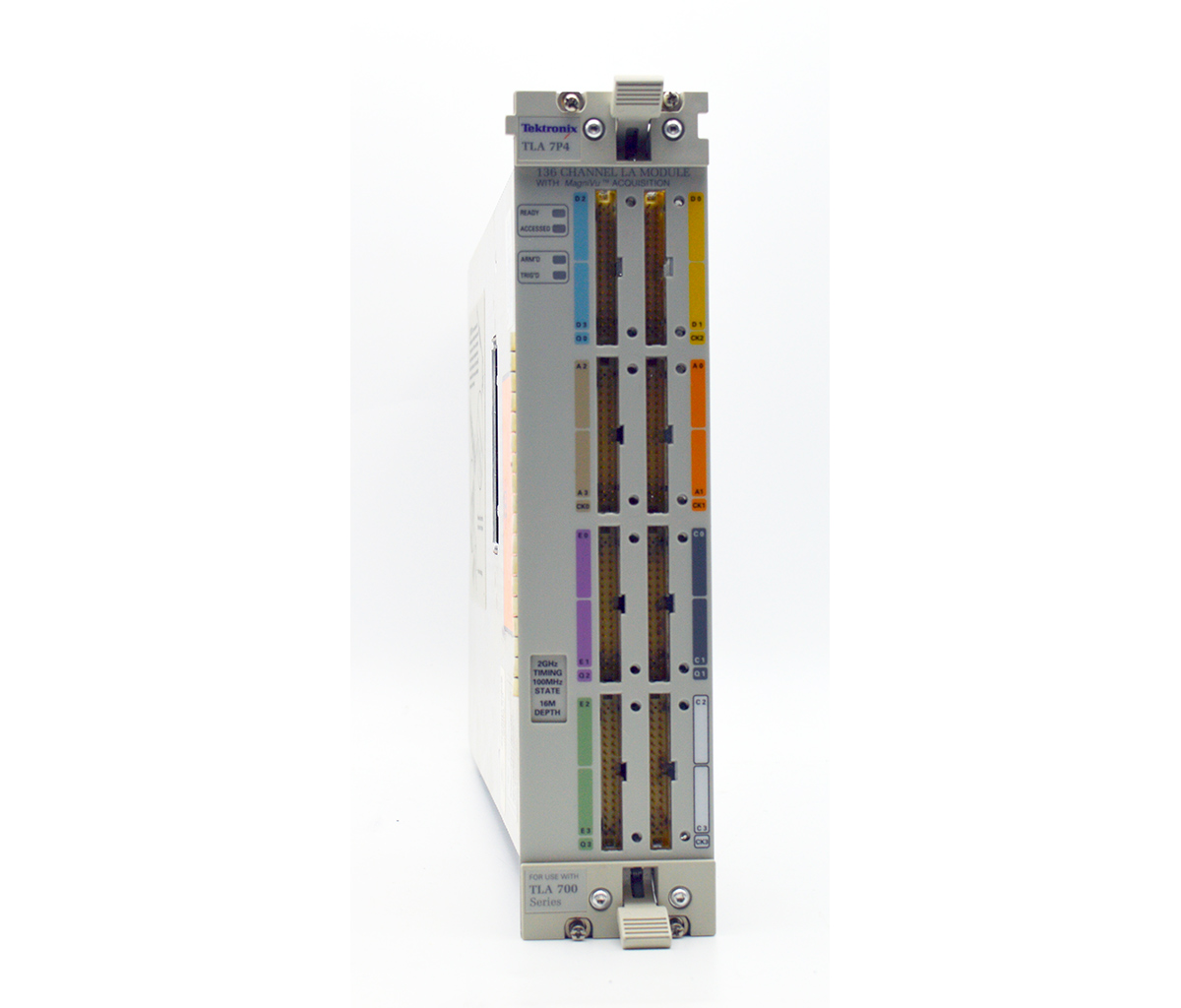

Tektronix TLA7P4

136 Channel Logic Analyzer Module

Capture and display signals from digital systems or circuits with the Tektronix TLA7P4 136 Channel Logic Analyzer Module.

Measure data from state machine tracing, protocol decoding, and timing diagrams using the TLA7P4. Analyze the timing relationship between multiple signals, perform effective and accurate signal monitoring.

Tektronix TLA7P4 Features and Specifications:

  • Number of channels: 136
  • Number of data channels: 128
  • Number of clock channels: 4
  • Number of qualifier channels: 4
  • Conventional Timing 250 MHz
  • Memory/Channel 16 Mbits
  • 100 MHz state
  • 2 GHz timing card
  • Typical data rate 400 MHz (half channel)

Rent or lease the Tektronix TLA7P4 136 Channel Logic Analyzer Module at TRS-RenTelco with 24/7 support. Contact us to know more or request a quote.

Read More
  • Configurations
  • Resources
--, 3P
See Configuration Details
  • 3P

    Add P6417 Probe; 8 Ea P6417

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Grabber

    Qty: 160
  • Probe Assembly 8-Channel

    Qty: 16
  • Label Set P6417 Probe ID

    Qty: 1
  • Cable Assembly Probe

    Qty: 8
  • Manual Instruction

    Qty: 1
  • Bracket Support

    Qty: 8
  • Lead Set 1 Channel

    Qty: 8
  • Manual User

    Qty: 1
