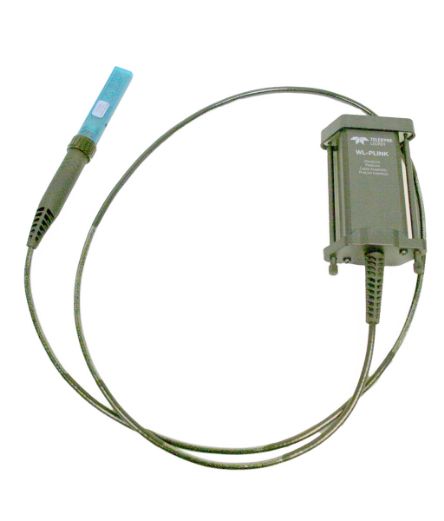

Teledyne LeCroy D1330-PS
13 GHz Complete Probe System with Dxx30-SI Solder-In Tip (Qt
Make measurements on a wide variety of differential and single-ended signals, for widely varying signal swings and large amounts of overshoot with the Teledyne LeCroy D1330-PS WaveLink differential probe.
This probe is an excellent choice for high-speed DDR signals and helps provide the best signal fidelity.
The D1330-PS is a high-performance probing solution with high-input dynamic and offset range capabilities.
This differential probe has two solder-in (SI) tips or interconnect leads, with the smallest tip size and high-level electrical performance. It also has one square pin (SP) interconnect for IC characterization boards and other applications.
Teledyne LeCroy D1330-PS Features and Specifications:
- 3.5 Vpk-pk dynamic range
- Plus/Minus 4 V offset range
- Ideal for DDR3, DDR4, LPDDR3
- Tips for this product: - Solder-in (SI) lead (Qty. two) - Square pin (SP) lead (Qty. one)
- High DC impedance
- Placing the probe will not change local ground variation
- No distortion of measured signals due to variation
The Teledyne LeCroy D1330-PS is available for rent or lease at TRS-RenTelco with 24/7 365-day technical support. Request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Grabber
Qty: 1 -
Lead Short Single
Qty: 1 -
Holder Probe
Qty: 1 -
Characterization Fixture
Qty: 1 -
Mounting Kit
Qty: 1 -
Wrist Strap
Qty: 1 -
Positioner XYZ
Qty: 1 -
Wand Handheld for Browser Tip
Qty: 1 -
Connection Guides Set Of 20
Qty: 1 -
Adhesive Pads (Set Of 10)
Qty: 1 -
Vial with 2 Pogo Pins and 2 Sockets
Qty: 1 -
Interlock Kit
Qty: 1 -
Interconnect Swivel
Qty: 1 -
Square Pin Lead Replacement
Qty: 1 -
Manual Dxx30-PT
Qty: 1 -
Manual Operator
Qty: 1 -
Probe 13 GHz
Qty: 1 -
Cable Assembly WaveLink Prolink Platform
Qty: 1 -
Positioner Tip Replacement
Qty: 1
