Teledyne LeCroy LABMASTER10-65ZI

65 GHz, 160 GS/s, 2ch, LabMaster Slave Acquisition Module

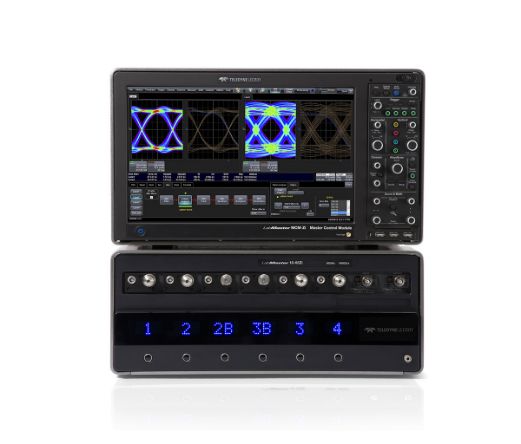

The Teledyne LeCroy LABMASTER10-65Zi is a slave acquisition module and real-time oscilloscope with a very large operational bandwidth. The LABMASTER 10 Zi Acquisition Modules are tightly integrated to the Master with the ChannelSync 10 GHz distributed clock and a multi-lane PCI Express connection - From 1 to 20 Acquisition Modules can be configured with a single Master. All acquired data is sent to the server-class CPU for processing. Lighted channel indicators intelligently and dynamically indicate the input channel assignments, depending on the operator setup.

Key specifications of the Teledyne LeCroy LABMASTER10-65Zi include:

  • Bandwidth: 20 ? 100 GHz
  • Memory: 20 ? 1024 Mpts
  • No. of Input Channels: 4 ? 80
  • Max. Sampling Rate: 240 Giga Samples/sec
  • Resolution: 8-bit
  • Vertical Noise Floor: 4.3 mV RMS
  • Sensitivity: 50 ohm

Get the Teledyne LeCroy LABMASTER10-65Zi slave acquisition module and real-time oscilloscope for rent or for purchase from TRS-RenTelco with our 365-day, 24/7 customer support. We have an experienced team of metrologists and technicians that calibrates every product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us and request a quote today.

Read More
  • Configurations
  • Resources
--, 14GBIT, T5
See Configuration Details
  • 14GBIT

    80-Bit Nrz And 8b/10b Serial Trigger (Up To 14.1 Gb/S). Also Includes 8b/10b Decode.

  • T5

    5 Year Warranty

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Connector Planar Crown 2.92 mm

    Qty: 4
  • Cable Assembly PCIE 4x

    Qty: 1
  • Cable Assembly PCIE 8x

    Qty: 1
  • Power Cord Heavy Duty

    Qty: 1
  • Cable Stormflex 141 SMA(m) - SMA(m)

    Qty: 1
  • Accessory Kit Standard High Bandwidth

    Qty: 1
