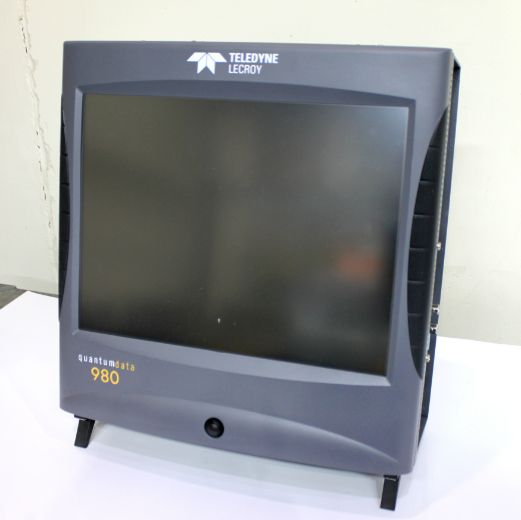

Teledyne LeCroy QD-980B
Quantumdata 980 HDMI Protocol Analyzer
Easily accommodate up to four 980 series modules with the Teledyne LeCroy QD-980B Quantumdata 980 HDMI protocol analyzer module.
This protocol analyzer/generator module is ideal for HDMI testing of formats up to 8K formats at 1485 MHz pixel rates, deep analysis of HDMI and MHL streams, as well as HDMI and MHL compliance testing for source, sink, repeater/dongle devices.
Teledyne LeCroy QD-980B - Features and Specifications:
- Configurable with up to 4 modules
- Current modules:
- 980 HDMI 1.4 Protocol Analyzer module (p/n 95-00083)
- 980 HDMI 2.1 Protocol Analyzer/Video Generator module (p/n 95-00156)
- 980 HDMI 2.0 Video Generator module (p/n 95-00130)
- 980 HDMI 2.0 Protocol Analyzer/Generator module (p/n 95-00137)
- 980 DP 1.4 Video Generator/Analyzer module (p/n 95-00151)
- 980 DP 1.2 Video Generator/Analyzer module (p/n 95-00103)
- 980 HDMI Phy & Protocol Aux Channel Analyzer module
- 980 MHL CBUS Compliance Test module (p/n 95-00099)
- Embedded display: 15%22 diagonal
- Resolution: 1024(H); x 768 (V); 24 bit RGB color
- Power: 90-264 VAC, 47-63Hz
- Command line control: Ethernet (RJ-45) for external GUI and telnet
The Teledyne LeCroy QD-980B Quantumdata 980 HDMI protocol analyzer is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.
- Configurations
- Resources
00-00231, 95-00103, 95-00104, 95-00105, 95-00106, 95-00132, 95-00133, 95-00136
See Configuration Details
-
95-00105
DP 1.2 Basic Video Analyzer Software
-
00-00231
(980B Base Model Unit)
-
95-00103
DP 1.2 Hardware Module
-
95-00104
DP 1.2 Video Generator Software
-
95-00106
DP 1.2 Auxiliary Channel Analyzer Software
-
95-00132
DisplayPort 1.2 & 1.4 Capture / Deep Protocol Analysis
-
95-00133
DisplayPort 1.2 Hdcp2 Src,Sink,Repeater Emulators
-
95-00136
DisplayPort CT Package 1
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Manual Quick Start Guide
Qty: 1 -
Stylus
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
00-00231, 00062, 00074, 00083, 00090
See Configuration Details
-
00083
(HDMI 1.4 Analyzer)
-
00-00231
(980B Base Model Unit)
-
00062
(HDMI CTS 1.4b Source Compliance Test)
-
00074
(HDMI CTS 1.4b Sink Compliance Test)
-
00090
(HDMI HDCP CTS 1.2 Source Compliance Test)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Manual Quick Start Guide
Qty: 1 -
Stylus
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
00-00231, 95-00128, 95-00130, 95-00137, 95-00138, 95-00147, 95-00148
See Configuration Details
-
95-00138
HDMI 2.0 Protocol Analyzer Capture and Store
-
00-00231
(980B Base Model Unit)
-
95-00128
HDMI 980 Precision ACA Module
-
95-00130
HDMI 2.0 Video Generator Module
-
95-00137
HDMI 2.0 Protocol Analyzer Module
-
95-00147
HDR LAB - HDR Test Patterns/MetaData Receiver Test (Requires 95-00130)
-
95-00148
DolbyVision Test - Sink Test (Requires 95-00130)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Manual Quick Start Guide
Qty: 1 -
Stylus
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
**, 95-00156, 95-00157, 95-00158, 95-00174, 95-00175
See Configuration Details
-
95-00175
HDMI 2.1 FRL SINK Compliance
-
**
980B Base Model Unit 980B Base Model Unit
-
95-00156
980 48G Protocol Analyzer/Generator
-
95-00157
HDMI 2.1 Analyzer LIC LINK and FEC
-
95-00158
HDMI 2.1 Video GEN TMDS,FRL,FEC
-
95-00174
HDMI 2.1 FRL SOURCE Compliance
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Mouse Optical
Qty: 1 -
Manual Quick Start Guide
Qty: 1 -
Cable Black HDMI - HDMI 2 m
Qty: 1 -
Stylus
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
00-00231, 95-00132, 95-00152, 95-00154, 95-00155, 95-00163, 95-00179, 95-00184, 95-00187, 95-00188
See Configuration Details
-
95-00184
DP 1.4 / USB-C / eDP Generator/Analyzer Module: DP Connectors Enabled
-
00-00231
(980B Base Model Unit)
-
95-00132
DisplayPort 1.2 & 1.4 Capture / Deep Protocol Analysis
-
95-00152
980 DP 1.4 Passive Aux Channel Monitoring
-
95-00154
980 DP 1.4 Video Generator Function
-
95-00155
DP 1.4 Basic (Real Time) Video Analyzer License
-
95-00187
980 DP Upgrade 95-00184 to Enable DP Alt Mode over
-
95-00188
Embedded DisplayPort (eDP) Option Embedded DisplayPort (eDP) Option
-
95-00163
980 DP 1.4 DSC Source Analysis Functional Test (re
-
95-00179
980 DP 1.4 DSC Sink Functional Testing
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Mouse Optical
Qty: 1 -
Manual Quick Start Guide
Qty: 1 -
Cable Display Port
Qty: 1 -
Cable USB C to C
Qty: 1 -
Cable DP Auxiliary 1.5 mm
Qty: 1 -
Stylus
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Teledyne LeCroy Protocol Analyzers QD-980B Spec Sheet
