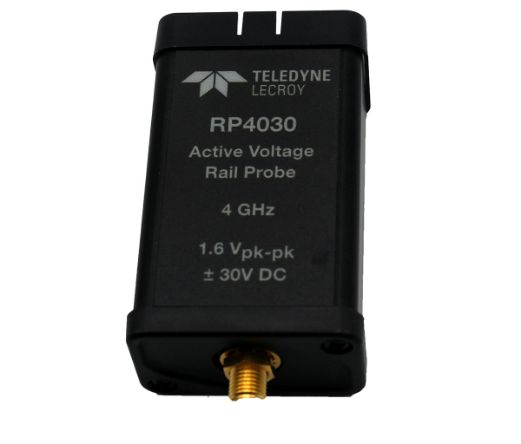

Teledyne LeCroy RP4030
Power/Voltage Rail Probe. 4 GHz bandwidth,
Get a noise-free view of small signal variations with high oscilloscope gain (sensitivity), with the Teledyne LeCroy RP4030 power/voltage rail probe.
The RP4030 features large built-in offset and low attenuation (noise) that allow the voltage/power rail to be offset by the oscilloscope's mean DC voltage, and high DC input impedance that eliminates loading of the DC rail. The probe's high DC input impedance provides highly accurate measurements and greater signal fidelity. This power/voltage rail probe includes solder-in and coaxial cables with MCX and U.FL PCB receptacle mounts.
Teledyne LeCroy RP4030 - Features and Specifications:
- Bandwidth: 4 GHz
- Offset capability: plus/- 30V
- Dynamic range: plus/- 800mV
- Rise time (10-90%) 110 ps (typical)
- Input capacitance 0.1 uF (in series with 50 ohms)
- Input impedance: 50 k ohms DC
- Attenuation: 1.2x
- Noise: ~5% additive to oscilloscope noise
- Oscilloscope interface: Teledyne LeCroy ProBus
- MCX terminated cable with a wide variety of connections:
- Solder-in (4 GHz)
- Coaxial Cable to U.FL receptacle (3 GHz)
- MCX PCB Mount (4 GHz)
- Browser (350 MHz)
Rent or lease the Teledyne LeCroy RP4030 power/voltage rail probe at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Case Soft
Qty: 1 -
Manual Operator
Qty: 1 -
Cable Extension SMA(m) - MCX 0.9 m
Qty: 1 -
Lead Solder-In MCX 18 cm 3 GHz
Qty: 3 -
PCB Mount Receptacles MCX 6 mm by 6 mm
Qty: 3 -
PCB Mounts U.FL 3 mm - 3 mm
Qty: 5 -
Cable Coaxial Ultra-Miniature MCX - U.FL 8 cm 3 GHz
Qty: 3 -
Adapter SMA(m) - MCX
Qty: 1
