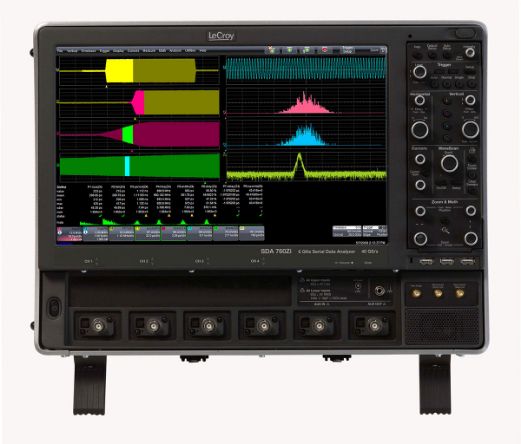

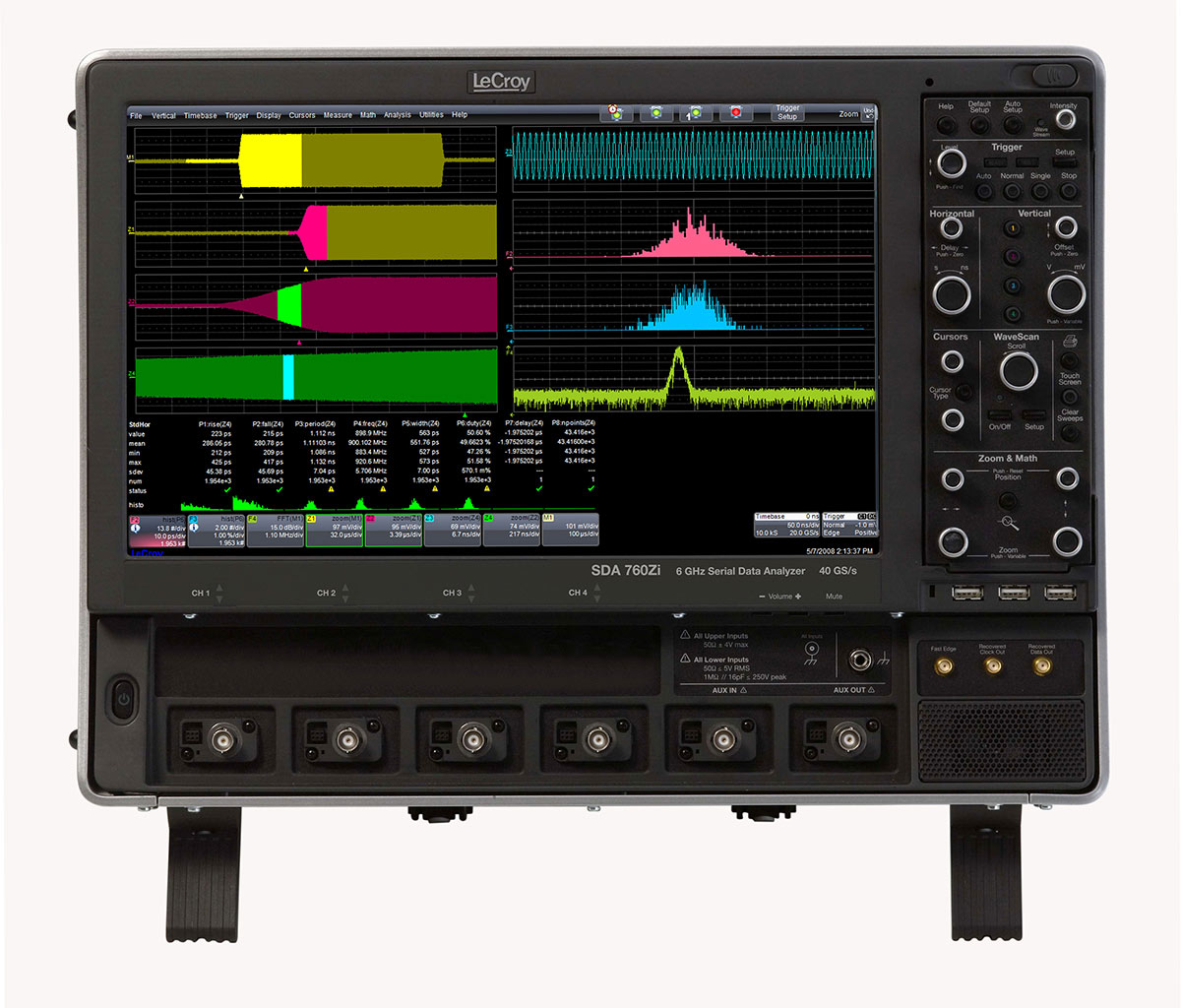

Teledyne LeCroy SDA-760ZI

4 channel 6 GHz Oscilloscope
SDA 7 Zi Serial Data Analyzers are based on the WavePro 7 Zi Series oscilloscope and are equipped with double the standard memory to capture more unit intervals in the eye diagram. They include an enhanced high-speed serial pattern trigger that operates on up to 80 bit patterns and at speeds up to 2.7 Gb/s. Whether debugging eye pattern failures, or other compliance test failures, the SDA Series has easily accessible tools that rapidly isolate the source of the problem in your design. - LeCroy's unique summary view displays the Eye Pattern, TIE, Bathtub Curve and Jitter Histogram all on the screen at the same time - Cable De-Embedding feature permits SDA tools to be used as if the cables were not in the system - Serial data compliance testing; Ethernet, USB 2.0, HDMI 1.2, PCI Express (2.5 GT/s), Serial ATA (1.5 Gb/s), UWB
Read More
  • Configurations
  • Resources
CANbus TDM, DFP2, DMOD, EYEDR, FlexRayTDP, I2Cbus TD, JTA2, L-128, MS-500, QPHY-ENET, QPHY-PCIe, QPHY-SATA, QPHY-USB, QPHY-UWB, SPECTRUM, XDEV
See Configuration Details
  • CANbus TDM

    CAN Bus Trigger, Decode, And Measure Option

  • DFP2

    Digital Filter Software Package

  • DMOD

    Demodulation Software Package

  • EYEDR

    Eye Doctor (Virtual Probe And Equalizer Emulation Bundle)

  • FlexRayTDP

    FlexRay Bus Trigger, Decode, And Physical Layer Test Option

  • I2Cbus TD

    I2C Bus Trigger & Decode Option

  • JTA2

    JTA2 Jitter Option

  • L-128

    128 Mpt/ch (256 Mpt/ch Interleaved) Memory Option

  • QPHY-ENET

    QualiPhy Ethernet Compliance Test Script

  • QPHY-PCIe

    QualiPhy PCIe Compliance Test Script (for Gen1)

  • QPHY-SATA

    QualiPhy Sata Compliance Test Script (Gen1 And Gen2)

  • QPHY-USB

    QualiPhy Compatible USB Software Option

  • QPHY-UWB

    QualiPhy UWB Compliance Test Script

  • SPECTRUM

    Spectrum Analyzer And Advanced FFT Option For Wavemaster 8 Zi Series

  • MS-500

    500 MHz, 18 Channels, 2 GS/s, 50 Mpts/ch Mixed Signal Oscilloscope Option

  • XDEV

    Developer's Tool Kit Option

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • CD Operator Manual

    Qty: 1
  • Cover Front

    Qty: 1
  • Connector SMA

    Qty: 4
  • Sprung Hook

    Qty: 4
  • Adjustment Tool

    Qty: 2
  • Tip Rigid 0.5 mm

    Qty: 4
  • Spring Tip 0.5 mm

    Qty: 4
  • Insulating Cap

    Qty: 4
  • IC Cap 0.5 mm Pitch Green

    Qty: 2
  • IC Cap 0.65 mm Pitch Blue

    Qty: 2
  • IC Cap 0.8 mm Pitch Gray

    Qty: 2
  • IC Cap 1.0 mm Pitch Brown

    Qty: 2
  • IC Cap 1.27 mm Pitch Black

    Qty: 2
  • Ground Spring 2.5 mm

    Qty: 4
  • Ground Blade

    Qty: 4
  • Rings Color Coded

    Qty: 2
  • Adapter PCB

    Qty: 4
  • Copper Pad

    Qty: 4
  • Ground Lead

    Qty: 4
  • Instruction Manual PP007

    Qty: 1
  • Probe

    Qty: 4
  • Cable USB-A - USB-MiniB

    Qty: 1
  • Pouch

    Qty: 1
  • Mouse Optical

    Qty: 1
  • CD Getting Started Manual WavePro 7 ZI

    Qty: 1
