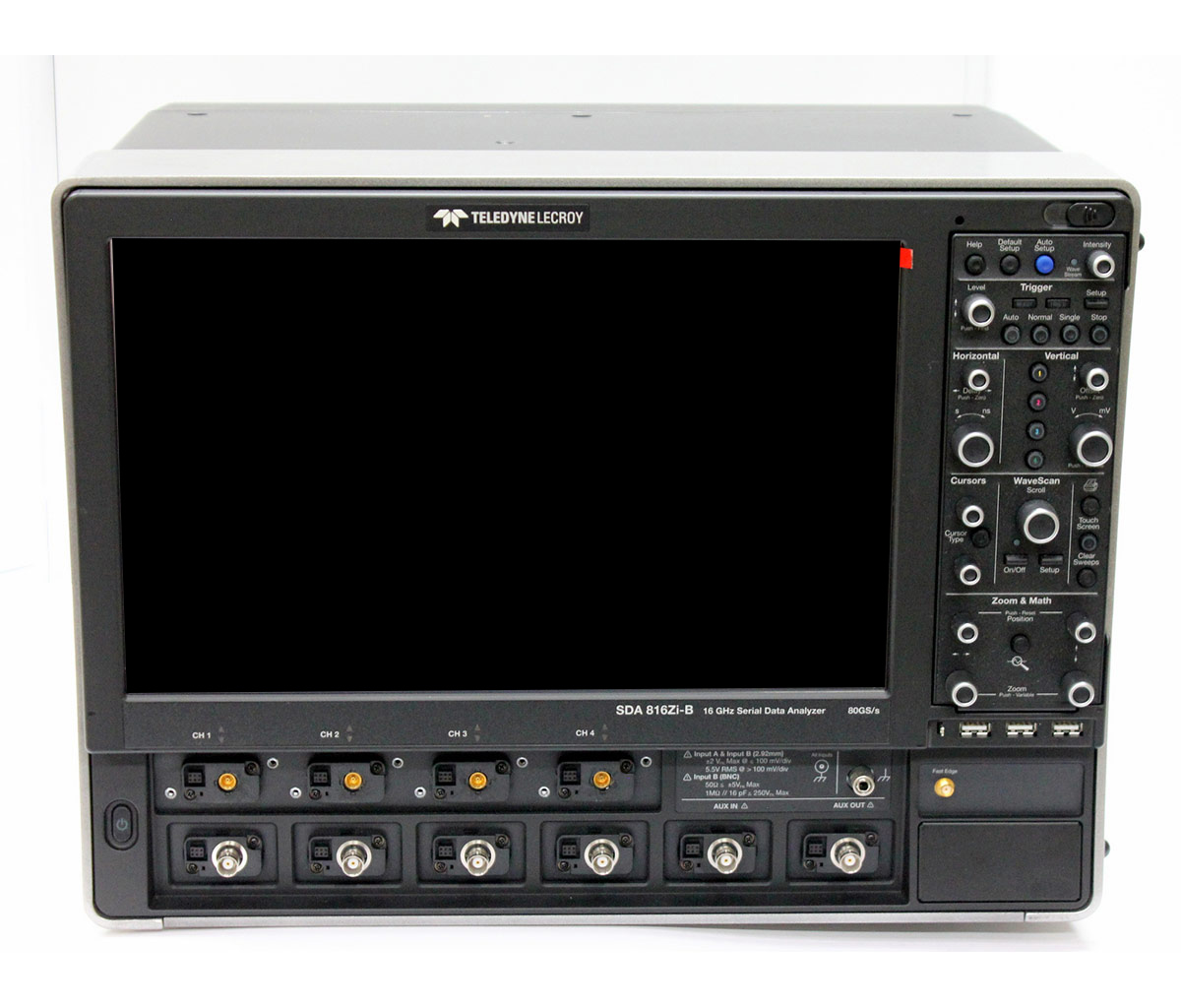

Teledyne LeCroy SDA-816ZI-B

4 Ch 16 GHz Serial Data Analyzer

The Teledyne LeCroy SDA-816Zi-B serial data analyzer combines the performance, signal fidelity and features needed for today's high-speed measurements with the ease of use of a standard benchtop oscilloscope.

With up to 30 GHz bandwidth, 80 GS/s sample rate, extremely stable timebase and a 14.1 Gb/s serial trigger, the SDA-816Zi-B showcases exceptional hardware performance to capture today's high-speed signals. The MAUI user interface, high-resolution touchscreen, flat menu structure and sophisticated multi-grid displays are the revolutionary usability factors the Teledyne LeCroy SDA-816Zi-B.

Featuring the highest-speed serial data triggers, the only complete multi-lane serial data analysis and eye diagram solution, and the most comprehensive set of compliance packages, the SDA-816Zi-B simplifies the most complex testing. Teledyne LeCroy's QualiPHY software makes it easy to perform automated compliance tests and get comprehensive test reports on a wide range of serial standards.

Teledyne LeCroy SDA-816Zi-B - Features and Specifications:

  • Up to 30 GHz bandwidth and 80 GS/s sample rate
  • Highly advanced oscilloscope user interface
  • 14.1 Gb/s serial trigger - the industry's only true hardware
  • 15.3%22 WXGA Color Display
  • Low jitter measurement floor and exceptional timebase stability
  • Serial data analysis, debug, validation and compliance tools
  • Integrated 50 O and 1 MO inputs for true connection and probing flexibility
  • Unsurpassed analysis capability with integrated standard and custom measurements and math functions
  • Also operates in 4 ch, 40 GS/s, 64 Mpts/Ch mode
  • Multi-lane serial data eye, jitter and crosstalk analysis
  • Real-time de-embedding, emulation, and equalization

Get the Teledyne LeCroy SDA-816Zi-B on lease or rent from TRS-RenTelco with 365-day customer support.
