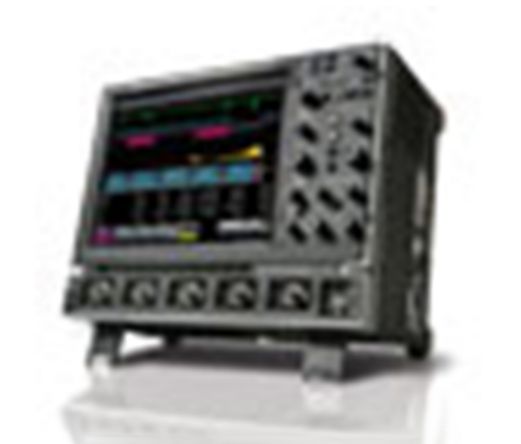

Teledyne LeCroy WR204MXI
4ch, 2 GHz, 5 GS/s, 12.5Mpts/Ch DSO
Get deeper insights into well-defined problems with the Teledyne LeCroy WR204MXI DSO.
The WR204MXI features advanced triggers, fast viewing modes, measurement parameters, and serial decodes for high performance. Equipped with unique WaveRunner Xi-A tools, the WR204MXI comes with unprecedented capabilities, such as advanced debug, multi-domain analysis, and efficient wave-shape analysis to enhance the understanding of serial data signals and powerful triggers.
Its intuitive user interface with touchscreen display makes operations easy and convenient.
Teledyne LeCroy WR204MXI Features and Specifications:
- Nominal analog bandwidth at 50 ohms, 10 mV-1 V/div: 2GHz
- Rise time (typical): 180 ps
- Single-shot sample rate: 5 GS/s
- Number of input channels: Four
- Vertical resolution: 8 bits; up to 11 bits with enhanced resolution
- Maximum input voltage: 50 ohms: 5 Vrms, 1 M ohms: 250V maximum (DC peak AC < 10kHz)
- DC gain accuracy:
- plus/-1.0 percent of full scale (typical)
- plus/- 1.5 percent of full scale >10 mV/div (warranted) - Input connector: ProBus/BNC
- Time/division range:
- Real time: 200 ps/div-10 s/div
- RIS mode: 200 ps/div to 10 ns/div
- Roll mode: Up to 1,000 s/div
The Teledyne LeCroy WR204MXI DSO (four-channel, 2GHz, 5 GS/s, 12.5Mpts/Ch) is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Sprung Hook
Qty: 4 -
Adjustment Tool
Qty: 2 -
Tip Rigid 0.5 mm
Qty: 4 -
Spring Tip 0.5 mm
Qty: 4 -
Insulating Cap
Qty: 4 -
IC Cap 0.5 mm Pitch Green
Qty: 2 -
IC Cap 0.65 mm Pitch Blue
Qty: 2 -
IC Cap 0.8 mm Pitch Gray
Qty: 2 -
IC Cap 1.0 mm Pitch Brown
Qty: 2 -
IC Cap 1.27 mm Pitch Black
Qty: 2 -
Ground Spring 2.5 mm
Qty: 4 -
Ground Blade
Qty: 2 -
Rings Color Coded
Qty: 2 -
Adapter PCB
Qty: 2 -
Copper Pad
Qty: 4 -
Ground Lead
Qty: 4 -
Accessory Pouch
Qty: 1 -
Stylus
Qty: 1 -
Cover Front
Qty: 1 -
Probe
Qty: 4 -
Mouse Optical
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Teledyne LeCroy WR204MXI Manual
Teledyne LeCroy WR204MXI Spec Sheet
