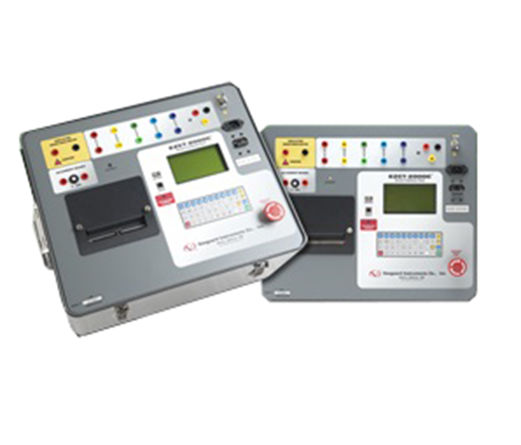

Vanguard Instruments Company EZCT-2000C PLUS
Current Transformer Test Set
The Vanguard EZCT-2000C Plus is a third-generation microprocessor-based current transformer test set. Designed specifically for current transformer (CT) testing, the Vanguard EZCT-2000C Plus has outstanding features that greatly increase productivity and save time during the commissioning stage.
The Vanguard EZCT-2000C Plus automatically performs the CT excitation test and measures the CT winding resistance and CT current-ratio. Other capabilities include:
- Performs CT excitation tests, current-ratio, polarity, and phase angle tests
- Measures insulation resistance and winding resistance of the CT secondary windings
- Measures the CT load burden
- Stand-alone or computer-controlled via USB or Bluetooth wireless interface
Vanguard EZCT-2000C Plus Specifications
- Type: Portable current-transformer test set
- Physical specifications: 16.8%22W x 12.6%22H x 14%22D (42.7 cm x 32.0 cm x 35.6 cm); weight: 60 pounds (27.2 Kg)
- Input power: 100 to 120 Vac or 200 to 240 Vac (factory pre-set), 50Hz/60Hz
- Measurement method: ANSI/IEEE C57.12.90, IEC 60044-1, and ANSI/IEEE C57.13.1
- Output test voltages: 0 to 50 Vac at 10A max, 0 to 300 Vac at 10A max, 0 to 500 Vac at 5A max, 0 to 1,200 Vac at 2A max, 0 to 2,000 Vac at 1.2 A max
- Voltage reading range: 0 to 2,200 Vac; accuracy: /- 1.0 percent of reading, /- 1 volt
- Current reading range: 0 to 10A; accuracy: /-1.0 percent of reading, /- 0.02A
- Current ratio range: 0.8 to 999: 0.1 percent, 1,000 to 1,999: 0.3 percent, 2,000 to 5,000: 1 percent
- Phase angle measurement: 0 to 360 degrees; accuracy: /-1.0 degree
- Resistance reading range: 100 micro-ohms to 10 ohms; accuracy: 2 percent of reading, ?1 count, ?10 ohms
- Display: Back-lit LCD screen (20 characters by 4 lines); viewable in bright sunlight and low-light levels
- Printer: Built-in 4.5-inch-wide thermal printer
- Computer interfaces: One RS-232C port (115k baud), one USB port
- Internal test record storage: Stores 140 test records. Each test record may contain up to 10 sets of excitation, resistance, and ratio data
- Internal test plan storage: Stores 128 test plans. Each test plan can store 10 excitation test voltage and current settings
- Safety: Designed to meet UL 61010A-1 and CAN/CSA C22.2 No. 1010.1-92 standards
- Environment: Operating: -10 degrees to 50 degrees C (15 degrees F to 122 degrees F); Storage: -30 degrees C to 70 degrees C (-22 degrees F to 158 degrees F)
- Humidity: 90 percent RH at 40 degrees C (104 degrees F) non-condensing
- Altitude: 2,000m (6,562 feet) to full safety specifications
The Vanguard EZCT-2000C test leads can be connected to all the CT output terminals, and the complete CT test can be performed automatically without any operator intervention, eliminating the need for lead switching during testing.
At TRS-RenTelco, the Vanguard EZCT 2000C Plus is available for rent and lease. Our leased products are calibrated to industry standards by an in-house team of professional metrologists and technicians. We offer customer care round the clock in case you need assistance with our test equipment. Request a quote and acquire the Vanguard EZCT Plus today.
