Viavi Solutions Inc. MOPM-C1

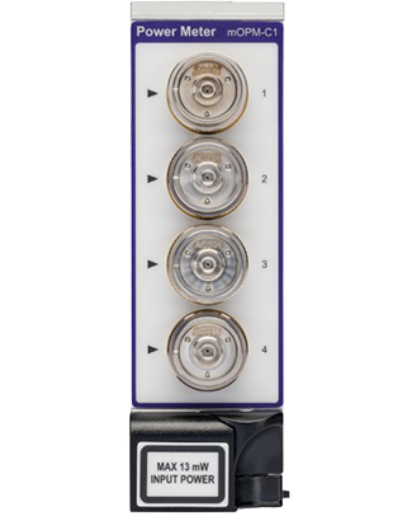

Viavi Solutions Inc. - mOPM-C1 (MAP Series InGaAs Optical Power meter)

The Multiple Application Platform (MAP) Optical Power Meter module (mOPM-C1) is a third-generation power meter that brings a range of panel-mount and  remote-head configurations to the VIAVI Solutions MAP series.

The MAP Optical Power Meter (mOPM-C1) module extends the optical power measurement capability of the MAP series by offering four grades of optical performance in panel-mount or remote-head configurations with 1, 2, or 4 inputs per module. Designed with 4 unique performance ranges, versions are available ror all applications. Models with 110 dBm dynamic range are complimented by versions that support 26 dBm input power.

mOPM-C1 Product Highlights

• Detector options include InGaAs (General Purpose, Premium, Ultra Performance, High Power) and Silicon (Si).
• Wavelength range is 750–1700 nm for InGaAs and 800–1000 nm for Silicon detectors.
• Dynamic range reaches up to 110 dB depending on detector grade.
• Optical power measurement range spans from –110 dBm to +27 dBm (up to +33 dBm with integrated remote heads).
• Sampling rate is 250 kHz with a 4 µs sampling time.
• Internal buffer supports up to 100,000 data points per channel.
• Available in single‑, dual‑, or quad‑channel configurations.
• Supports both panel‑mount and remote‑head detector configurations.
• Integrated remote heads use a Teflon integrating sphere for high‑power and low‑PDL measurements.
• Polarization dependent loss is as low as ±0.01 dB on Premium and Ultra Performance models.
• Measurement linearity is typically ±0.010 dB across most operating ranges.
• Noise performance is as low as <0.1 pW (Ultra Performance detector).
• Compatible with single‑mode and multimode fiber (NA up to 0.27 or 0.33 depending on configuration).
• Supports FC, ST, LC, E2000, MU, MTP, and bare‑fiber adapters.
• Compatible with OPMscope optical sampling scope software for time‑domain analysis.
• Designed for applications including amplifier characterization, switching time, and absolute power measurement.
• Integrates with VIAVI MAP‑200 and MAP‑300 modular test platforms.
• Note: MAP mainframe required and rented or sold seperately

Viavi Solutions Inc. & TRS-RenTelco

TRS-RenTelco is a proud partner of Viavi Solutions Inc. and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry.  Our close relationship with Viavi Solutions Inc. allows us to ensure we have the right Network Test solution for your job.

Renting Network Test

With TRS-RenTelco, renting Network Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
