Viavi Solutions Inc. MVOA-C1QSM New

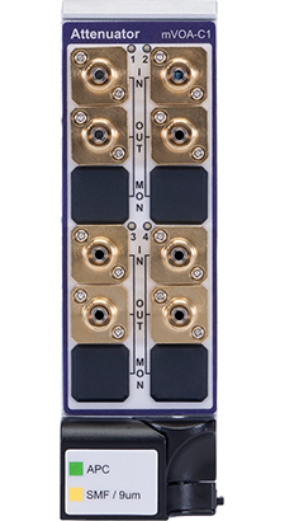

Viavi Solutions Inc. - mVOA-C1QSM (MAP Series Metrology Grade Variable Optical Attenuator)

The Multiple Application Platform (MAP series) Variable Optical Attenuator (mVOA-C1) is a stepper motor and filter-based attenuator that delivers metrology-grade programmable attenuation performance in the industry’s most compact package.

With more than 30 years of leadership in high-performance attenuators for lab and manufacturing applications, the mVOA-C1, is now in its fifth generation. The  VOA is a highresolution, wide wavelength-range attenuator ideal for use in applications such as amplifier testing, 100/400GE client optic testing and stressing  dvanced next generation coherent long haul interfaces. The attenuator is built on proven industry leading technology for maximum reliability and performance.

The mVOA has low, industry leading, insertion loss (<0.9 dB) and exceptional spectral and attenuation uniformity, thus minimizing loss budget. Making the mVOA  deal for CWDM and DWDM test applications. The attenuation accuracy (± 0.01 dB) and repeatability (±0.015 dB) are key to enabling manufacturing test systems that maximize test yield.

mVOA-C1QSM Product Highlights

• Ultra‑low insertion loss: ≤ 0.9 dB (single‑mode, standard), minimizing optical loss budgets
• High attenuation accuracy: ± 0.01 dB, enabling metrology‑grade measurements
• Excellent attenuation repeatability: ± 0.01 dB for consistent test results
• Fine attenuation resolution: 0.001 dB step size
• Wide attenuation range: up to 70 dB (single‑mode), 65 dB (multimode)
• Fast attenuation settling time: ≤ 55 ms for high‑throughput testing
• High attenuation slew rate: ≥ 25 dB/s (single‑mode)
• Outstanding spectral uniformity with flat wavelength response for CWDM/DWDM applications
• Wide wavelength coverage: 1260–1650 nm (single‑mode)
• Low polarization‑dependent loss (PDL): ≤ 0.08 dB (single‑mode standard)
• Low back‑reflection / high return loss: up to ≥ 55 dB (single‑mode)
• High input power handling: Up to +23 dBm standard, Up to +33 dBm (2 W) with high‑power option (single‑mode)
• Optional built‑in power monitor for closed‑loop power control
• Closed‑loop output power control mode with input power tracking (monitor option)
• Shutter isolation: ≥ 80 dB (single‑mode)
• Multiple configurations available: single, dual, or quad attenuators in a single MAP slot
• Hot‑pluggable MAP module compatible with MAP‑200 and MAP‑300 chassis
• LXI Class C compliant with SCPI automation support for lab and manufacturing environments
• Note: MAP mainframe required and rented or sold seperately
