Viavi Solutions Inc. TB5800V2-100GE-DP

40GE/100GE TEST SET

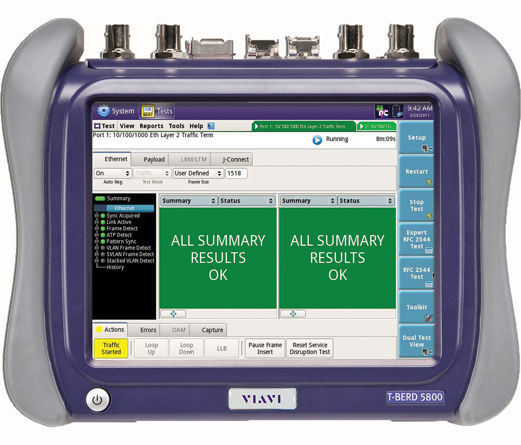

Achieve highly efficient fiber testing, service activation, troubleshooting, and maintenance with the Viavi (formerly JDSU) T-BERD/MTS-5800-100G all-in-one handheld network test equipment.

The Viavi T-BERD is the industry's smallest handheld 10G instrument. This Ethernet, SONET, SDH, OTN, CPRI/OBSAI, and fiber-optic tester is best suited for in-field network applications. This superior test set is rugged and compact and features ultra-modern interfaces, such as SFP/SFP /SFP28 and QSFP /QSFP28/CFP4. The 5800-100G is a great choice for high-quality Ethernet/IP network testing, mobile and back-haul characterization, validation, and troubleshooting.

JDSU T-BERD 5800 Advanced Testing Features

The JDSU 5800 handheld network tester offers advanced testing features that support faster, more accurate network testing. They include:

  • Optics self-test
  • Ethernet line rate capture/decode
  • TrueSpeed per RFC 6349
  • J-profiler
  • Wire speed capture/decode
  • Automated J-mentor and OTN check

This JDSU test equipment also features a large seven-inch multi-touch display and a tablet-like intuitive user interface for convenient navigation through test information and advanced workflows. The streamlined user interface displays simple pass/fail, green/red results. The dual-port operation of the JDSU 5800 test equipment can efficiently perform two tests simultaneously, including 100G/high-speed tests.

The T-BERD-5800 is compatible with the P5000i fiber microscope for convenient connector end-face inspection and analysis, and the MP-Series optical power meters for easy optical power and loss measurements. It can also be used with OTDR modules for accurate fiber-link characterization and fault finding. It also features extended battery life for longer in-field test times and offload results, and boots up quickly from power-on to test start.

Viavi T-BERD 5800 Benefits

  • Simplifies multi-technology testing with an all-in-one dual 100G handheld unit
  • Optimized for field use with a multi-touch screen, scripted workflows, and clear pass/fail results
  • Supports efficient best practices with repeatable methods and procedures
  • Speeds up fiber optics testing, Ethernet service activation, and troubleshooting tests

Viavi T-BERD 5800 Features and Specifications:

  • Supports comprehensive rate testing ranging from DSx/PDH (1.5M/2M) through to 112G OTU4
  •  Industry's fastest RFC 2544 and Y.1564 SAMComplete Ethernet service verification test, including nanosecond-accurate latency measurements
  • Supports RFC 6349 TrueSpeed
  • Supports all fiber channel rates across dual ports, including 32GFC at 28.05Gbps
  • Support and testing of eCPRI and 1588 up to 25GE
  • Available suite of CPRI at all rates up to CPRI 10 running at 24.3Gbps, OBSAI, and eCPRI
  • Ensures that QSFP/QSFP28 and CFP4 modules run error-free with the field optimized optics self-test
  • Supports the Viavi 4100-Series OTDR and COSA modules with Smart Link Mapper optical analysis software, fiber microscopes, and optical power meters
  • Expandable with support for additional modules, such as the TEM (timing expansion module) for network test synchronization and timing
  • Complete ODU multiplexing mappings with nested ODU functionality, including ODU0, ODU1, ODU2/2e, ODU3, and ODUFLEX
  • FEC tests for correctable and uncorrectable errors

The Viavi (formerly JDSU) T-BERD/MTS 5800 handheld network tester is available for rent, lease, or sale at TRS-RenTelco.

We offer fully calibrated test equipment with 24/7 customer support throughout the year. To know more, request a quote or contact us at 800.874.7123.

Read More
  • Configurations
  • Resources
--, C5100GE, C540GE, C5COS, C5DUAL100G, C5JPROOF, C5ODU0, C5ODU1, C5ODU2, C5ODU3, C5ODUFLEX, C5OTU3, C5OTU4, TB5800100G
See Configuration Details
  • C5ODU1

    DU1 Multiplexing Test Option

  • C540GE

    40GE Test Option

  • C5DUAL100G

    Dual-Port 100G Or 40G Test Option

  • C5JPROOF

    J-Proof Layer 2 Transparency Test Option Software

  • C5ODU0

    ODU0 Test Option

  • C5ODU2

    ODU2 Multiplexing Test Option

  • C5ODU3

    ODU3 Multiplexing Test Option

  • TB5800100G

    Base 100GE Package No Optics

  • C5ODUFLEX

    ODU0 Flex Test Option

  • C5OTU3

    OTU3 Test Option

  • C5OTU4

    OTU4 Test Option

  • C5100GE

    100GE Test Option - Included in TB5800100G

  • C5COS

    Multiple streams/CoS SAMComplete / Y.1564 w CBS

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Carry Case Large

    Qty: 1
  • Battery Smart Lithium Ion14.4 V 6.8 Ah 98 Wh

    Qty: 1
  • Power Supply 19 V 150 W for TB/MTS-5800-100G Only

    Qty: 1
  • Screen Cover-Protector

    Qty: 1
  • Adapter SMA(f) - SMB(f)

    Qty: 1
  • Stylus Pen Rubber Tip

    Qty: 1
  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

Buy Used

In stock now. Request Quote for pricing.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, C5100GE, C510GELAN, C510M1GE, C540GE, C5COS, C5DUAL100G, C5JPROOF, C5ODU0, C5ODU1, C5ODU2, C5ODU3, C5ODUFLEX, C5OTU3, C5OTU4, TB5800100G
See Configuration Details
  • C5DUAL100G

    Dual-Port 100G Or 40G Test Option

  • C510M1GE

    10/100/1000M Electrical and 100M/1GigE Optical Ethernet Interface Software

  • C540GE

    40GE Test Option

  • C5JPROOF

    J-Proof Layer 2 Transparency Test Option Software

  • C5ODU0

    ODU0 Test Option

  • C5ODU1

    DU1 Multiplexing Test Option

  • C5ODU2

    ODU2 Multiplexing Test Option

  • C5ODU3

    ODU3 Multiplexing Test Option

  • C5ODUFLEX

    ODU0 Flex Test Option

  • C5OTU3

    OTU3 Test Option

  • C5OTU4

    OTU4 Test Option

  • TB5800100G

    Base 100GE Package No Optics

  • C5100GE

    100GE Test Option - Included in TB5800100G

  • C5COS

    Multiple streams/CoS SAMComplete / Y.1564 w CBS

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Carry Case Large

    Qty: 1
  • Battery Smart Lithium Ion14.4 V 6.8 Ah 98 Wh

    Qty: 1
  • Power Supply 19 V 150 W for TB/MTS-5800-100G Only

    Qty: 1
  • Screen Cover-Protector

    Qty: 1
  • Adapter SMA(f) - SMB(f)

    Qty: 1
  • Stylus Pen Rubber Tip

    Qty: 1
  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, C5100GE, C510GELAN, C510M1GE, C540GE, C5COS, C5DUAL100G, C5DUAL10G, C5JPROOF, C5ODU0, C5ODU1, C5ODU2, C5ODU3, C5ODUFLEX, C5OTU3, C5OTU4, TB5800100G
See Configuration Details
  • C510GELAN

    10GigE LAN Ethernet Interface Software

  • C540GE

    40GE Test Option

  • C5DUAL100G

    Dual-Port 100G Or 40G Test Option

  • C5DUAL10G

    TB/MTS5800v2 Test Option Enabling 2nd Concurrent 10G Test Capability

  • C5JPROOF

    J-Proof Layer 2 Transparency Test Option Software

  • C5ODU0

    ODU0 Test Option

  • C5ODU1

    DU1 Multiplexing Test Option

  • C5ODU2

    ODU2 Multiplexing Test Option

  • C5ODU3

    ODU3 Multiplexing Test Option

  • C5ODUFLEX

    ODU0 Flex Test Option

  • C5OTU3

    OTU3 Test Option

  • C5OTU4

    OTU4 Test Option

  • TB5800100G

    Base 100GE Package No Optics

  • C5100GE

    100GE Test Option - Included in TB5800100G

  • C5COS

    Multiple streams/CoS SAMComplete / Y.1564 w CBS

  • C510M1GE

    10/100/1000M Electrical and 1GigE Optical Ethernet

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Screen Cover-Protector

    Qty: 1
  • Stylus Pen Rubber Tip

    Qty: 1
  • Adapter SMA(f) - SMB(f)

    Qty: 1
  • Power Supply 19 V 150 W for TB/MTS-5800-100G Only

    Qty: 1
  • Battery Smart Lithium Ion14.4 V 6.8 Ah 98 Wh

    Qty: 1
  • Carry Case Large

    Qty: 1
  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

Buy Used

Price: $81,736 $48,240

*This item has already been added to your cart. Check your cart for quantity and availability.
--, C540GE, C5DUAL100G, C5JPROOF, C5ODU0, C5ODU1, C5ODU2, C5ODU3, C5ODUFLEX, C5OTU3, C5OTU4, TB5800100G
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, C5100GE, C510GELAN, C540GE, C5COS, C5DUAL100G, C5JPROOF, C5ODU0, C5ODU1, C5ODU2, C5ODU3, C5ODUFLEX, C5OTU2, C5OTU3, C5OTU4, TB5800100G
See Configuration Details
  • C510GELAN

    10GigE LAN Ethernet Interface Software

  • C540GE

    40GE Test Option

  • C5DUAL100G

    Dual-Port 100G Or 40G Test Option

  • C5JPROOF

    J-Proof Layer 2 Transparency Test Option Software

  • C5ODU0

    ODU0 Test Option

  • C5ODU1

    DU1 Multiplexing Test Option

  • C5ODU2

    ODU2 Multiplexing Test Option

  • C5ODU3

    ODU3 Multiplexing Test Option

  • C5ODUFLEX

    ODU0 Flex Test Option

  • C5OTU2

    TB/MTS5800v2 OTU2 Test Option

  • C5OTU3

    OTU3 Test Option

  • C5OTU4

    OTU4 Test Option

  • TB5800100G

    Base 100GE Package No Optics

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Screen Cover-Protector

    Qty: 1
  • Stylus Pen Rubber Tip

    Qty: 1
  • Adapter SMA(f) - SMB(f)

    Qty: 1
  • Power Supply 19 V 150 W for TB/MTS-5800-100G Only

    Qty: 1
  • Battery Smart Lithium Ion14.4 V 6.8 Ah 98 Wh

    Qty: 1
  • Carry Case Large

    Qty: 1
  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
