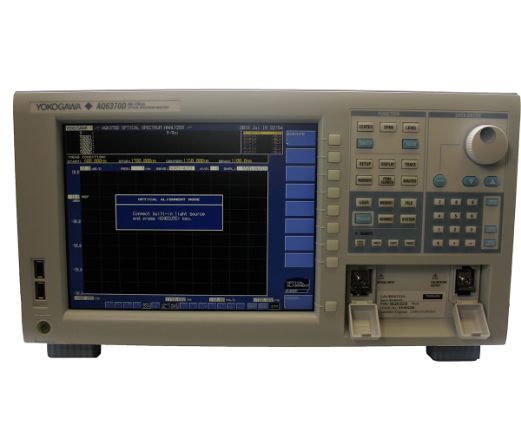

Yokogawa AQ6370D-12

Optical Spectrum Analyzer

The Yokogawa AQ6370D-12 is an optical spectrum analyzer, which is well-suited for both general purpose applications as well as telecommunications. The AQ6370D-12 has a unique free space input design, which enables testing of both DWDM single mode and VCSEL sourced multi-mode fibers in a single model.

Some of the major specifications of the Yokogawa AQ6370D-12 optical spectrum analyzer are:

  • Wavelength range: 600 to 1700 nm
  • Wavelength accuracy: /-0.01 nm (high-performance model)
  • Wavelength resolution setting: 0.02 to 2 nm
  • Level range: 20 to -90 dBm
  • Close-in dynamic range: 78 dB typ. (peak /-1.0 nm, high-performance model)

The applications of the Yokogawa AQ6370D-12 include:

  • Emission spectrum evaluation of optical transceivers and LD modules
  • OSNR measurement of WDM transmission signals
  • Optical amplifier (EDFA) measurement

Get the Yokogawa AQ6370D-12 optical spectrum analyzer from TRS-RenTelco for rent or for lease with the added benefit of our 24/7, year-long customer support. We ship the product with minimal lead time. Our experienced team of metrologists and technicians calibrate all equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Request a quote today.

Read More
  • Configurations
  • Resources
--, -12, -D, -L1, /FC, /RFC
See Configuration Details
  • -12

    Standard Model Option

  • -D

    Ul/Csa Standard Power Cord Option (Nc)

  • -L1

    With Calibration Source Option (Nc)

  • /FC

    Optical Input Aq9447 Fc Option

  • /RFC

    Calibration Output Aq9441 Fc Option

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Connector FC Input

    Qty: 1
  • Connector FC Output

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
