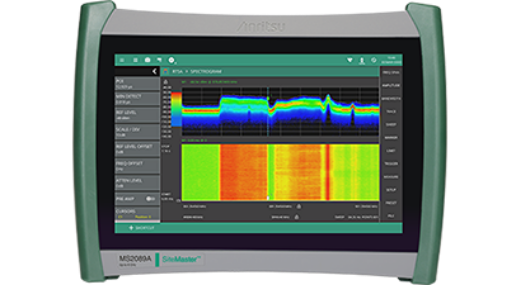

Anritsu MS2089A-706
Site Master, 9 kHz to 6 GHz Cable, Antenna, and Spectrum Analyzer, Type N(f)
Anritsu - MS2089A-706
Anritsu is proud to introduce the next line in handheld cable and antenna analyzer and spectrum analyzer with real-time spectrum analysis. With frequency coverage up to 6 GHz, the new Site Master™ MS2085A/89Acompletely redefines the standards for portable handheld analyzers, setting another new industry benchmark for performance and accuracy. The new site master is the culmination of over 60 years of microwave test and measurement equipment development, using the very latest technologies to deliver accuracy and precision in measurements previously reserved only for benchtop instruments.
MS2089A-706 Product Highlights
• Reflection Measurements: Return Loss, Cable Loss, VSWR, Smith Chart, 1-Port Phase, TDR (Ohm/Linear), DTF Return Loss, DTF VSWR
• Transmission Measurements: Transmission (USB Sensor), 2-Port Transmission
• Calibration Methods: OSL, OSL +Trans (USB Sen), OSL + Trans (2-Port), Trans (USB Sen), Trans (2-Port), iOSL, iOSL+Trans (USB Sen), iOSL+Trans (2-Port)
• Calibration Type: Factory default 1-Port ReadyCal, OSL, InstaCal™ and FlexCal™
• Display: Single or Horizontal Split Measurement Touchscreen
• Sweep Speed: 350 µsa/data point, fast sweep rate, typical
• Certified Line Sweeping Training
• Built-in PDF/HTML Report Generator
• Battery Life: Up to 9 hours
• Anritsu Remote and Report Tools (ARRT)
Anritsu & TRS-RenTelco
TRS-RenTelco is a proud partner of Anritsu and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Anritsu allows us to ensure we have the right Wireless Test solution for your job.
Renting Wireless Test
With TRS-RenTelco, renting Wireless Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Links to Additional Information
Anritsu Products from TRS-RenTelco
- Configurations
--, 15RNFN50-1.5-R, 706, 806, OSLN50A-8
See Configuration Details
-
15RNFN50-1.5-R
Test Port Extension Cable; Armored; with Reinforced Grip; 1.5 meters; N(m) - N(f); 6 GHz; 50 Ohm
-
706
SPA Frequency Range 9 kHz to 6 GHz
-
806
CAA Frequency Range 5 kHz to 6 GHz
-
OSLN50A-8
Coaxial Calibration Kit; Type N(m); DC to 8 GHz; 50 Ohm
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 003, 024, 031, 102, 15RNFN50-1.5-R, 199, 2000-1760-R, 431, 706, 806, OSLN50A-8
See Configuration Details
-
003
Time Domain Reflectometry Measurement
-
024
Interference Finder
-
031
GNSS receiver
-
102
40 MHz analysis bandwidth
-
15RNFN50-1.5-R
Test Port Extension Cable; Armored; with Reinforced Grip; 1.5 meters; N(m) - N(f); 6 GHz; 50 Ohm
-
199
Real-time spectrum analysis (RTSA)
-
2000-1760-R
GPS Antenna; SMA(m); 25 dB gain; requires 2.5 VDC to 3.7 VDC
-
431
Coverage Mapping
-
706
SPA Frequency Range 9 kHz to 6 GHz
-
806
CAA Frequency Range 5 kHz to 6 GHz
-
OSLN50A-8
Coaxial Calibration Kit; Type N(m); DC to 8 GHz; 50 Ohm
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 031, 15RNFN50-1.5-R, 2000-1760-R, 706, 806, 883, OSLN50A-8
See Configuration Details
-
031
GNSS receiver
-
15RNFN50-1.5-R
Test Port Extension Cable; Armored; with Reinforced Grip; 1.5 meters; N(m) - N(f); 6 GHz; 50 Ohm
-
2000-1760-R
GPS Antenna; SMA(m); 25 dB gain; requires 2.5 VDC to 3.7 VDC
-
706
SPA Frequency Range 9 kHz to 6 GHz
-
806
CAA Frequency Range 5 kHz to 6 GHz
-
883
LTE FDD/TDD Measurements
-
OSLN50A-8
Coaxial Calibration Kit; Type N(m); DC to 8 GHz; 50 Ohm
*This item has already been added to your cart. Check your cart for quantity and availability.
