Anritsu MW82119A-0700
PIM Master, 700 MHz, 7/16 DIN(f)
Rent or Lease • Buy Used From $11,035

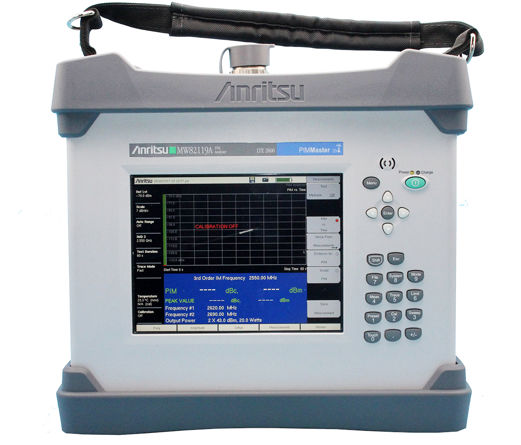

PIM Master MW82119A Battery-operated, High Power Portable, Passive Intermodulation Analyzer
The Anritsu MW82119A-0700 PIM Master is a battery-operated, high power, portable Passive Intermodulation (PIM) Analyzer. With a compact design and battery-based power source, the Anritsu MW82119A -0700 is highly portable and can be easily carried around to places that pose difficulties in terms of access. This includes the likes of indoor Distributed Antenna Systems or DAS, and Remote Radio Head (RRH) installations. A versatile device, the Anritsu MW82119A-0700 comes equipped with the brand's signature distance-to-PIM technology. Through this technology, the device is able to accurately pin-point the location of the PIM fault both inside the feed system and beyond the antenna.
The advantages of the petite yet powerful PIM Master MW82119A are as follows:
- Small Size: 350 mm x 314 mm x 152 mm (13.8 in x 12.4 in x 6.0 in)
- Lightweight: 9.0 kg to 12.2 kg (20 lb. to 27 lb.) depending on frequency band
- Battery Operated: 12V Li-Ion battery
- 25 dBm (0.3 Watt) to 46 dBm (40 Watt) output power
TRS-RenTelco is an authorized distributor of ConcealFab PIM Hunting and Mitigation Soluitions. See the catalog on the resource tab.
If you are looking for a new or well-maintained used Anritsu MW82119A-0700 PIM Master for rent or sale, contact us or request a quote today.
- Configurations
- Resources
- FAQsAI
--, 0700, 760-259-R
See Configuration Details
-
0700
LTE 700 MHz
-
760-259-R
Transit Case
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
AC Adapter
Qty: 1 -
Adapter Automotive 12 VDC
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Cable RJ45 Straight Thru
Qty: 1 -
Caution Card
Qty: 1 -
Battery Lithium Ion High Capacity 81W
Qty: 1 -
Carrycase Soft
Qty: 1 -
Case Transit
Qty: 1 -
Adapter 7/16 Din(m) - 7/16 Din(f)
Qty: 1 -
Case Accessory Brown
Qty: 2 -
SOFTWARE AND MANUALS ON USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0031, 0700, 2000-1528, 760-259-R
See Configuration Details
-
2000-1528
Magnet Mount GPS Antenna (Active 3-5 V) with SMA Connector and 4.6 Meters (15 Ft) Extension Cable (Required for Units with Option 31)
-
760-259-R
Transit Case
-
0031
GPS Receiver
-
0700
LTE 700 MHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
AC Adapter
Qty: 1 -
Adapter Automotive 12 VDC
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Cable RJ45 Straight Thru
Qty: 1 -
Caution Card
Qty: 1 -
Battery Lithium Ion High Capacity 81W
Qty: 1 -
Carrycase Soft
Qty: 1 -
Case Transit
Qty: 1 -
Adapter 7/16 Din(m) - 7/16 Din(f)
Qty: 1 -
Case Accessory Brown
Qty: 2 -
Antenna GPS +2.5 VDC - 3.7 VDC
Qty: 1 -
SOFTWARE AND MANUALS ON USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0019, 0031, 0700, 2000-1528, 760-259-R
See Configuration Details
-
0019
High Accuracy Power Meter
-
0031
GPS Receiver
-
0700
LTE 700 MHz
-
2000-1528
Magnet Mount GPS Antenna (Active 3-5 V) with SMA Connector and 4.6 Meters (15 Ft) Extension Cable (Required for Units with Option 31)
-
760-259-R
Transit Case
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
AC Adapter
Qty: 1 -
Adapter Automotive 12 VDC
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Cable RJ45 Straight Thru
Qty: 1 -
Caution Card
Qty: 1 -
Battery Lithium Ion High Capacity 81W
Qty: 1 -
Carrycase Soft
Qty: 1 -
Case Transit
Qty: 1 -
Adapter 7/16 Din(m) - 7/16 Din(f)
Qty: 1 -
Case Accessory Brown
Qty: 2 -
Antenna GPS +2.5 VDC - 3.7 VDC
Qty: 1 -
SOFTWARE AND MANUALS ON USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0700
See Configuration Details
-
0700
LTE 700 MHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
AC Adapter
Qty: 1 -
Adapter Automotive 12 VDC
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Cable RJ45 Straight Thru
Qty: 1 -
Caution Card
Qty: 1 -
Manual User Guide
Qty: 1 -
Battery Lithium Ion High Capacity 81W
Qty: 1 -
Carrycase Soft
Qty: 1 -
Adapter 7/16 Din(m) - 7/16 Din(f)
Qty: 1 -
Case Accessory Brown
Qty: 2 -
Void SOFTWARE AND MANUALS ON USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0031, 0700
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Battery Lithium Ion High Capacity 81W
Qty: 1 -
SOFTWARE AND MANUALS ON USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0019, 0031, 0700
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Void- SOFTWARE AND MANUALS ON USB
Qty: 1 -
Battery Lithium Ion High Capacity 81W
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
ConcealFab Product Guide
Anritsu MW82119A Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Anritsu MW82119A PIM Master?
The Anritsu MW82119A PIM Master is the first battery-operated, high-power Passive Intermodulation (PIM) analyzer designed for major wireless standards worldwide. It measures PIM vs. Time, Swept PIM, Noise Floor, and features Anritsu's patented Distance-to-PIM (DTP) technology for accurately locating PIM faults inside feed systems and beyond antennas. The MW82119A is ideal for verifying performance at difficult-to-access sites such as Remote Radio Head (RRH) installations and indoor Distributed Antenna Systems (DAS).
What frequency bands and test power does the MW82119A-0700 support?
The MW82119A-0700 operates in the LTE 700 band with Tx1 at 734 MHz to 734.5 MHz and Tx2 at 746 MHz to 768 MHz, with receive bands covering 698 MHz to 717 MHz (lower) and 777 MHz to 806 MHz (upper). The unit delivers adjustable test power from 25 dBm (0.3 Watts) for indoor DAS testing up to 46 dBm (40 Watts) per tone for macro site testing, in 0.1 dBm steps.
What is the PIM sensitivity and measurement range of the MW82119A?
The MW82119A achieves a residual PIM of less than -117 dBm maximum and less than -125 dBm typical when tested at 2x43 dBm test tones. The PIM measurement range spans from -70 dBm to -130 dBm. The analyzer measures 3rd, 5th, and 7th order intermodulation products when they fall within the receive band, with user-selectable intermodulation order.
How does Distance-to-PIM (DTP) work on the MW82119A?
Distance-to-PIM (DTP) quickly and accurately identifies the location of PIM faults both inside the feed system and beyond the antenna, eliminating the guesswork in isolating PIM sources. Up to 6 markers can be activated to identify the magnitude and distance to PIM faults. A trace overlay feature allows real-time comparison between an active DTP measurement and a previously saved trace, which is especially critical for fault-finding in complex DAS installations.
What are the key measurement modes of the MW82119A?
The MW82119A offers PIM vs. Time for tracking instantaneous and peak PIM levels during fixed-frequency tests, Swept PIM for evaluating PIM magnitude across a range of IM frequencies, Distance-to-PIM for locating PIM fault positions, and a Noise Floor mode that monitors the IM product frequency with transmitters disabled. The Swept PIM mode is valuable because when multiple PIM sources exist, signals can combine out of phase at certain frequencies, masking failures at single test points.
How portable is the MW82119A for tower and field work?
The MW82119A measures 350 mm x 314 mm x 152 mm and weighs 9.0 kg to 12.2 kg depending on the frequency option. It runs on a Li-Ion battery providing over 3.0 hours of typical operation time. Its small size and light weight combined with battery operation make it ideal for tower climbs, ladder access, and small access ports where heavy lifting and long extension cords are impractical.
Does the MW82119A support remote control operation?
Yes, the MW82119A can be configured for remote control via WiFi, with line-of-sight distances of greater than 100 meters (328 feet) achieved. This allows a person on the ground to control the test equipment while another person at the top of the mast makes connections and performs dynamic testing. The remote control capability is also useful for rooftop testing, enabling one person to follow the cable run while controlling the instrument remotely.
What environmental and safety standards does the MW82119A meet?
The MW82119A operates over a temperature range of -10 degrees C to +55 degrees C and is designed and tested to MIL-PRF-28800F Class 2 standards for shock. It can operate at altitudes up to 4,600 meters and tolerates relative humidity of 5% to 95% non-condensing. The unit complies with CE Mark EMC Directive 2004/108/EC and safety class EN 61010-1 and IEC 60950-1.
