Anritsu WG90

Waveguide Kit, 8.2 GHz to 12.4 GHz

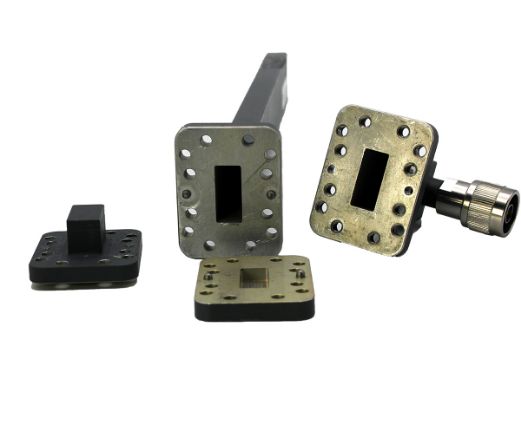

The Anritsu WG90 is a Waveguide Adapter, which operates over a frequency range of 8.2 to 12.4 GHz. The calibration kit includes:

  • 23UA90 -1/8 offset short, 8.20 to 12.4 Ghz
  • 24UA90 -3/8 offset short, 8.20 to 12.40 Ghz
  • 26UA90 -Precision Termination, 8.20 to 12.40 Ghz
  • 35UA90N -Coaxial Adapter, N(m), 8.2 to 12.40 Ghz

TRS-RenTelco offers the Anritsu WG90 Waveguide Kit for rent or lease with 24/7 customer support. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us to request a quote today.

Read More
  • Configurations
  • Resources
  • FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Offset Short 1/8 in 8.20 GHz - 12.4 GHz

    Qty: 1
  • Offset Short 3/8 in 8.20 GHz - 12.40 GHz

    Qty: 1
  • Termination Precision 8.20 GHz - 12.40 GHz (Standard)

    Qty: 1
  • Adapter Coaxial N(m) 8.2 GHz - 12.40 GHz

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.

Content is AI-generated. Verify critical details with manufacturer-provided resources.

What are Anritsu WG90 Waveguide Components?

Anritsu WG90 waveguide components are specialized devices, including 1/8 offset shorts and precision loads, designed for high-frequency waveguide calibrations. These components facilitate accurate characterizations and calibrations within the waveguide systems operating in the WR90 size, which corresponds to the frequency range of 8.2 GHz to 12.4 GHz.

What is the purpose of the 23 Series 1/8 Offset Shorts?

The 23 Series 1/8 Offset Shorts are utilized in waveguide calibrations as an alternative to traditional coaxial SOLT (Short-Open-Load-Thru) calibrations. They are generally accepted substitutes when an open waveguide standard is not reflective enough. They are key components in SSLT (Short-Short-Load-Thru) and LRL/LRM (Line-Reflect-Line/Match) calibrations.

How do Offset Shorts contribute to waveguide calibrations?

Offset shorts provide a known reflection point within the waveguide system, enabling the accurate characterization of waveguide components and calibration of measurement systems by being used in conjunction with precision loads and through connections.

What are the 26 Series Precision Loads used for?

The 26 Series Precision Loads are employed in waveguide calibrations as highly accurate terminations. They provide a minimal reflection point essential for ensuring the integrity of calibration procedures such as SSLT and LRL/LRM.

What is the significance of the VSWR values listed for the Precision Loads?

The Voltage Standing Wave Ratio (VSWR) values denote the reflection characteristics of the Precision Loads. Lower VSWR values signify better impedance matching and reduced reflected energy, crucial for precise calibrations and measurements.

How does the offset length of the Offset Shorts affect waveguide measurements?

The offset length in the Offset Shorts determines the phase shift introduced within the waveguide, used in calibration procedures to determine the electrical length and properties of the waveguide components under test.

What are the 35U Series Waveguide-to-coaxial Adapters?

The 35U Series Waveguide-to-coaxial Adapters are precision devices that transform standard waveguide interfaces (like WR90) into coaxial connections, enabling convenient microwave coaxial measurements. This transformation allows for the integration of waveguide components into systems predominantly using coaxial connections.

How do environmental factors affect the performance of WG90 series components?

Environmental factors such as temperature, humidity, and mechanical vibrations can impact the performance of waveguide components. The WG90 series components are designed to withstand typical environmental conditions encountered in lab and field settings, but extreme conditions may necessitate additional protective measures or calibration adjustments.

What maintenance and care are required for WG90 series components?

Maintenance involves regular inspection for physical damage, cleaning of connector surfaces to prevent contamination, and proper storage to avoid mechanical stress. Periodic performance verification through standard calibration procedures is advisable to ensure continued accurate measurements.

What factors should be considered when selecting WG90 series components for a specific application?

Considerations include the operating frequency range, compatibility with the existing waveguide system (including flange type), mechanical dimensions, and the specific requirements of the calibration or measurement procedure being performed.
