Anritsu S820E-720
Microwave Site Master 1 MHz to 20 GHz Cable and Antenna Analyzer, K(m)
Rent or Lease
Anritsu – S820E-720

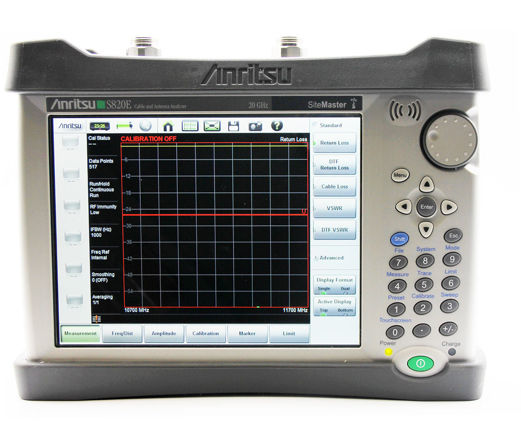

The Anritsu S820E-720 is a 1 MHz to 20 GHz Cable and Antenna Analyzer that offers a frequency range of up to 20 GHz and Optional VNA and VVM Modes.
S820E-720 Product Highlights
- S820E frequency range: 1 MHz to 20 GHz
- 110 dB of dynamic range from 20 MHz to 20 GHz
- 650 data point for fast field measurements
- VNA Mode (option) offers fully reversing 4 S-Parameter measurement capabilities
- Advanced and Classic Mode GUI (i.e. S810D/S820D)
- Coaxial and waveguide measurement supported
- 1-port measurements: Return Loss, VSWR, Cable Loss, Distance-To-Fault, Smith Chart, 1-port phase
- 2-port measurements: Transmission Measurement and Swept Cable Loss
- High Accuracy Power Meter measurements with external power sensors
- USB/Ethernet connectivity, full remote control capability
- Intuitive menu-driven 8.4 inch touchscreen with daylight/nighttime viewable modes
- Field-proven design: Explosive Atmosphere MIL-PRF-28800F Section 4.5.6.3 compliant
