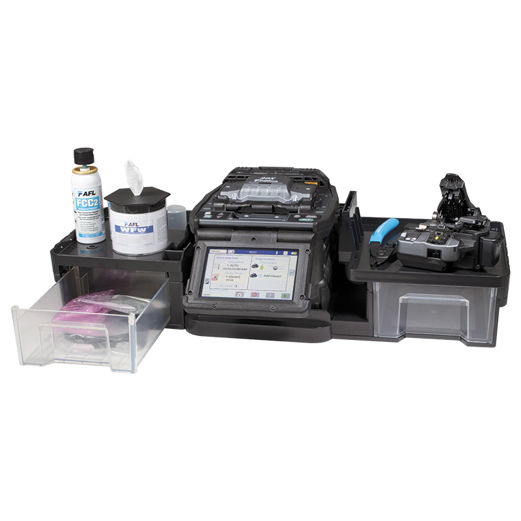

AFL Global - Fujikura 90S
The AFL Global - Fujikura 90S is a core alignment fusion splicer that solves common problems seen in the field—from splicing poor quality legacy fiber to automated equipment maintenance and upkeep. The Fujikura 90S can be used in multiple field splicing applications including bend-insensitive fibers in drop cables, long-haul terrestrial and submarine LEAF® fibers, loose buffer fiber, splice-on connectors, and the list goes on..
90SPLUS Product Highlights
- Cleaver tracking and upkeep with wireless communication
- Automated wind protector, sheath clamps and splice operation
- Loose and tight buffer with same sheath clamp
- Lithium-ion battery with 300 splices/shrinks per charge
- PC software and 90S+ manual downloaded from splicer
- Multi-function transit case with integrated workstation
AFL Global - Fujikura & TRS-RenTelco
TRS-RenTelco is a proud partner of AFL Global - Fujikura and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with AFL Global - Fujikura allows us to ensure we have the right Datacom Cable Test solution for your job.
Renting Datacom Cable Test
With TRS-RenTelco renting Datacom Cable Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 4,400 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | AFL Global - Fujikura
- Configurations
- Resources
- FAQsAI
--, CT-50
See Configuration Details
-
CT-50
Cleaver
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power 3-Prong Keyed
Qty: 1 -
Wrench Hex
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Battery AAA
Qty: 2 -
Screwdriver TRS Logo
Qty: 1 -
AC Adapter 12 V 7 A
Qty: 1 -
Strap Fusion Splicer
Qty: 1 -
Electrode 90 Series (Set of 2)
Qty: 1 -
Fiber Holder Set Plate
Qty: 1 -
Work Table Left
Qty: 1 -
Work Table J-Plate
Qty: 1 -
Work Table Right
Qty: 1 -
Strap Carrycase
Qty: 1 -
Fiber Scrap Box for CT-50
Qty: 1 -
CT-50 cleaver case
Qty: 1 -
Fiber Plate with Clamp for CT-50
Qty: 1 -
Cleaver CT50
Qty: 1 -
Sheath Clamp Universal Pair for 90S
Qty: 2 -
90 Series 92Wh Battery Pack
Qty: 1 -
Battery Door AFL 90S
Qty: 1 -
Carrycase (NOT A TRANSIT CASE)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Stripper Single Fiber
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
AFL 90S+ User Manual
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Fujikura 90S+ Fusion Splicer?
The Fujikura 90S+ is a core alignment fusion splicer designed for splicing single optical fibers in the field and production environments. It features Active Fusion Control (AFC) technology for real-time fusion power control, Active Blade Management via Bluetooth wireless communication with the CT50 cleaver, and automated wind protector and sheath clamp operation. The 90S+ handles multiple fiber types including single-mode (ITU-T G.652, G.657), multimode (G.651), and specialty fibers with cladding diameters from 80 to 150 micrometers.
How fast does the Fujikura 90S+ splice and heat fibers?
The Fujikura 90S+ achieves splice times of 8 to 10 seconds in SM FAST mode, 11 to 13 seconds in SM AUTO mode, and 14 to 16 seconds in full AUTO mode. Heat shrink times for the 60 mm slim protection sleeve average 9 to 10 seconds, and standard 60 mm sleeves average 13 to 15 seconds. The splicer supports both automatic and special splice modes with 100 splice modes and 30 heat modes available.
What splice loss performance does the 90S+ achieve?
The Fujikura 90S+ delivers excellent splice loss results across multiple fiber types: an average of 0.02 dB for ITU-T G.652 standard single-mode fiber, 0.01 dB for ITU-T G.651 multimode fiber, 0.04 dB for ITU-T G.653, G.654, and G.655 fibers, and 0.02 dB for ITU-T G.657 bend-insensitive fiber. The Active Fusion Control technology optimizes fusion power in real-time by analyzing fiber brightness intensity during the fusion process.
What is the battery life of the Fujikura 90S+ splicer?
The Fujikura 90S+ uses a rechargeable Lithium-Ion battery pack (BTR-15) with a DC14.4V / 6,380 mAh output, providing approximately 300 splice and heat cycles per charge. The battery recharges in approximately 5 to 8 hours from empty and has a lifespan of approximately 500 recharge cycles. The battery operates from -10 to 50 degrees C and charges from 0 to 30 degrees C.
What is Active Blade Management on the Fujikura 90S+?
Active Blade Management is a wireless communication feature between the 90S+ splicer and the CT50 fiber cleaver via Bluetooth. The splicer monitors cleave quality and, when it detects blade wear by analyzing the fiber image, it sends a command to the cleaver to automatically rotate the blade to the next available position. The splicer also tracks remaining blade life, displays usage information, and alerts the operator if a blade position is changed by mistake.
What fiber types and applications does the 90S+ support?
The 90S+ supports single-mode and multimode optical fibers with cladding diameters from 80 to 150 micrometers and coating diameters up to 3,000 micrometers. It accommodates cleave lengths from 5 to 16 mm. Applications include distribution fiber repair, long-haul network installation, field termination with splice-on connectors, access network installation, OSP cable installation and repair, fanout kits, pigtails, splice cassettes, and optical modules such as splitters, couplers, MUXs, EDFAs, and attenuators.
How portable and durable is the Fujikura 90S+?
The 90S+ weighs approximately 2.8 kg including the battery and measures roughly 170 mm x 173 mm x 150 mm. It operates in temperatures from -10 to 50 degrees C at altitudes up to 5,000 meters and tolerates 0% to 95% relative humidity (non-condensing). It comes with a redesigned transit case (CC39) that doubles as a workstation, with the lid serving as a work table, and it includes a work tray that can be mounted on a tripod.
How does the Fujikura 90S+ automated wind protector improve field splicing?
The Fujikura 90S+ features an automated wind protector that opens and closes automatically during the splice cycle, with customizable operating modes for the preferred opening and closing behavior. This automation eliminates the need for manual handling between fiber loading and fusion, which speeds up the splicing process and reduces the risk of fiber contamination or misalignment. Combined with automatic sheath clamp opening and heater lid control, the 90S+ minimizes operator intervention throughout the entire splice and heat-shrink workflow.
