Fluke Networks OFP-100-QI
OptiFiber Pro Quad OTDR with Inspection Kit
Rent or Lease
Fluke Networks - OFP-100-QI

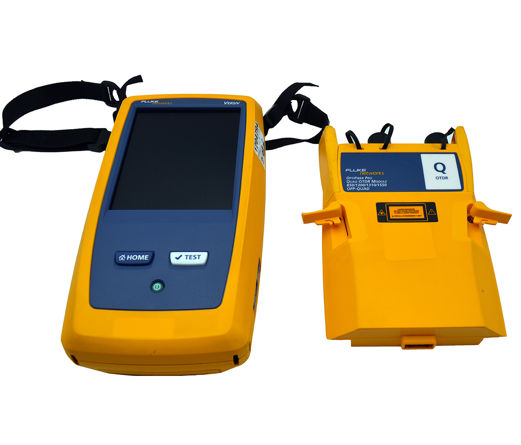

The Fluke Networks OFP-100-QI OptiFiber Pro Quad OTDR with inspection kit is a fiber optic tester with the best OTDR (Optical Time-Domain Reflectometer) technology to maintain fiber network performance.
Built to meet the exceptional challenges of an enterprise fiber infrastructure, the OFP-100-QI with its simple smartphone user interface and sophisticated features can turn anyone into a proficient and skilled premise fiber troubleshooter or installer. The OFP-100-QI improves productivity with fast trace times; single-button set ups and integrated reporting features. Reducing network downtime by swiftly and accurately identifying faults on all fiber types, the OFP-100-QI's ease of use makes it a value-for-money device as it reduces expensive OTDR training and detailed trace analysis efforts.
OFP-100-QI Product Highlights
- Two second trace per wavelength
- Short event and attenuation dead zone to detect and measure closely spaced faults
- All-in-one fiber testing tool with built-in planning, inspection, certification and reporting features
- Smartphone user interface with gesture-based interface technology and capacitive touchscreen
- Delivers the highest level of accuracy for swift problem resolution
- On-screen help with corrective action recommendations
- On-screen report generation and upload to LinkWare application
Fluke Networks & TRS-RenTelco
TRS-RenTelco is a proud partner of Fluke Networks and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Fluke Networks allows us to ensure we have the right Optical Test solution for your job.
Renting Optical Test
With TRS-RenTelco renting Optical Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Fluke Networks.
- Configurations
- Resources
- FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Strap
Qty: 1 -
Barrel SC (Simplex)
Qty: 1 -
Barrel Simplex LC
Qty: 1 -
Cable USB-A - USB-MicroB
Qty: 1 -
Battery Pack 39Wh
Qty: 1 -
Launch Cable, Multimode, SC - LC, 50 micron, 100 Meters
Qty: 2 -
Launch Cable SC/UPC- LC/UPC Singlemode
Qty: 2 -
Hand Strap
Qty: 1 -
Module Quad OTDR
Qty: 1 -
Adapter SC Interchangeable
Qty: 2 -
Tip Universal Video 2.5 mm (U25)
Qty: 1 -
Tip for Patch Cords Universal 1.25 mm (U125)
Qty: 1 -
Tip Bulkhead LC (LC)
Qty: 1 -
Tip Bulkhead SC and FC (FS)
Qty: 1 -
Mainframe (No remote) Versiv
Qty: 1 -
Adapter Interchangeable for Source Port
Qty: 2 -
Video Probe USB FiberInspector
Qty: 1 -
Case Soft
Qty: 1 -
AC Adapter
Qty: 1 -
Box Fiber Tip
Qty: 1 -
Case Cube
Qty: 1 -
Software and Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Base Model
*This item has already been added to your cart. Check your cart for quantity and availability.
Fluke Versiv Series User Manual
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Fluke Networks OptiFiber Pro OFP-100-QI?
The Fluke Networks OptiFiber Pro OFP-100-QI is an OTDR (Optical Time-Domain Reflectometer) module that operates on the Versiv cabling certification platform. It is designed to locate, identify, and measure reflective and loss events in multimode and single-mode fiber optic cabling. The OptiFiber Pro module provides comprehensive fiber certification including OTDR testing, and can be paired with Quad OLTS and FiberInspector modules for complete fiber analysis.
What fiber test capabilities does the OptiFiber Pro provide?
The OptiFiber Pro provides OTDR testing to locate and characterize events such as connectors, splices, bends, and breaks in both multimode and single-mode fiber links. Key test modes include the standard OTDR Autotest, EventMap for a visual map of the fiber link, FaultMap for simplified fault finding, and SmartLoop for testing two fibers in a single pass. It also supports bi-directional OTDR testing and averaged bi-directional results.
What is the EventMap feature on the OptiFiber Pro?
EventMap is a feature that provides a visual, graphical representation of the fiber link under test, showing the physical layout and all detected events along the fiber. It translates the traditional OTDR trace into an easy-to-understand map that displays connectors, splices, and other events with their loss values and distances. This makes it accessible to technicians of all skill levels, not just OTDR experts.
What are the FaultMap and SmartLoop test modes?
FaultMap is a simplified OTDR test mode designed for quick fault finding that displays results in an easy-to-interpret visual format, helping technicians locate problems without needing deep OTDR expertise. SmartLoop allows testing of two fibers in a single OTDR test by looping them together at the far end, cutting the number of required connections and test time roughly in half. SmartLoop also supports bi-directional testing for more accurate results.
How does the OptiFiber Pro integrate with the Versiv platform?
The OptiFiber Pro OTDR module attaches to the Versiv or Versiv 2 mainframe, sharing the platform's 5.7-inch capacitive touchscreen, Taptive user interface, ProjX project management, and LinkWare Live cloud connectivity. This integration means test results can be uploaded to LinkWare Live over WiFi, managed alongside copper and fiber OLTS results, and compiled into professional reports using LinkWare PC software.
What standards and reporting does the OptiFiber Pro support?
The OptiFiber Pro provides PASS or FAIL results based on user-specified test limits derived from industry cabling standards. Results can be managed through the ProjX management system, which tracks job progress and completion status. LinkWare PC software generates professional test reports, and LinkWare Stats creates graphical statistical summaries of cable test data across entire projects.
What are the power and portability features of the OptiFiber Pro system?
The OptiFiber Pro module operates on the Versiv mainframe, which uses a lithium-ion battery pack providing approximately 8 hours of typical battery life. The mainframe with a module installed measures 2.625 x 5.25 x 11.0 inches and weighs 3 lbs 5 oz (1.28 kg). The charge time is approximately 4 hours from 10% to 90% capacity, and the system operates in temperatures from 0 degrees C to 45 degrees C.
What launch cord and connection considerations apply to OptiFiber Pro OTDR testing?
Proper OTDR testing with the OptiFiber Pro requires launch and tail cords to characterize the first and last connectors of the fiber link under test. The launch compensation function helps account for the launch cord in measurements. It is critical to keep all fiber connectors clean before every test to ensure reliable results, and a FiberInspector video probe can be connected to the Versiv mainframe to inspect endfaces before testing.
