AFL Global - Fujikura 90SPLUS
Single Fiber Fusion Splicer
Rent or Lease
AFL Global - Fujikura 90SPLUS

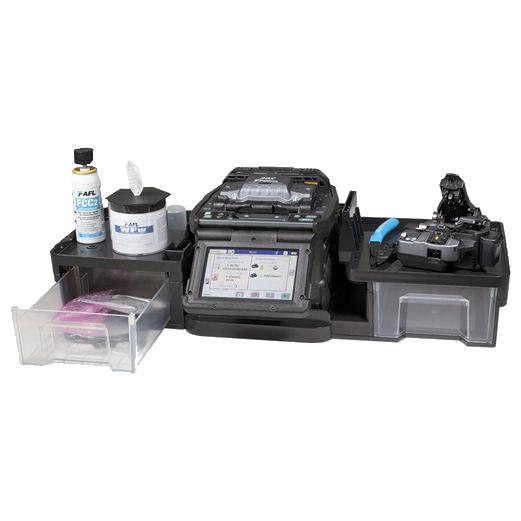

The AFL Global - Fujikura 90SPLUS is a core alignment fusion splicer that solves common problems seen in the field—from splicing poor quality legacy fiber to automated equipment maintenance and upkeep. The Fujikura 90S+ can be used in multiple field splicing applications including bend-insensitive fibers in drop cables, long-haul terrestrial and submarine LEAF® fibers, loose buffer fiber, splice-on connectors, and the list goes on..
90SPLUS Product Highlights
- Cleaver tracking and upkeep with wireless communication
- Improved real-time arc control for fibers with poor cleave angles
- Automated wind protector, sheath clamps and splice operation
- Loose and tight buffer with same sheath clamp
- Lithium-ion battery with 300 splices/shrinks per charge
- PC software and 90S+ manual downloaded from splicer
- Multi-function transit case with integrated workstation
AFL Global - Fujikura & TRS-RenTelco
TRS-RenTelco is a proud partner of AFL Global - Fujikura and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with AFL Global - Fujikura allows us to ensure we have the right Datacom Cable Test solution for your job.
Renting Datacom Cable Test
With TRS-RenTelco renting Datacom Cable Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 4,400 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | AFL Global - Fujikura
- Configurations
- Resources
- FAQsAI
--, CT-50
See Configuration Details
-
CT-50
CLEAVER
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Wrench Hex
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Sheath Clamp Universal Pair for 90S
Qty: 1 -
Cord Power 3-Prong Keyed
Qty: 1 -
Fiber Plate with Clamp for CT-50
Qty: 1 -
AC Adapter 12 V 7 A
Qty: 1 -
Battery Door AFL 90S
Qty: 1 -
90 Series 92Wh Battery Pack
Qty: 1 -
CT-50 cleaver case
Qty: 1 -
Cleaver CT50
Qty: 1 -
Electrode 90 Series (Set of 2)
Qty: 1 -
Fiber Scrap Box for CT-50
Qty: 1 -
Work Table J-Plate
Qty: 1 -
Battery AAA
Qty: 2 -
Carrycase (NOT A TRANSIT CASE)
Qty: 1 -
Fiber Holder Set Plate
Qty: 1 -
Stripper Single Fiber
Qty: 1 -
Strap Fusion Splicer
Qty: 1 -
Strap Carrycase
Qty: 1 -
Screwdriver TRS Logo
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Work Table Left
Qty: 1 -
Work Table Right
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, CT08
See Configuration Details
-
CT08
CLEAVER
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power 3-Prong Keyed
Qty: 1 -
Wrench Hex
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Screwdriver TRS Logo
Qty: 1 -
AC Adapter 12 V 7 A
Qty: 1 -
Strap Fusion Splicer
Qty: 1 -
Electrode 90 Series (Set of 2)
Qty: 1 -
Fiber Holder Set Plate
Qty: 1 -
Work Table Left
Qty: 1 -
Work Table J-Plate
Qty: 1 -
Work Table Right
Qty: 1 -
Strap Carrycase
Qty: 1 -
Plate Single Fiber for CT-50
Qty: 1 -
CT-08 Cleaver
Qty: 1 -
Fiber Scrap Box for CT-08
Qty: 1 -
TRANSIT CASE for CT08
Qty: 1 -
Sheath Clamp Universal Pair for 90S
Qty: 2 -
90 Series 92Wh Battery Pack
Qty: 1 -
Battery Door AFL 90S
Qty: 1 -
Carrycase (NOT A TRANSIT CASE)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Fiber Plate with Clamp for CT-50
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
AFL 90S+ User Manual
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Fujikura 90S+ and what fiber splicing applications does it support?
The Fujikura 90S+ is a core alignment fusion splicer designed for field splicing applications including bend-insensitive fibers in drop cables, long-haul terrestrial and submarine LEAF fibers, loose buffer fiber, and splice-on connectors. It uses active core alignment technology to achieve low splice losses with single-mode and multimode optical fibers. The splicer is suitable for both field installations and certain production environments where high output, tight packaging, and low loss requirements are critical.
What is Active Fusion Control and how does it improve splice quality?
Active Fusion Control (AFC) is a technology that analyzes fiber brightness intensity during fusion in real-time to control fusion power, compensating for environmental changes that affect arc behavior. The system also analyzes the cleave end face condition, which is a main cause of high splice loss, and automatically identifies the optimum splice parameters based on fiber type. AFC significantly improves splice losses for fibers with poor cleave angles, reducing the likelihood of poor splice installations.
How does Active Blade Management work with the 90S+ splicer?
Active Blade Management enables wireless communication between the Fujikura 90S+ splicer and the CT50 fiber cleaver to automatically track blade usage and condition. When the splicer detects blade wear by analyzing the fiber image, it sends a command to the cleaver to rotate the blade to the next available unconsumed position. The system displays remaining blade life, informs when blade height or position changes are needed, and alerts the operator if blade positions are changed by mistake, eliminating manual blade management decisions.
What battery life can I expect from the Fujikura 90S+ splicer?
The Fujikura 90S+ is equipped with a rechargeable lithium-ion battery (BTR-15) that provides approximately 300 splice and heat cycles per charge, which translates to extended battery life for full-day field operations.
What are the typical splice times for the 90S+ in different modes?
The Fujikura 90S+ offers multiple splice modes with varying speeds. In SM FAST mode for single-mode fiber, typical splice time averages 8 to 10 seconds. SM AUTO mode takes approximately 11 to 13 seconds, while the standard AUTO mode averages 14 to 16 seconds. These fast splice times, combined with the automated wind protector and sheath clamps, help maximize productivity in the field.
What fiber types and coating diameters does the 90S+ support?
The Fujikura 90S+ supports single-mode and multimode optical fibers with cladding diameters from 80 to 150 micrometers. The universal sheath clamp handles both loose and tight buffer fibers with coating diameters up to 3,000 micrometers and cleave lengths from 5 to 16 mm. It achieves excellent splice loss performance across ITU-T standards including G.652 (average 0.02 dB), G.651 (0.01 dB), G.653 (0.04 dB), G.654 (0.04 dB), G.655 (0.04 dB), and G.657 (0.02 dB).
What automated features does the 90S+ include to simplify operation?
The 90S+ includes extensive automation to reduce manual tasks. Automatic functions include splice mode selection by fiber type analysis, discharge power calibration, wind protector open and close, sheath clamp opening, heater lid open and close, and heater clamp operation. The 5-inch TFT touchscreen with 200 to 320x magnification displays video and PDF reference guides stored directly in the splicer, further simplifying operation for technicians in the field.
What are the physical dimensions and operating temperature range of the 90S+?
The Fujikura 90S+ measures approximately 170 mm width by 173 mm depth by 150 mm height (without projections) and weighs approximately 2.8 kg including the battery. It operates in temperatures from negative 10 to 50 degrees Celsius and can be stored in temperatures from negative 40 to 80 degrees Celsius. Operating and storage humidity is 0 to 95 percent relative humidity non-condensing, and it can operate at altitudes up to 5,000 meters.
