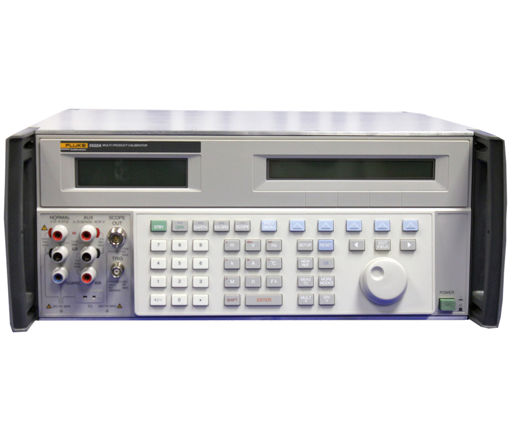

Fluke 5522A-SC1.1G
Multi-Product Calibrator
Rent or Lease
Fluke - 5522A-SC1.1G
The Fluke 5522A-SC1.1G Multi-Product Calibrator addresses a wide calibration workload and comes with internal and external protection features that protect it against damage and make it easier to transport for on-site or mobile calibration. The 5522A-SC1.1G can also be fully automated with MET/CAL Plus Calibration Management Software (version 7.3 SP1 or later).
It is the ideal calibrator for metrology professionals who need to perform resistance calibration, voltage calibration, current calibration and more, a current calibrator and much more. It sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current to simulate dc and ac power with phase control, resistance, capacitance, thermocouples and RTDs.
The Fluke Calibrator 5522A can also measure thermocouple temperature, and pressure using one of 29 Fluke 700 Series pressure modules. Two options add the capability to calibrate oscilloscopes either 600 MHz or 1.1 GHz. And the 5520A-PQ Power Quality Option enables the 5522A-SC1.1G to calibrate power quality instrumentation to the standards of the IEC and other regulatory agencies.
5522A-SC1.1G Product Highlights
- Multi-product calibrator covers many of the electronic test tools you use to keep your company up and running, including:
- Handheld and bench meters (analog and digital) up to 6 digits
- Current clamps and clamp meters
- Thermocouples and RTDs
- Process calibrators
- Data loggers
- Strip and chart recorders
- Watt meters
- Power harmonics analyzers
- Panel meters
- Graphical multimeters
- Power quality analyzers (with option)
- Analog or digital handheld and bench oscilloscopes to 600 MHz or 1.1 GHz (with options)
Fluke & TRS-RenTelco
TRS-RenTelco is a proud partner of Fluke and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Fluke allows us to ensure we have the right Power Sources solution for your job.
Renting Power Sources
With TRS-RenTelco renting Power Sources equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Fluke.
- Configurations
- Resources
- FAQsAI
--, SC1.1G
See Configuration Details
-
SC1.1G
1.1 GHz Scope Calibrator
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Accessory Pouch
Qty: 1 -
Cable RF N(m) - BNC(m) 3 ft
Qty: 1 -
Cable BNC with Suppression 3 ft
Qty: 1 -
CD Manuals
Qty: 1 -
Transit Case
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Base Model
*This item has already been added to your cart. Check your cart for quantity and availability.
Show More
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What types of instruments can the Fluke 5522A calibrate?
The 5522A calibrates handheld and bench meters up to 6.5 digits, current clamps, thermocouples, RTDs, process calibrators, data loggers, strip and chart recorders, watt meters, power harmonics analyzers, panel meters, and graphical multimeters. With options, it can also calibrate power quality analyzers and oscilloscopes to 600 MHz or 1.1 GHz.
What voltage ranges does the Fluke 5522A Multi-Product Calibrator output?
The 5522A sources direct voltage from 0 to ±1020 V and alternating voltage from 1 mV to 1020 V across frequencies from 10 Hz to 500 kHz. The volt-hertz product is 1000 V at 10 kHz and 330 V at 100 kHz, providing wide coverage for voltage calibration applications.
Can the Fluke 5522A source temperature signals for calibration?
Yes, the 5522A can source and measure thermocouple signals for types B, C, E, J, K, L, N, R, S, T, and U with 10 μV/°C resolution. It also sources RTD temperature signals for various types including Pt 385-100 Ω, Pt 3926-100 Ω, Pt 3916-100 Ω, and other platinum, platinum-nickel, and copper RTDs.
How does the protective circuitry on the Fluke 5522A work?
The 5522A provides robust protection circuits including reverse power protection, immediate output disconnection, and fuse protection on all output terminals for all functions. This protection covers applied external voltages up to ±300 V peak, preventing costly damage from operator errors and making it safer to transport and use.
What current output capabilities does the Fluke 5522A provide?
The 5522A outputs direct current from 0 to 20.5 A and alternating current from 29 μA to 20.5 A across frequencies from 10 Hz to 30 kHz. It supports multiple waveforms including sine, square, triangle, and truncated sine, providing versatile current calibration capabilities for a wide range of instruments.
Can the Fluke 5522A be used for calibrating pressure instruments?
Yes, the 5522A can measure pressure using one of 29 Fluke 700 Series pressure modules. This capability allows you to calibrate pressure gauges and transducers in addition to electrical parameters, making it a truly multi-product calibrator that extends beyond purely electrical calibration workload.
What are the interface options on the Fluke 5522A?
The 5522A includes RS-232 and IEEE 488 interfaces for remote operation and automation. It features phase lock capability, external frequency reference input at 10 MHz, and frequency uncertainty less than 2.5 ppm. The unit can be fully automated with MET/CAL Plus Calibration Management Software version 7.3 SP1 or later.
Does the Fluke 5522A support oscilloscope calibration?
Yes, with optional oscilloscope calibration options, the 5522A can calibrate analog or digital handheld and bench oscilloscopes. The 600 MHz option provides a levelled sine wave from 5 mV to 5.5 Vpp with frequencies to 600 MHz, while the 1.1 GHz option extends to 1100 MHz at 3.5 Vpp, with edge rise times under 300 ps and multiple trigger functions.
