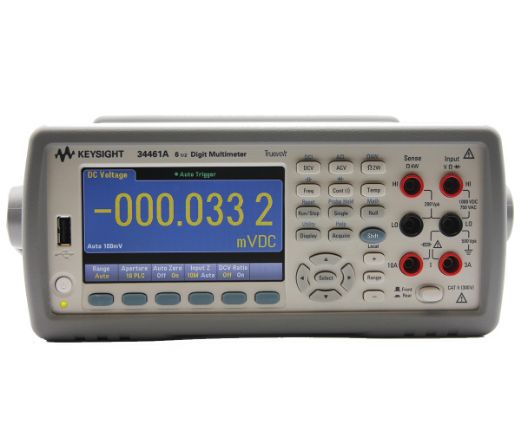

Keysight Technologies 34461A

6-1/2 DMM 11 func: DC/AC volt, DC/AC cur, 2/ 4-wire Diode,

The Keysight (formerly Agilent) 34461A multimeter expedites statistical analysis and graphical monitoring. It offers patented Truevolt technology that accounts for real-world factors for measurement accuracy and boasts unmatched display and measurement capabilities for low-power devices. Easily document and save results directly from the instrument and export to MS Excel, MS Word, and MATLAB. Perform test documentation and analyze data without any programming.

Features and Specifications

  • Basic DCV accuracy: 0.0035 percent 0.0005, one year.
  • Basic ACV accuracy: 0.06 percent
  • 6-1/2-digit resolution
  • Measure up to 1,000 VDC, 750 VAC
  • Resistance range: 100 ohms to 100 M ohms
  • DC current range: 100 uA to 10A
  • Capacitance range: 1 nF to 100 uF
  • Color graphical display with number, histogram, bar chart, trend chart, math, and statistics
  • 100 percent drop-in, SCPI compatible
  • Interfaces: USB, LAN/LXI, optional GPIB
  • Memory: 1,000 readings per second
  •  Maximum reading: 10,000
  • Front-panel USB
  • 12 measurement functions: AC/DC voltage and current, ACI, DCI, two- and four-wire resistance, frequency, period, continuity, diode, current, temperature, and capacitance
  • Front and rear input terminals

For the full table of specifications, see the Keysight Technologies data sheet. If you are looking for a device capable of automatic calibration (ACAL), check the Keysight model 34465A.

Keysight Technologies 34461A Accessories

  • 34138A test lead set with banana plugs
  • USB cable
  • Power cord
  • Certificate of calibration
  • SMT grabbers and mini grabber attachments
  • I/O libraries CD
  • BV0001B DMM app

Optional accessories:

  • 34190A rack-mount kit
  • 11059A Kelvin clip set
  • DC-coupled current probe
  • PT100/RTD four-wire class A sensor kit
  • PT100/RTD four-wire class sensor elements
  • 2U dual-flange kit
  • Dual-lock link kit
  • 34162A accessories pouch kit
  • 34133A precision electronic test leads

Ask about our full range of optional accessories.

What Are the Benefits of Truevolt DMM Technology?

Truevolt is a patented, analog-to-digital converter technology that helps eliminate measurement errors created by real-world factors, such as:

  • AC signal riding on top from power line noise
  • Environmental noise
  • Injected current from the DMM

The Truevolt series of digital multimeters allows you to focus on the quality of your product or device under test (DUT), rather than the quality of the measurements.

How Much Does the 34461A Digital Multimeter Cost?

The list price is $1,200, but the final price depends on the accessories, shipping, offers, and discounts available on the product value. If you need it only for a short-term project, renting the 34461A DMM is a much more inexpensive alternative. Talk to our team for a custom price.

Order Keysight (formerly Agilent) 34461A multimeters or explore our full range of digital multimeters online at TRS-RenTelco. If you want a high-resolution handheld DMM, check out the 50,000-count Keysight U1252A.

Fill out this contact form to ask for a quick quote, or simply add the items to the cart. You can also call us at 800.874.7123 today.
