Hioki PQ3100-02/600
Power Quality Analyzer Kit 4 Clamps 600A
Rent or Lease

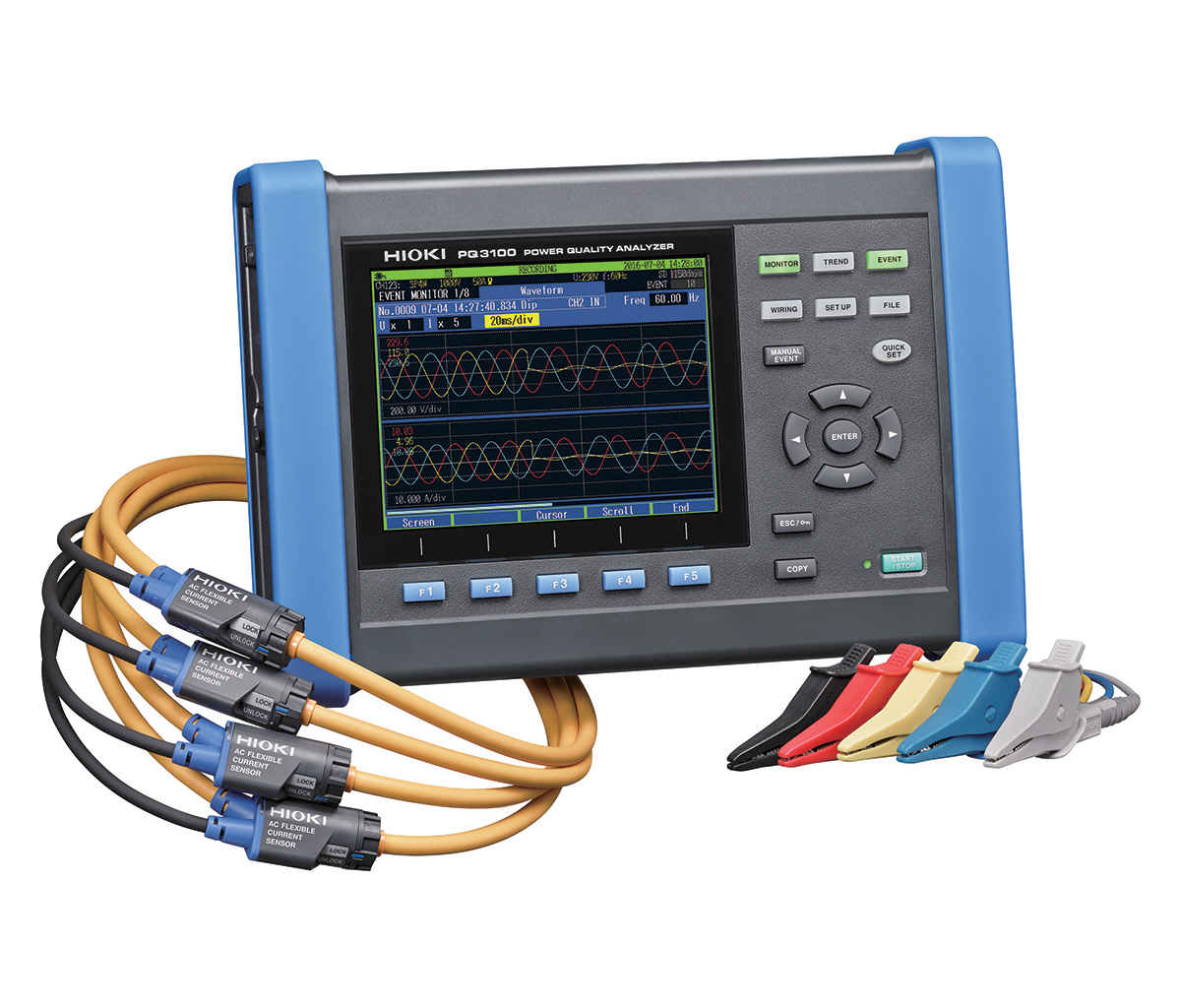

The Hioki PQ3100-02/600 is a 600 ampere, 4 clamp power quality analyzer kit that allows users to record and analyze power supply data from a single, power-packed instrument.
Key Features:
- Record data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis (Flicker recording available in future firmware update)
- Measure up to 600 A AC
- Capture all power anomalies, including instantaneous outages, voltage drops, and frequency fluctuations, while simultaneously recording trend data
- Quick Set: Easy-to-understand on-screen guide for measurement procedures
- Bundled PQ ONE application software makes it easy to create reports
- Record waveforms for up to 1 second before and 10 seconds after an anomaly occurs
- Accurately measure DC currents over extended periods of time (with an optional AC/DC auto-zero current sensor)
- Directly supply power to connected current sensors
You can rent or lease the Hioki PQ3100-02/600 from TRS-RenTelco with technical support. All our test equipment are calibrated to industry standards to ensure accurate results. Contact us or Request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
Card Reader
Qty: 1 -
Sensor AC Current 600 A 46 mm
Qty: 4 -
Memory Card SD 8 GB
Qty: 1 -
Manual Measurement Guide
Qty: 1 -
Cord Kit Voltage
Qty: 1 -
AC Adapter Input 100-240V~47-63Hz 1.62-072A; Output 12V... 5.25A
Qty: 1 -
Battery Pack Nickel-Metal Hydride 32.4 W 7.2 V 4500 mAh
Qty: 1 -
Carrycase Hard Plastic
Qty: 1 -
Software and Manuals on USB
Qty: 1
