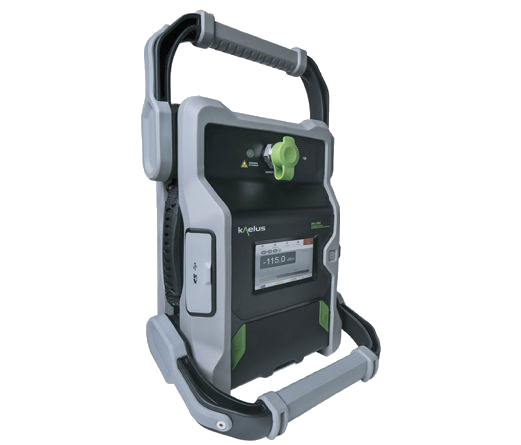

Kaelus IPA-0600D
PIM Test Set 600 MHz, 40 W
Battery Portable Passive Intermodulation Analyzer
The iPA Series Passive Intermodulation (PIM) analyzer is the first battery powered PIM Test Analyzer versatile enough to support multiple test scenarios such as testing at the top of the tower, base of tower, roof top and in-building for DAS systems. This IEC compliant 40W, rugged, battery operated design can be operated via remote control with any WiFi enabled phone, tablet or laptop computer. This allows hands-free dynamic testing that is safe and convenient. Add the optional Range to Fault RTF) module to quickly identify the location of PIM and Return Loss sources. Evolved from a design legacy of field proven analyzers, this PIM Analyzer enables network operators to improve site performance by finding and eliminating sources of passive intermodulation at the cell site. An intuitive touch screen interface is also available for local control, performing tests and quickly generating site reports.
Features
- Rugged and reliable; designed with tower climbers in mind
- Fully configurable frequencies, powers and IM products
- Remote control possible with handheld device, eg tablet, cell phone
- Simple to operate touch screen interface
- Extensive reporting capabilities
- Spectrum monitor, frequency sweep and time trace modes
- RTF compatible
- Battery powered
- D Series 46dBm (40W) Output Power
- Configurations
- Resources
-, R92-0287, R92-0443, R92-0445
See Configuration Details
-
R92-0287
Battery IPA (Quantity 2 pcs )
-
R92-0443
Dual Battery Charging Cradle
-
R92-0445
Hard Case Assembly IPA
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Battery Lithium Ion
Qty: 3 -
Cradle Dual Charging
Qty: 1 -
Case Hard
Qty: 1 -
Adapter 7/16 Din(m) - 7/16 Din(f)
Qty: 1 -
AC Adapter
Qty: 1 -
Memory Card SDHC 4GB Or Greater
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Carabiner with Screw Keylock
Qty: 2 -
Cable USB-A - USB-MiniB
Qty: 1 -
Antenna WiFi
Qty: 1 -
Strap Shoulder
Qty: 1 -
Tablet and Accessories
Qty: 1 -
Charger Car USB
Qty: 1
