Kaelus IPA-1921A
PIM Test Set 1900 MHz / 2100 MHz, 20 W, 7/16 DIN(f)
Rent or Lease
Kaelus - IPA-1921A

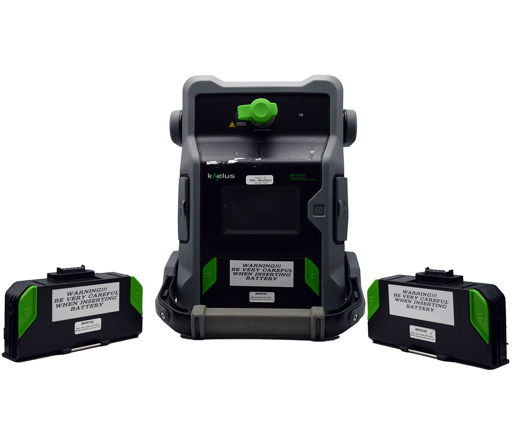

The Kaelus IPA-1921A is a battery powered PIM Test Analyzer. The Kaelus IPA-1921A PIM tester is versatile enough to support multiple test scenarios such as testing at the top of the tower, base of tower, roof top and in-building for DAS systems.
IPA-1921A Product Highlights
- Rugged and reliable; designed with tower climbers in mind
- Fully configurable frequencies, powers and IM products
- Remote control possible with handheld device, e.g. tablet, cell phone
- Simple to operate touch screen interface
- Extensive reporting capabilities
- Spectrum monitor, frequency sweep and time trace modes
- RTF compatible
- Battery powered
- 0.1 to 20W
Kaelus & TRS-RenTelco
TRS-RenTelco is a proud partner of Kaelus and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Kaelus allows us to ensure we have the right Wireless Test solution for your job.
Renting Wireless Test
With TRS-RenTelco renting Wireless Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Kaelus.
- Configurations
- Resources
- FAQsAI
-, R92-0287, R92-0443, R92-0445
See Configuration Details
-
R92-0287
Battery IPA (Quantity 2 pcs )
-
R92-0443
Dual Battery Charging Cradle
-
R92-0445
Hard Case Assembly IPA
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable USB-A - USB-MiniB
Qty: 1 -
Battery Lithium Ion
Qty: 3 -
Cradle Dual Charging
Qty: 1 -
Case Hard
Qty: 1 -
Strap Shoulder
Qty: 1 -
Carabiner with Screw Keylock
Qty: 2 -
Adapter 7/16 Din(m) - 7/16 Din(f)
Qty: 1 -
Antenna WiFi
Qty: 1 -
AC Adapter
Qty: 1 -
Memory Card 8 GB
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
-
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable USB-A - USB-MiniB
Qty: 1 -
Battery Lithium Ion
Qty: 1 -
Memory Card
Qty: 1 -
Strap Shoulder
Qty: 1 -
Carabiner with Screw Keylock
Qty: 2 -
Adapter 7/16 Din(m) - 7/16 Din(f)
Qty: 1 -
Antenna WiFi
Qty: 1 -
AC Adapter
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
ConcealFab Product Guide
Kaelus IPA Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What frequency ranges does the Kaelus iPA-1921A support for dual band testing?
The iPA-1921A supports dual band PCS/AWS testing with TX1 range from 1930 to 1950 MHz and TX2 range from 1970 to 1990 MHz (B series model also supports 2110 to 2155 MHz). The receive range for PIM measurements covers 1850 to 1910 MHz for A series and 1710 to 1755 MHz for B series, making it suitable for comprehensive dual band cellular site testing.
How is the iPA-1921A powered and what is the typical battery life?
The iPA-1921A uses removable 25.9 VDC, 2600 mAh, 67Wh lithium-ion battery packs for portable operation. Each battery pack provides a minimum of 2 hours of operating time depending on usage patterns. The unit includes a battery charger with 29.4 VDC, 1.2 Amp output for recharging.
What is the residual PIM performance of the iPA-1921A?
The iPA-1921A delivers excellent residual PIM performance with a maximum of less than -117 dBm or -160 dBc. Typical performance is even better at less than -125 dBm or -168 dBc, allowing detection of very low level passive intermodulation sources that could impact network performance.
Can the iPA-1921A be operated remotely without physical access to the unit?
Yes, the iPA-1921A features remote control capability via WiFi, allowing hands-free operation using any WiFi enabled phone, tablet, or laptop computer with a web browser. This is particularly valuable for dynamic testing at the top of towers or in other hard to reach locations where hands-free operation improves safety and convenience.
What is the adjustable power range for the iPA-1921A?
The A series models offer adjustable power per tone from 0.1 to 20W (ranging from +20 to +43 dBm in 1 dB increments), while the B series models provide lower starting power from 0.003 to 20W (+5 to +43 dBm in 1 dB increments). This wide power range allows testing under various conditions to match real world deployment scenarios.
What environmental conditions can the iPA-1921A withstand during field use?
The iPA-1921A is designed for rugged field use with an operating temperature range from -10 degrees C to +45 degrees C and operational humidity up to 95% RH non-condensing. It has an IP54 ingress protection rating standard, which increases to IP67 when enclosed in the optional hard case, and is built to withstand 40G shock rating for durability during transport and tower work.
How accurate is the frequency and power output of the iPA-1921A?
The iPA-1921A provides frequency accuracy of plus or minus 5 ppm maximum with aging of plus or minus 1 ppm maximum after the first year. Power accuracy per tone is plus or minus 0.5 dB maximum. Frequency can be set in 100 kHz increments, providing precise control for testing specific channel conditions.
Which Range to Fault module is compatible with the iPA-1921A?
The iPA-1921A is compatible with the RTF-2000 Range to Fault module. This module enables users to measure distance to both return loss faults and PIM faults, significantly speeding up troubleshooting by pinpointing the exact location of problematic components in the RF path.
