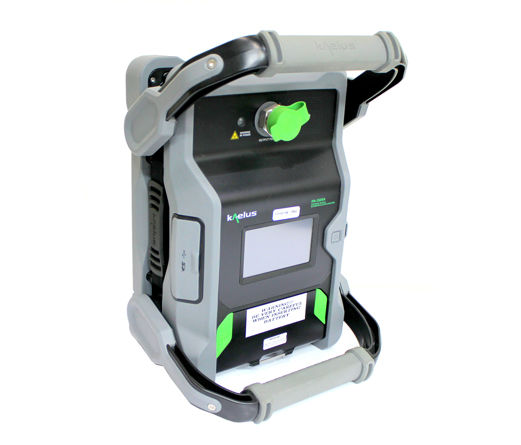

Kaelus IPA-2600A

PIM Test Set 2600 MHz, 20 W, 7/16 DIN(f)

The Kaelus iPA-2600A is a battery powered, high-power PIM Test Analyzer that is IEC compliant, portable, rugged, and reliable. Adapted to support multiple test scenarios, the Kaelus iPA-2600A can be employed for testing at the top of the tower, base of tower, roof top and in-building for DAS systems.

The Kaelus iPA-2600A PIM Analyzer produces transmission and receiving band frequencies that range from approximately 2600-2700MHz (LTE 2600). Each iPA-2600A comes equipped with a protected touch screen interface for local control. The inclusion of a tablet computer as a remote control for hands-free dynamic testing makes the Kaelus iPA-2600A, a safe, easy and efficient portable instrument for field testing experience.

Kaelus iPA-2600A - Features and Specifications:

  • Transmitter Power accuracy: (per tone) plus/neg 0.5dB (max)
  • Receiver Measurement range: -50dBm to -128dBm
  • Reverse (reflected) PIM, 3rd and 5th order measurement technique
  • Remote control (included) - 7 inch tablet computer
  • 4.3in (109mm) Touch screen interface
  • RL Alarm feature - Automatic recognition and shut down on high return loss detection
  • Spectrum monitor, frequency sweep and time trace modes
  • RTF compatible
  • Battery powered with 25.9VDC, 2500mAH Li-ion battery packs (removable)

You can rent or lease the Kaelus iPA-2600A at TRS-RenTelco with 365-day customer support.

The latest test equipment - We are constantly investing in new equipment to support emerging technologies that require electronic test and measurement equipment. We are often the first to buy newly introduced products from top T&M manufacturers.

TRS-RenTelco is an authorized distributor of ConcealFab PIM Hunting and Mitigation Soluitions.  See the catalog on the resource tab.

Read More
  • Configurations
  • Resources
-, R92-0287, R92-0443, R92-0445
See Configuration Details
  • R92-0445

    Hard Case Assembly IPA

  • R92-0287

    Battery IPA (Quantity 2 pcs )

  • R92-0443

    Dual Battery Charging Cradle

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cable USB-A - USB-MiniB

    Qty: 1
  • Battery Lithium Ion

    Qty: 3
  • Cradle Dual Charging

    Qty: 1
  • Case Hard

    Qty: 1
  • Charger Car USB

    Qty: 1
  • Strap Shoulder

    Qty: 1
  • Carabiner with Screw Keylock

    Qty: 2
  • Adapter 7/16 Din(m) - 7/16 Din(f)

    Qty: 1
  • Antenna WiFi

    Qty: 1
  • Tablet and Accessories

    Qty: 1
  • AC Adapter

    Qty: 1
  • Memory Card SDHC 4GB Or Greater

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
