Keithley 6487

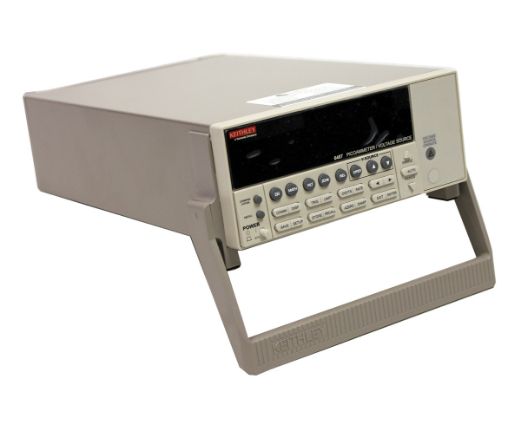

The 5-1/2 Digit Model 6487 Picoammeter/Voltage Source
Get improved measurement capabilities with an added high-resolution 500 V source, with the Keithley 5-1/2 digit model 6487 Picoammeter/Voltage Source.
With eight-current measurement ranges and high-speed autoranging, the 6487 can measure currents from 20 fA to 20 mA, make measurements at speeds up to 1,000 readings per second, and source voltage from 200 uV to 505 V. The 6487's 10 fA resolution, superior sensitivity, voltage sweeping, and alternating voltage resistance measurements make it well suited for characterizing low current devices.
With high accuracy, fast rise times, and a damping function, the Keithley 6487 is an excellent solution for applications, including beam and radiation monitoring, leakage current testing, galvanic coupling measurements, I-V characterization on semiconductor and optoelectronic devices, fiber alignment, sensor characterization, and capacitor leakage.
Keithley 6487 Features and Specifications:
- 10fA resolution
- 5-1/2 digit resolution
- 200uV to 500V source
- <200?V burden voltage
- Alternating voltage method ohms measurements
- Automated voltage sweeps for I-V characterization
- Floating measurements up to 500 V
- Up to 1,000 readings/second
The Keithley 6487 Picoammeter/Voltage Source is available for rent or lease at TRS-RenTelco with 24/7 customer support. Contact us at 800-874-7123 for more information.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable Triax(m) - Triax(m) 3 m 3 Lug
Qty: 1 -
Test Leads Red/Black 1 kV
Qty: 1 -
Cable Adapter Banana(m) - Screw Terminal
Qty: 1 -
Connector Interlock
Qty: 1 -
Protective Shield/Connector Cap BNC(m)
Qty: 1 -
Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keithley 6487 Spec Sheet
