Anritsu MT9083A2-VZW-CTR1
Optical test platform - SM (1310,1550), MM (850,1300) OTDR
Rent or Lease • Buy Used From $4,000

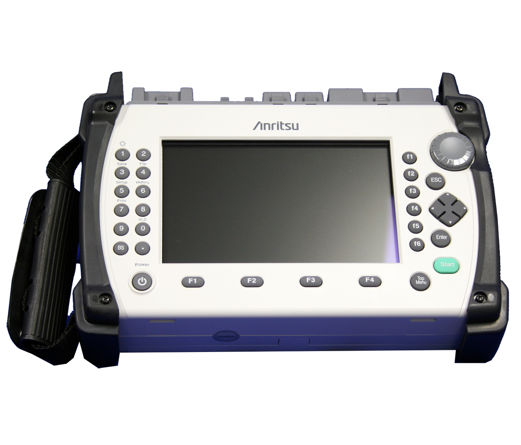

Anritsu - MT9083A2-VZW-CTR1
The Anritsu MT9083A2-VZW-CTR1 is a cutting-edge Optical Time-Domain Reflectometer (OTDR) that can be applied to the testing and installation of FTTx, CATV, LAN, Access, and Metro Networks. The ACCESS Master MT9083A2 features a 7-inch widescreen TFT-LCD display for use both indoors and outdoors, enhanced battery operation time (up to 12 hours) increased operating temperature range (-10 to 50C) and short-cut function keys.
MT9083A2-VZW-CTR1 Product Highlights
• Ready to test in less than 15 seconds...and all day without recharging
• Specialized testing modes simplify operation
• High resolution and high dynamic range ensure thorough and complete fiber evaluation
• Intelligent analysis software identifies problem splices, connectors and even macrobends
• Rugged, sealed design provides years of service in the most challenging environments
• Test up to four wavelengths with a single unit and single mode, multimode
• Verify connector quality with optional connector inspection microscope
• SCPI remote command support
• Feature offering easy graphical summary & PDF reporting
• Password protection feature for important file on-internal memory
Anritsu & TRS-RenTelco
TRS-RenTelco is a proud partner of Anritsu and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Anritsu allows us to ensure we have the right Optical Test solution for your job.
Renting Optical Test
With TRS-RenTelco, renting Optical Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Links to Additional Information
Anritsu Products from TRS-RenTelco
Other Optical Test from TRS-RenTelco
- Configurations
- Resources
- FAQsAI
--, 002, 007, 010, 040, 063, B0583A, G0306A
See Configuration Details
-
010
Protector Option (Includes Side Bumpers, Display Cover & Shoulder Strap)
-
002
Visible Light Source
-
007
SM/MM Optical Power Meter (UPC/APC, +6 To -67 dBm)
-
040
SC/UPC Connector
-
063
OTDR With Quad Hybrid 39/37.5 dB 1310/1550 nm Single Mode & 29/28 dB 850/1300 nm 62.5 um Multimode Optics, Stabilized Light Source
-
B0583A
Hard Carry Case
-
G0306A
Visual Inspection Probe
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power 3-Prong Keyed
Qty: 1 -
Adapter SC for Power Meter
Qty: 1 -
Barrel Duplex SC
Qty: 2 -
Barrel Duplex LC/LC
Qty: 4 -
Adapter SC
Qty: 2 -
Backpack
Qty: 1 -
ONE CLICK, 1.25mm
Qty: 1 -
Tip APC for G0306A (2.5nn/APC)
Qty: 1 -
Tip Video Inspection probe (UPC1.25mm)
Qty: 1 -
Tip for G0306A (LC/UPC)
Qty: 1 -
Tip for Video Inspection Probe, (2.5mm/APC)
Qty: 1 -
Tip FC Video Inspection Probe (FC/PC)
Qty: 1 -
Tip SC for G0306A (SC/PC)
Qty: 1 -
Case Plastic
Qty: 1 -
Belt Pouch for G0306A Video Inspection Probe
Qty: 1 -
Tip for Video Inspection Probe, (UPC2.5mm)
Qty: 1 -
Adapter SC/APC Duplex Singlemode
Qty: 2 -
Terminator LC/UPC Singlemode Black Hole Connector
Qty: 2 -
Case Compartmentalized
Qty: 1 -
Launch Fiber Singlemode SC/UPC - LC/UPC 50 meter
Qty: 1 -
Jumper Simplex SC/LC Multimode 50 um 10 m Orange
Qty: 2 -
Jumper Simplex SC/LC Singlemode 10 m Yellow
Qty: 1 -
Jumper Duplex LC/LC - LC/LC Singlemode 10 m
Qty: 2 -
Jumper Simplex SC/SCA Singlemode 10 m Yellow
Qty: 1 -
Battery Lithium Ion 11.1 V 56 W
Qty: 1 -
Cover Protection
Qty: 1 -
Adapter Plug-In SC-LC Singlemode
Qty: 1 -
Adapter Plug-In SC-LC Multimode
Qty: 1 -
Case Hard with Foam and Carry Strap
Qty: 1 -
Power Supply
Qty: 1 -
Probe Video Inspection 400x
Qty: 1 -
Barrel Duplex Singlemode LC
Qty: 2 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 002, 007, 010, 040, 063, B0583A, G0306B
See Configuration Details
-
010
Protector Option (Includes Side Bumpers, Display Cover & Shoulder Strap)
-
002
Visible Light Source
-
007
SM/MM Optical Power Meter (UPC/APC, +6 To -67 dBm)
-
040
SC/UPC Connector
-
063
OTDR With Quad Hybrid 39/37.5 dB 1310/1550 nm Single Mode & 29/28 dB 850/1300 nm 62.5 um Multimode Optics, Stabilized Light Source
-
B0583A
Hard Carry Case
-
G0306B
Visual Inspection Probe
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power 3-Prong Keyed
Qty: 1 -
Adapter SC for Power Meter
Qty: 1 -
Barrel Duplex SC
Qty: 2 -
Barrel Duplex LC/LC
Qty: 4 -
Adapter SC
Qty: 2 -
Backpack
Qty: 1 -
ONE CLICK, 1.25mm
Qty: 1 -
Tip APC for G0306A (2.5nn/APC)
Qty: 1 -
Tip Video Inspection probe (UPC1.25mm)
Qty: 1 -
Tip for G0306A (LC/UPC)
Qty: 1 -
Tip for Video Inspection Probe, (2.5mm/APC)
Qty: 1 -
Tip FC Video Inspection Probe (FC/PC)
Qty: 1 -
Tip SC for G0306A (SC/PC)
Qty: 1 -
Case Plastic
Qty: 1 -
Belt Pouch for G0306A Video Inspection Probe
Qty: 1 -
Tip for Video Inspection Probe, (UPC2.5mm)
Qty: 1 -
Adapter SC/APC Duplex Singlemode
Qty: 2 -
Terminator LC/UPC Singlemode Black Hole Connector
Qty: 2 -
Case Compartmentalized
Qty: 1 -
Launch Fiber Singlemode SC/UPC - LC/UPC 50 meter
Qty: 1 -
Jumper Simplex SC/LC Multimode 50 um 10 m Orange
Qty: 2 -
Jumper Simplex SC/LC Singlemode 10 m Yellow
Qty: 1 -
Jumper Duplex LC/LC - LC/LC Singlemode 10 m
Qty: 2 -
Jumper Simplex SC/SCA Singlemode 10 m Yellow
Qty: 1 -
Battery Lithium Ion 11.1 V 56 W
Qty: 1 -
Cover Protection
Qty: 1 -
Adapter Plug-In SC-LC Singlemode
Qty: 1 -
Adapter Plug-In SC-LC Multimode
Qty: 1 -
Case Hard with Foam and Carry Strap
Qty: 1 -
Power Supply
Qty: 1 -
Probe Video Inspection 400x
Qty: 1 -
Barrel Duplex Singlemode LC
Qty: 2 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What wavelengths does the MT9083A2 ACCESS Master support for fiber testing?
The MT9083A2 supports dual fiber testing with 850/1300 nm wavelengths for multimode fiber and 1310/1490/1550/1625/1650 nm wavelengths for single mode fiber. This all-in-one capability allows you to test both SM and MM fiber networks without switching equipment, making it ideal for diverse network installations including FTTx, CATV, LAN, access and metro networks.
What dynamic range does the MT9083A2 provide for PON network testing?
The MT9083A2 delivers up to 39 dB dynamic range with full 1x64 PON splitter support. This general purpose, enhanced range model features dual-mode operation with High Resolution (HR) mode providing industry-leading deadzone performance under 1 meter, and Enhanced Range (ER) mode for PON measurements. The high dynamic range combined with quick data acquisition enables accurate resolution of single or cascaded splitters.
How long does the MT9083A2 battery last in field use?
The MT9083A2 provides up to 12 hours of operation on a single battery charge under typical field conditions. The unit is ready to test in about 15 seconds after power-on, and the long battery life ensures productive work throughout the day without needing AC power. An optional car cord is also available for cigarette lighter operation when needed.
What is the Fiber Visualizer function on the MT9083A2?
Fiber Visualizer is a simplified fault location function that automatically selects testing parameters and provides an easy-to-understand graphical summary of the fiber under test within seconds. It displays fiber events as schematic icons showing splices, connectors, and splitters along with distance and loss information. The function includes automatic Pass/Fail evaluation and can generate comprehensive PDF reports directly on the instrument.
What data storage capacity does the MT9083A2 offer?
The MT9083A2 features 440 MB of internal memory capable of storing up to 1,000 OTDR traces. When using external USB memory devices, you can store up to 30,000 traces with a 512 MB device. This generous storage capacity is ideal for collecting and managing large amounts of data during fiber construction and maintenance projects.
Can the MT9083A2 perform in-service testing on live fiber?
Yes, the MT9083A2 includes Active Fiber Check that verifies if light is present on the fiber before starting measurement. This prevents potential damage to transmitters and OTDR receivers. The unit features unique in-service testing capabilities without requiring external filters, and provides on-screen warnings along with internal OTDR protection when optical signals are detected.
What operating temperature range does the MT9083A2 support?
The MT9083A2 operates across a wide temperature range from negative 10 degrees to positive 50 degrees Celsius. Storage temperature range extends from negative 20 degrees to positive 60 degrees Celsius. The rugged, sealed design with no fans or vents prevents dust and moisture ingress, and the unit meets MIL-T-28800E Class 3 vibration standards and IP51 drip-proof specifications.
What is the deadzone performance of the MT9083A2 in High Resolution mode?
In High Resolution mode, the MT9083A2 achieves a Fresnel deadzone of 1 meter or less (typically 80 cm) and backscatter deadzone of 3.8 to 5.5 meters depending on wavelength. This industry-leading deadzone performance allows accurate measurement of closely spaced events in the fiber network. The unit also collects up to 150,001 data points with 5 cm minimum sampling resolution for exceptional detail.
