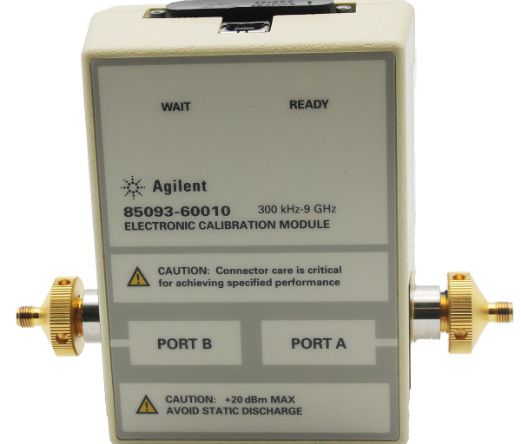

Keysight Technologies 85093C

2-port, 300 kHz - 9 GHz, 3.5 mm RF ECal Module

The Keysight (formerly Agilent) 85093C RF electronic calibration (ECal) is a precision, single connection calibration-based module that makes calibration of vector network analyzers fast, easy, and accurate.

Performing a full two-port calibration using Ecal takes less than half the time and number of connections compared to mechanical kits. The accuracy of calibrations performed using Ecal is even comparable to electronic and mechanical methods.

With the 85093C electronic calibration module, you can avoid errors commonly encountered in traditional mechanical calibration. It minimizes intensive operator interaction as it relies on a software to control the entire module. Simply connect the Ecal module to the network analyzer and let the software take charge.

The new 85093C RF electronic calibration system is now offers more control over your network analyzer. You can choose either a USB interface or an 85097B interface to control your network module.

The Keysight (formerly Agilent) PNA and ENA series of network analyzers controls the module through a USB interface-while the Keysight (formerly Agilent) 8753E/ES/ET network analyzers require an 85097B interface kit. With highly reliable transfer standards, you can use the ECal module to transfer the factory calibration accuracy to your network.

Keysight 85093C - Features and Specifications

  • Fast full two-port calibration with a single connection
  • Simple non-insertable device calibration
  • NIST traceable accurate calibrations
  • Reduced connector wear
  • USB interface for direct control with PNA and ENA series of network analyzers
  • Reliable solid-state switching
  • Available in mixed connector options (3.5 mm, Type-N 50 ohm, and 7-16)

The Keysight (Formerly Agilent) 85093C ECal module is available for lease or rent with TRS-RenTelco with 365-day support. Contact us to know more or request a quote today. Read More

  • Configurations
  • Resources
--, 00F, 150
See Configuration Details
  • 00F

    Both 3.5mm connectors are female on module

  • 150

    Wooden Storage Box

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Wrench Torque 8 in/lb 20 mm Open End

    Qty: 1
  • Wrench Torque 8 in/lb 5/16 in Open End

    Qty: 1
  • Ecal Module 300 KHz - 9 GHz 3.5 mm(f)

    Qty: 1
  • Cable USB-A - USB-B

    Qty: 1
  • Box Wooden

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
