Keysight Technologies N9020B-508
8.4 GHz MXA Multi-touch Signal Analyzer, Type N (f)
Rent or Lease • Buy Used From $35,068
Keysight Technologies – N9020B-508

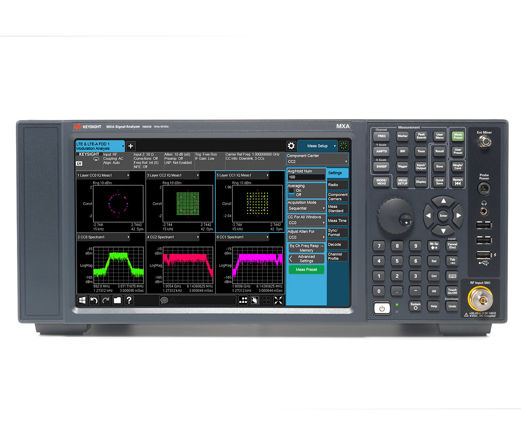

The Keysight Technologies N9020B-508 MXA signal analyzer helps you characterize signals from virtually any wireless device quickly and confidently with up-to-date parametric or RF functional tests. The intuitive multi-touch interface minimizes measurement complexity, even when working with cutting-edge devices.
N9020B-508 Product Highlights
- See more with a wide frequency range of 10 Hz to 8.4 GHz with up to 160 MHz analysis bandwidth
- Shorten test times with hardware-accelerated power measurements, rapid display updates, rapid marker peak searches, and fast sweeps
- Get complete signal characterization by capturing longer I/Q samples
- Accurately analyze complex signals with EVM as low as 0.3 percent (–50 dB)
- Simplify testing with one-button measurements using PathWave X-Series measurement applications
- Capture elusive or transient signals with full-band real-time spectrum analysis
Keysight & TRS-RenTelco
TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Keysight Technologies allows us to ensure we have the right Spectrum Analyzer solution for your job.
Renting a Spectrum Analyzer
With TRS-RenTelco renting a Spectrum Analyzer equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 4,400 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Keysight Technologies.
- Configurations
- Resources
- FAQsAI
Keysight Technologies N9020B Spec Sheet
Keysight Technologies N9020B Configuration Guide
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What frequency range does the Keysight N9020B-508 MXA signal analyzer cover?
The N9020B-508 covers 10 Hz to 8.4 GHz with DC coupling and 10 MHz to 8.4 GHz with AC coupling. The analyzer uses two bands: Band 0 from 10 Hz to 3.6 GHz and Band 1 from 3.5 to 8.4 GHz, both with LO multiplication factor of 1.
What is the DANL performance of the N9020B-508 MXA?
The N9020B-508 achieves -151 dBm DANL from 10 MHz to 2.1 GHz without preamplifier and -149 dBm from 3.6 to 8.4 GHz. With preamplifier enabled, DANL improves to -163 dBm from 10 MHz to 2.1 GHz and -162 dBm from 3.6 to 8.4 GHz, providing excellent sensitivity for weak signal detection.
How does the frequency response accuracy of the N9020B-508 compare across its range?
At 10 dB input attenuation between 20 and 30 degrees C, the N9020B-508 delivers ±0.45 dB from 10 MHz to 3.6 GHz and ±1.5 dB from 3.5 to 8.4 GHz. With preamplifier on at 0 dB attenuation, accuracy is ±0.75 dB from 100 kHz to 3.6 GHz and ±2.0 dB from 3.5 to 8.4 GHz.
What analysis bandwidth options does the N9020B-508 support?
Standard configuration includes 25 MHz analysis bandwidth. Optional bandwidths include 40 MHz (Option B40), 85 MHz (Option B85), 125 MHz (Option B1A), and 160 MHz (Option B1X). The wider bandwidth options enable real-time spectrum analysis with Options RT1 or RT2 and support high-speed I/Q data streaming applications.
What real-time analysis capabilities does the N9020B-508 offer?
The N9020B-508 supports real-time analysis up to 160 MHz bandwidth with Options RT1 or RT2, which require Option B85, B1A, or B1X. RT1 provides basic detection with 11.42 ns minimum detectable signal duration and 17.3 microsecond minimum duration for 100% frequency mask triggering. RT2 offers optimum detection with 5.0 ns minimum signal duration and 3.57 microsecond minimum for 100% FMT probability.
What is the third-order intermodulation performance of the N9020B-508?
With two -18 dBm tones at the input mixer, the N9020B-508 achieves -84 dBc distortion from 10 to 100 MHz (typical TOI +12 dBm to +17 dBm), -90 dBc from 100 to 400 MHz (typical +15 dBm to +20 dBm), -92 dBc from 400 MHz to 1.7 GHz (typical +16 dBm to +20 dBm), and -90 dBc from 3.6 to 8.4 GHz (typical +15 dBm to +18 dBm).
Does the N9020B-508 include noise floor extension capabilities?
Yes, the N9020B-508 supports Noise Floor Extension with Option NF2, which provides more than 9 dB DANL improvement with 95% confidence across all bands and paths. With NF2 enabled, Band 0 achieves -162 dBm (preamp off) and -172 dBm (preamp on), while Band 1 achieves -160 dBm (preamp off) and -170 dBm (preamp on).
What input connector type does the N9020B-508 use?
The N9020B-508 uses a Type-N female connector with 50 ohm nominal impedance for the RF input. This is standard for all RF and microwave frequency options (503, 508, 513, and 526). The analyzer also features front-panel USB ports, probe power connector, and optional external mixing capabilities for frequency extension.
