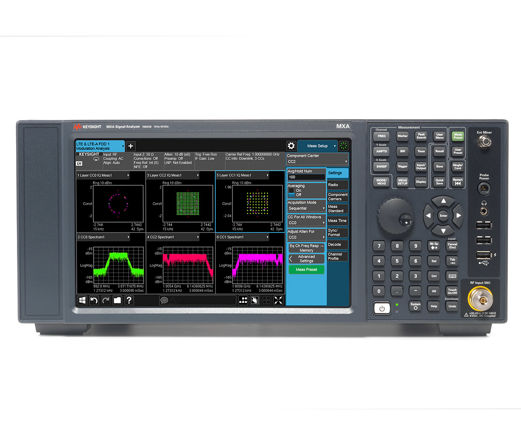

Keysight Technologies N9020B-526
26.5 GHz MXA Multi-touch Signal Analyzer, Type N (f)
Rent or Lease
Keysight Technologies – N9020B-526
The Keysight Technologies N9020B-526 MXA signal analyzer helps you characterize signals from virtually any wireless device quickly and confidently with up-to-date parametric or RF functional tests. The intuitive multi-touch interface minimizes measurement complexity, even when working with cutting-edge devices.
N9020B-526 Product Highlights
- See more with a wide frequency range of 10 Hz to 26.5 GHz with up to 160 MHz analysis bandwidth
- Shorten test times with hardware-accelerated power measurements, rapid display updates, rapid marker peak searches, and fast sweeps
- Get complete signal characterization by capturing longer I/Q samples
- Accurately analyze complex signals with EVM as low as 0.3 percent (–50 dB)
- Simplify testing with one-button measurements using PathWave X-Series measurement applications
- Capture elusive or transient signals with full-band real-time spectrum analysis
Keysight & TRS-RenTelco
TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Keysight Technologies allows us to ensure we have the right Spectrum Analyzer solution for your job.
Renting a Spectrum Analyzer
With TRS-RenTelco renting a Spectrum Analyzer equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 4,400 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Keysight Technologies.
- Configurations
- Resources
- FAQsAI
--, 526
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B40, DP2, EA3, ESC, MPB, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, NF2, P26, PFR
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B40
Analysis Bandwidth, 40 MHz
-
DP2
Deep Capture Memory
-
EA3
Electronic Attenuator, 3.6 GHz
-
ESC
External Source Control
-
MPB
Microwave Preselector Bypass
-
NF2
Noise Floor Extension, Instrument Alignment
-
P26
Preamplifier, 26.5 GHz
-
PFR
Precision Frequency Reference
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, MPB
See Configuration Details
-
MPB
Microwave Preselector Bypass
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, N9061C-1FP, N9062C-2FP, P26, YAS
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
N9061C-1FP
Remote Language Compatibility For 8566/68 And 856XE/EC
-
N9062C-2FP
Remote Language Compatibility, R-And-S FSP
-
P26
Preamplifier, 26.5 GHz
-
YAS
Y-Axis Ouptut
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, P26
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
P26
Preamplifier, 26.5 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, MPB, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, P26, PFR, RT2
See Configuration Details
-
MPB
Microwave Preselector Bypass
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
P26
Preamplifier, 26.5 GHz
-
PFR
Precision Frequency Reference
-
RT2
Real-Time Analysis Up To Maximum Available BW, Optimum Detection
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, NF2, P26
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
NF2
Noise Floor Extension, Instrument Alignment
-
P26
Preamplifier, 26.5 GHz
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, EXM, MPB
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
EXM
Analysis Bandwidth, 160 MHz
-
MPB
Microwave Preselector Bypass
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, MPB, N90EMRBEB, N90EMRBEB-R-Y5C-001-A, N90EMRBEB-R-Y6C-001-L, RT1
See Configuration Details
-
RT1
Real-Time Analysis Up To Maximum Available BW, Basic Detection
-
MPB
Microwave Preselector Bypass
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
N90EMRBEB
Resolution Bandwidth Extended
-
N90EMRBEB-R-Y5C-001-A
Node-Locked Perpetual License
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, P26, YAS
See Configuration Details
-
YAS
Y-Axis Ouptut
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
P26
Preamplifier, 26.5 GHz
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, NF2, P26, YAS
See Configuration Details
-
YAS
Y-Axis Ouptut
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
NF2
Noise Floor Extension, Instrument Alignment
-
P26
Preamplifier, 26.5 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, CR3, ESC, FT2, MPB, PFR, RT2
See Configuration Details
-
MPB
Microwave Preselector Bypass
-
PFR
Precision Frequency Reference
-
RT2
Real-Time Analysis Up To Maximum Available BW, Optimum Detection
-
FT2
Frequency Mask Trigger, Optimum Detection License
-
CR3
Connector, Wideband If Output
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
ESC
External Source Control
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B40, BBA, EXM, MPB, P26
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B40
Analysis Bandwidth, 40 MHz
-
BBA
I/Q Baseband Inputs, Analog
-
EXM
Analysis Bandwidth, 160 MHz
-
MPB
Microwave Preselector Bypass
-
P26
Preamplifier, 26.5 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable BNC 8.5 in
Qty: 1 -
Adapter 2.5 mm Probe Tip - BNC
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B40, BBA, EXM, MPB, PFR
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B40
Analysis Bandwidth, 40 MHz
-
BBA
I/Q Baseband Inputs, Analog
-
EXM
Analysis Bandwidth, 160 MHz
-
MPB
Microwave Preselector Bypass
-
PFR
Precision Frequency Reference
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable BNC 8.5 in
Qty: 1 -
Adapter 2.5 mm Probe Tip - BNC
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, EA3, MPB, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, P08
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
EA3
Electronic Attenuator, 3.6 GHz
-
MPB
Microwave Preselector Bypass
-
P08
Preamplifier, 8.4 GHz
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, DP2, EA3, MPB, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, P26
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
DP2
Deep Capture Memory
-
EA3
Electronic Attenuator, 3.6 GHz
-
MPB
Microwave Preselector Bypass
-
P26
Preamplifier, 26.5 GHz
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, EA3, MPB, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, P08
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
EA3
Electronic Attenuator, 3.6 GHz
-
MPB
Microwave Preselector Bypass
-
P08
Preamplifier, 8.4 GHz
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, DP2, EA3, FP2, FT1, MPB, N9020RT1B, N9020RT1B-KRS, N9020RT1B-R-Y5C-001-A, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, P26
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
DP2
Deep Capture Memory
-
EA3
Electronic Attenuator, 3.6 GHz
-
FP2
Fast Power, Up To Maximum Available Analysis Bandwidth
-
MPB
Microwave Preselector Bypass
-
P26
Preamplifier, 26.5 GHz
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
-
FT1
Frequency mask trigger, basic detection license
-
N9020RT1B
Real-time analysis up to maximum available BW, Basic Detection
-
N9020RT1B-KRS
Keysight Software Support While On Rent
-
N9020RT1B-R-Y5C-001-A
Node-locked perpetual license
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, EA3, MPB, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, P26, PFR
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
EA3
Electronic Attenuator, 3.6 GHz
-
MPB
Microwave Preselector Bypass
-
P26
Preamplifier, 26.5 GHz
-
PFR
Precision frequency reference
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, EXM
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
EXM
Analysis Bandwidth, 160 MHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, MPB, N9085EM0E, N9085EM0E-KRS, N9085EM0E-R-Y5C-001-A, RT1
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
MPB
Microwave preselector bypass
-
N9085EM0E
5G NR Measurement Application
-
N9085EM0E-R-Y5C-001-A
Node-locked perpetual license
-
RT1
Real-time analysis up to maximum available BW, basic detection license
-
N9085EM0E-KRS
Keysight Software Support While On Rent
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, BBA, EA3, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, P26, PFR, YAS
See Configuration Details
-
526
Frequency range, 10 Hz to 26.5 GHz
-
BBA
I/Q Baseband Inputs, Analog
-
EA3
Electronic attenuator, 3.6 GHz
-
P26
Preamplifier, 26.5 GHz
-
PFR
Precision frequency reference
-
YAS
Y-Axis Screen Video Output
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter 2.5 mm Probe Tip - BNC
Qty: 1 -
Cable BNC 8.5 in
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, N9020SA2E, N9020SA2E-R-Y5N-001-A, N9020SA2E-R-Y6N-001-L, P03
See Configuration Details
-
N9020SA2E
Signal Analyzer Core Software for N9020B
-
N9020SA2E-R-Y5N-001-A
Core Software node-locked perpetual license
-
N9020SA2E-R-Y6N-001-L
Core software updates and enhancements, node-locked - 1 year
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, EA3, FT1, MPB, N9085EM0E, N9085EM0E-KRS, N9085EM0E-R-Y5C-001-A, P26, RT1
See Configuration Details
-
526
Frequency range, 10 Hz to 26.5 GHz
-
B1X
Analysis bandwidth, 160 MHz
-
EA3
Electronic attenuator, 3.6 GHz
-
FT1
Frequency mask trigger, basic detection license
-
MPB
Microwave preselector bypass
-
N9085EM0E
5G NR Measurement Application
-
N9085EM0E-R-Y5C-001-A
Node-locked perpetual license
-
P26
Preamplifier, 26.5 GHz
-
RT1
Real-time analysis up to maximum available BW, basic detection license
-
N9085EM0E-KRS
Keysight Software Support While On Rent
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B40, BBA, EA3, EXM, MPB, P26, PFR, YAS
See Configuration Details
-
526
Frequency range, 10 Hz to 26.5 GHz
-
B40
Analysis bandwidth, 40 MHz
-
BBA
I/Q Baseband Inputs, Analog
-
EA3
Electronic attenuator, 3.6 GHz
-
EXM
External Mixing
-
MPB
Microwave preselector bypass
-
P26
Preamplifier, 26.5 GHz
-
PFR
Precision frequency reference
-
YAS
Y-Axis Screen Video Output
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.5 mm Probe Tip - BNC
Qty: 1 -
Cable BNC 8.5 in
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B40, BBA, EA3, EXM, MPB, P26
See Configuration Details
-
526
Frequency range, 10 Hz to 26.5 GHz
-
B40
Analysis bandwidth, 40 MHz
-
BBA
I/Q Baseband Inputs, Analog
-
EA3
Electronic attenuator, 3.6 GHz
-
EXM
External Mixing
-
MPB
Microwave preselector bypass
-
P26
Preamplifier, 26.5 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.5 mm Probe Tip - BNC
Qty: 1 -
Cable BNC 8.5 in
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, P26, PFR
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
P26
Preamplifier, 26.5 GHz
-
PFR
Precision frequency reference
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, EA3, MPB, P26
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
EA3
Electronic Attenuator, 3.6 GHz
-
MPB
Microwave Preselector Bypass
-
P26
Preamplifier, 26.5 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, EA3, MPB, P26, PFR
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
EA3
Electronic Attenuator, 3.6 GHz
-
MPB
Microwave Preselector Bypass
-
P26
Preamplifier, 26.5 GHz
-
PFR
Precision Frequency Reference
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, EA3, NF2, P26, PFR
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
EA3
Electronic Attenuator, 3.6 GHz
-
P26
Preamplifier, 26.5 GHz
-
PFR
Precision frequency reference
-
NF2
Noise Floor Extension, Instrument Alignment
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, EA3, MPB, NF2, P26, PFR
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
EA3
Electronic Attenuator, 3.6 GHz
-
MPB
Microwave Preselector Bypass
-
NF2
Noise floor extension
-
P26
Preamplifier, 26.5 GHz
-
PFR
Precision frequency reference
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, B1X, MPB, N9085EM0E, N9085EM0E-KRS, N9085EM0E-R-Y5C-001-A, P26, PFR, RT1
See Configuration Details
-
526
Frequency Range, 10 Hz To 26.5 GHz
-
B1X
Analysis Bandwidth, 160 MHz
-
MPB
Microwave preselector bypass
-
N9085EM0E
5G NR Measurement Application
-
N9085EM0E-KRS
Keysight Software Support While On Rent
-
N9085EM0E-R-Y5C-001-A
Node-locked perpetual license
-
P26
Preamplifier, 26.5 GHz
-
PFR
Precision frequency reference
-
RT1
Real-time analysis up to maximum available BW, basic detection license
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the frequency range of the Keysight N9020B-526 MXA signal analyzer?
The N9020B-526 operates from 10 Hz to 26.5 GHz with DC coupling and 10 MHz to 26.5 GHz with AC coupling. It covers five frequency bands: Band 0 (10 Hz to 3.6 GHz), Band 1 (3.5 to 8.4 GHz), Band 2 (8.3 to 13.6 GHz), Band 3 (13.5 to 17.1 GHz), and Band 4 (17 to 26.5 GHz).
What DANL does the N9020B-526 achieve across its frequency range?
The N9020B-526 achieves -151 dBm DANL from 10 MHz to 2.1 GHz and -136 dBm from 20.0 to 26.5 GHz without preamplifier. With preamplifier enabled, DANL improves to -163 dBm from 10 MHz to 2.1 GHz, -162 dBm from 3.6 to 13.6 GHz, and -152 dBm from 20.0 to 26.5 GHz.
How does the N9020B-526 compare to millimeter-wave options?
The N9020B-526 uses a Type-N female RF connector and covers up to 26.5 GHz, while millimeter-wave options (532, 544, 550) extend to 50 GHz and use 2.4 mm male connectors. The 526 option is optimized for RF and microwave applications, offering better DANL in lower bands and lower weight (18 kg versus 20 kg for millimeter-wave configurations).
What real-time spectrum analysis capabilities does the N9020B-526 offer?
The N9020B-526 supports real-time analysis up to 160 MHz bandwidth with Options RT1 or RT2. RT1 provides 11.42 ns minimum detectable signal duration with greater than 60 dB signal-to-mask ratio and 17.3 microsecond minimum for 100% probability of intercept. RT2 offers improved 5.0 ns minimum detectable duration and 3.57 microsecond minimum for 100% FMT probability at full amplitude accuracy.
What is the frequency response accuracy of the N9020B-526?
At 10 dB input attenuation between 20 and 30 degrees C, the N9020B-526 delivers ±0.45 dB from 10 MHz to 3.6 GHz, ±2.0 dB from 8.3 to 13.6 GHz and 13.5 to 22.0 GHz, and ±2.5 dB from 22.0 to 26.5 GHz. With preamplifier on, specifications are ±0.75 dB from 100 kHz to 3.6 GHz and ±3.5 dB from 22.0 to 26.5 GHz.
Does the N9020B-526 support Noise Floor Extension?
Yes, the N9020B-526 can be equipped with Option NF2 for Noise Floor Extension, providing more than 9 dB DANL improvement with 95% confidence across all bands and paths. With NF2 enabled, Band 0 achieves -162 dBm (preamp off) and -172 dBm (preamp on), while Band 4 achieves -148 dBm (preamp off) and -164 dBm (preamp on).
What analysis bandwidth options work with the N9020B-526?
The standard N9020B-526 includes 25 MHz analysis bandwidth. Optional configurations provide 40 MHz (Option B40), 85 MHz (Option B85), 125 MHz (Option B1A), or 160 MHz (Option B1X). The wider bandwidth options enable real-time spectrum analysis and high-speed I/Q data capture for advanced signal analysis applications.
What is the phase noise performance of the N9020B-526?
At 1 GHz center frequency between 20 and 30 degrees C, the N9020B-526 achieves -91 dBc/Hz at 100 Hz offset, -113 dBc/Hz at 1 kHz offset, -116 dBc/Hz at 10 kHz offset, and -135 dBc/Hz at 100 kHz offset. At 1 MHz offset, phase noise reaches -148 dBc/Hz nominal. Performance varies with center frequency according to the LO multiplication factor.
