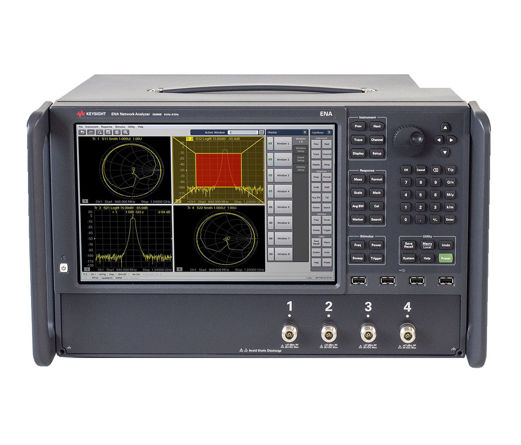

Keysight Technologies E5080B-4P2
4-port, 100 kHz - 53 GHz ENA Network Analyzer (w 2nd Source)
Rent or Lease
With the Keysight (formerly Agilent) E5080B-4P2, technicians can choose from a broad range of measurement applications for meeting RF tests and microwave measurement requirements.
This flexible ENA network analyzer has various applications in production and general component testing and design verification. Featuring software applications that include mixer measurements, noise figure, and spectrum analysis, the Keysight E5080B-4P2 delivers deep insights into testing requirements.
Keysight (Formerly Agilent) E5080B-4P2 Features and Specifications
- Maximum frequency: 53GHz
- Dynamic range: 140dB
- Output power: 10dBm
- Trace noise: 0.0015dBrms
- Number of built-in ports: two or four
- Harmonics: -25dBc (typical)
- Compatible with E5071C code
- Temperature stability: 0.005dB/deg C Applications
- Design verification
- General component test
- Production test Components
- Cables
- Antennas
- Mixers/frequency converters
- Filters/duplexers
- Amplifiers
The Keysight (formerly Agilent) E5080B-4P2 is available for lease or rent with TRS-RenTelco with 365-day support. Contact us to learn more or request a quote today.
- Configurations
- Resources
- FAQsAI
--, 4P2
See Configuration Details
-
4P2
4-port test set, 100 kHz to 53 GHz with second source
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive Product Documentation
Qty: 1 -
Cover Front Impact Gray
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 172, 4P2
See Configuration Details
-
172
Add GPIB interface
-
4P2
4-port test set, 100 kHz to 53 GHz with second source
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cover Front Impact Gray
Qty: 1 -
USB Drive Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies E5080B-4P2 Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What makes the E5080B-4P2 different from standard 4-port VNA configurations?
The E5080B-4P2 is a 4-port VNA with an integrated second source covering 100 kHz to 53 GHz (settable to 54 GHz). This dual-source architecture enables advanced measurements like mixer characterization, frequency converter analysis, and independent stimulus of multiple ports simultaneously, with 1.85 mm male connectors for millimeter-wave applications.
What frequency coverage does the E5080B-4P2 second source option provide?
The E5080B-4P2 provides dual independent sources across 100 kHz to 53 GHz. The second source drives ports 3 and 4, enabling measurements requiring two-tone stimulus or independent frequency control. This makes it ideal for mixer, converter, and intermodulation testing applications throughout the millimeter-wave frequency range.
Can the E5080B-4P2 measure both scalar and vector mixer parameters?
Yes, with the appropriate software. The S96082A enables scalar mixer/converter measurements with power-calibrated conversion loss/gain. For full vector characterization including phase and group delay, the S96083A software provides the SMC+Phase measurement class using a U9391C/F/G comb generator, eliminating the need for reference mixers.
How does pulse modulation work on the E5080B-4P2 dual-source configuration?
The E5080B-4P2 supports independent pulse modulation on both sources. Option 021 adds pulse modulation to ports 1 and 2 (first source), while Option 022 adds pulse modulation to ports 3 and 4 (second source). Both require S96025A software for integrated wideband-detection pulsed-RF measurements with pulse widths down to 1 microsecond.
What applications benefit most from the E5080B-4P2 second source capability?
The E5080B-4P2 excels at frequency-converting device measurements including mixers, upconverters, downconverters, and amplifiers with embedded local oscillators. Gain compression analysis with S96086A and dual-conversion stage characterization both benefit from the independent source control across the full 53 GHz bandwidth.
Does the E5080B-4P2 support embedded LO mixer measurements?
Yes, with the S96084A embedded-LO capability software, the E5080B-4P2 can characterize converters with internal local oscillators. The analyzer tunes its receivers to the output frequency without requiring access to the internal LO or a common reference signal, working seamlessly with both S96082A and S96083A measurement applications.
What time domain analysis capabilities does the E5080B-4P2 offer?
With S96010A software, the E5080B-4P2 provides time domain analysis to view reflection and transmission responses in time or distance, useful for tuning filters and gating out fixture responses. The enhanced S96011A adds TDR/TDT mode, eye-diagram/mask analysis, and jitter/emphasis/equalization simulation covering up to 53 GHz bandwidth with 8.42 ps rise time.
What calibration methods are available for the E5080B-4P2 at millimeter-wave frequencies?
The E5080B-4P2 uses 1.85 mm calibration standards suited for its full 53 GHz range. Mechanical calibration kits and electronic calibration (ECal) modules with DC option (N443xD or N469xD with Option 0DC) are recommended for best accuracy. The S96007A automatic fixture removal software further enables de-embedding of fixture effects for in-fixture measurements.
