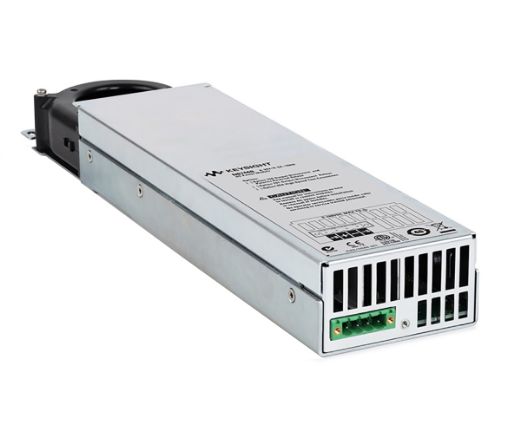

Keysight Technologies N6744B
100W (35V/3A) DC Power Supply Module
Key Specifications:
- Output Ratings - Voltage: 35 V
- Current (derated 1% per C above 40C): 1.5 A / 3 A
- Power: 52.5 W / 105 W Programming Accuracy (at 23C /-5C after 30 minute warm-up. Applies from min. to max. program)
- Voltage: 0.1% 35 mV
- Current: 0.15% 20 mA Ripple & Noise from 20 Hz to 20 MHz
- CV peak-to-peak: 15 mV
- CV rms: 5 mV
- (PARD) CC rms: 2 mA Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
- Voltage: 11 mV
- Current: 2 mA
If you are looking for a new or well-maintained used Keysight (formerly Agilent) N6744B DC Power Module for rent or lease, contact us or request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Jumper Assembly
Qty: 2 -
Connector Plug 4-Position
Qty: 1 -
Screw M3 x 0.5 6 mm TORX #10
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N6744B Manual
Keysight Technologies N6744B Spec Sheet
Keysight (formerly Agilent) N6700 Modular DC Power Supply: Selecting a DC Power Module
