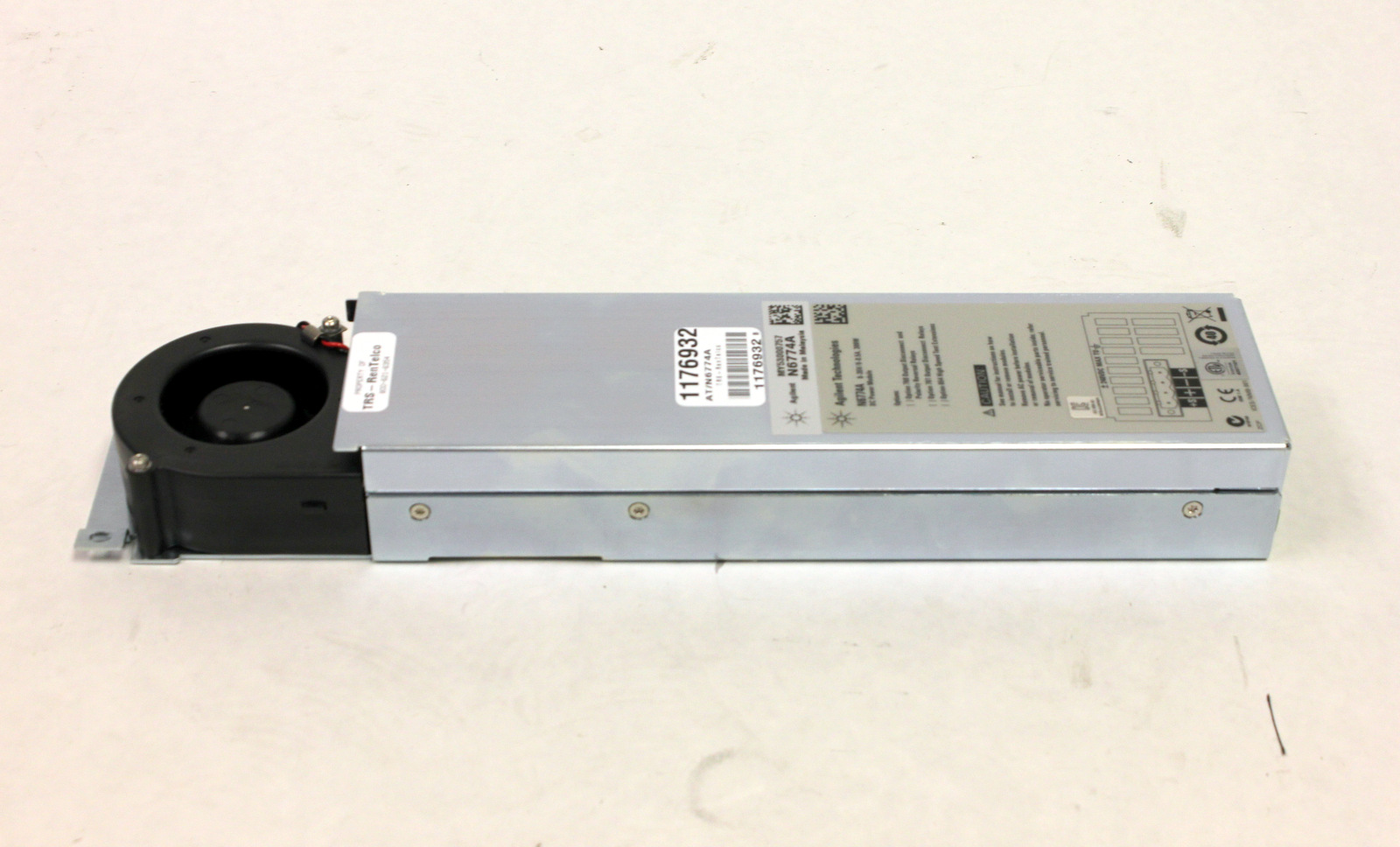

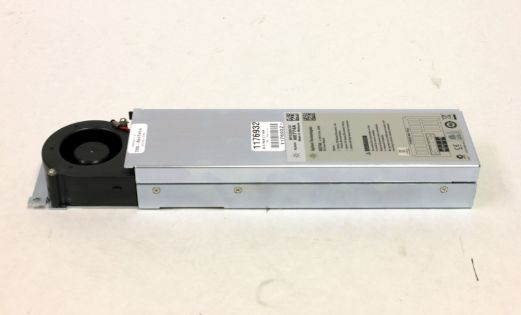

Keysight Technologies N6774A
300W (35V/8.5A) DC Power Supply Module
Perform accurate measurements with a stable output using the Keysight (formerly Agilent) N6774A DC power supply module.
The Keysight N6774A offers extensive device protection with its overvoltage, overcurrent, and over temperature protection capabilities. The power supply's small size, flexibility, and modular system make it a perfect solution for ATE systems in R&D, design validation, and manufacturing.
The N6774A also features a quick-disconnect connector for easy setup and maintenance. It is also fully compliant with LXI Class C specifications and can efficiently meet all your measurement needs.
Keysight N6774A Features and Specifications:
- DC output ratings:
-Voltage: 35V
-Current: 8.5A
-Power: 300W - Ripple and noise (p-p/rms): 22mV/5mV
- Constant current rms: 6mA
- Voltage programming accuracy: 0.1 percent 35mV
- Current programming accuracy: 0.15 percent 60mA
- Voltage measurement accuracy: 0.1 percent 35mV
- Current measurement accuracy: 0.15 percent 12mA
- Up and down programming with resistive load, typically 20ms
The Keysight (formerly Agilent) N6774A 300W (35V/8.5A) DC power supply module is available for rent or lease at TRS-RenTelco with 24/7 support. To learn more or get a quote call 800-874-7123.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Jumper Assembly
Qty: 2 -
Connector Plug 4-Position
Qty: 1 -
Screw M3 x 0.5 6 mm TORX #10
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight (formerly Agilent) N6700 Modular DC Power Supply: Selecting a DC Power Module
Keysight Technologies N6774A Spec Sheet
