Keysight Technologies N7024A
Product 1

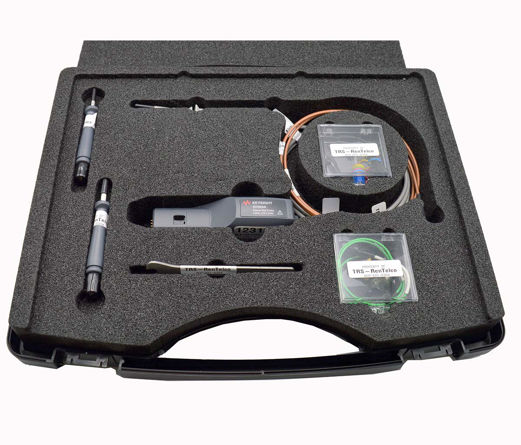

Keysight Technologies N7024A

Power Rail Probe, 6 GHz
Rent or Lease View Options

Make power integrity measurements with the Keysight (formerly Agilent) N7024A power rail probe. The Keysight N7024A lets you measure noise, ripple, and transients on DC power rails with mV sensitivity. It also offers low noise with an attenuation ratio of 1:1, large offset range ( 15V), low DC loading from a large 50 k ohmes DC input impedance, and high bandwidth.

This power rail probe can efficiently measure periodic and random disturbances (PARD), static and dynamic load response, programmable power rail response, and similar power integrity measurements. The N7024A probe is compatible with the Keysight Infiniium S, 9000, 90000A, 90000X, V, Z and UXR < = 33GHz Series oscilloscopes.

Keysight N7024A Features and Specifications:

  • Bandwidth: 6GHz
  • Maximum input voltage (non-destructive): 15V peak input
  • Offset range: 15.25V ? Attenuation ratio: 1.3:1
  • Input impedance at DC: 50 k ohmes 2 percent
  • Active signal range: 0.6V (1.2Vpp)
  • Probe oscilloscope noise: 1.3 times noise of the connected oscilloscope
  • Output termination: 50 ohmes scope input
  • Probe type: Single-ended

The Keysight (formerly Agilent) N7024A 6GHz power rail probe is available for rent or lease at TRS-RenTelco with 24/7 support. To learn more or to get a quote, call us at 800.874.7123.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Ring Set Color Coded

    Qty: 1

  • Lead Standard Ground

    Qty: 1

  • Adapter Dual Lead

    Qty: 1

  • Tip Rigid 0.5 mm

    Qty: 1

  • Spring Tip 0.5 mm

    Qty: 1

  • Ground Spring 2.5 mm

    Qty: 1

  • Clip Micro SMD

    Qty: 1

  • Cable SMA(m) - SMA(m)

    Qty: 1

  • Cable SMA(m) - Solder Tip

    Qty: 3

  • SMA(f) - SMA(f) ADAPTER

    Qty: 1

  • Adapter Rotating 3.5(f) - 3.5(f)

    Qty: 1

  • Case Accessory Plastic

    Qty: 2

  • Carry Case Plastic

    Qty: 1

  • Browser Power Rail Probe

    Qty: 1

  • Wrench

    Qty: 1

  • Browser Power Rail High Bandwidth 4 GHz

    Qty: 1

  • Browser Power Rail Fine Pitch High Bandwidth 5 GHz

    Qty: 1

  • Configurations Card Probe

    Qty: 1
