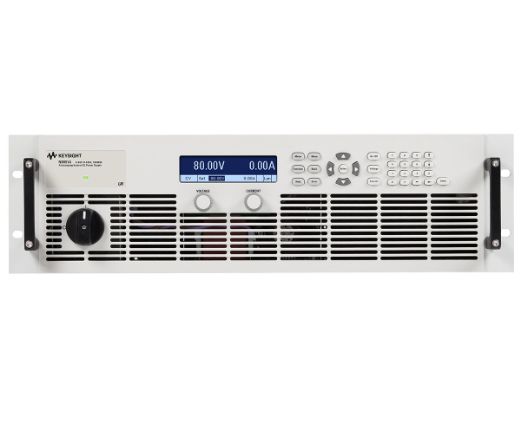

Keysight Technologies N8951A

80 V, 510 A, 15000 W, 400 VAC DC Power Supply

The Keysight N8951A provides 15 kW autoranging, single-output programmable DC power for ATE applications that require just the right amount of performance at just the right price. The N8951A power supply's autoranging output characteristic enables unprecedented flexibility by offering a wide range of voltage and current combinations at full power. Power supplies with 'rectangular' or traditional output characteristics provide full power at only one voltage and current combination. Just one N8951A does the job of multiple power supplies. It's like having many power supplies in one.

The Keysight N8951A provides stable output power, built-in voltage and current measurements, and autoranging output voltage and current from 0 to 80V and 0 to 510 A. The N8951A power supply offers many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development and compact 3U design to save rack space. If more power is required, easily parallel multiple N8900 series units to create ?one' power supply with > 100 kW of total output power. The built-in master/slave control enables programming as if it's just one big power supply; no need to program each supply individually.

Keysight, formerly Agilent N8951A - Key Features and Specifications:

  • DC output ratings
    -Voltage: 0 to 80 V
    -Current: 0 to 510 A
    -Power: 15000 W
  • AC input
    -Voltage range: 340 - 440 VAC
  • Programming accuracy
    -Voltage: 0.1% of full-scale
    -Current: 0.2% of full-scale

TRS-RenTelco offers the Keysight N8951A for rent and lease with 24/7 support.

The latest test equipment ? We are constantly investing in new equipment to support emerging technologies that require electronic test and measurement equipment. We are often the first to buy newly introduced products from top T&M manufacturers.

Calibrated equipment -

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Connector Plug for Sense Terminals

    Qty: 1
  • Connector Plug for Sense Terminals

    Qty: 1
  • Cover Safety for DC Output

    Qty: 1
  • Hardware DC Terminal Connection

    Qty: 1
  • USB Drive Software I/O Libraries

    Qty: 1
  • Special AC Fixing Angle for N89xx Series

    Qty: 1
  • Cap Nut M3

    Qty: 1
  • Spring Washer M3

    Qty: 1
  • Washer M3

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
  • Connector Plug AC Input 400 VAC

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

Buy Used

Price: $15,503 $6,300
