Megger SMRT36
Three Phase Relay Test Set
Rent or Lease
Megger - SMRT36

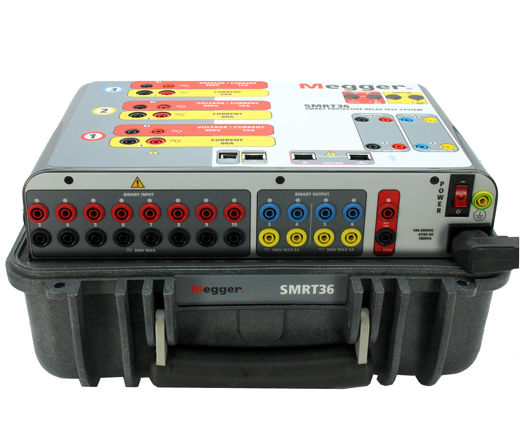

The SMRT36 has the “smart” combination of high compliance voltage and high current to test all electromechanical, solid-state and microprocessor-based overcurrent relays, including voltage controlled, voltage restraint and directional overcurrent.
SMRT36 Product Highlights
• Small, rugged, lightweight and powerful
• Operate with or without a computer
• Intuitive manual operation with Smart Touch View Interface
• High current, high power output (60 Amps/300 VA rms) per phase
• Convertible channels provides 6 currents
• Network interface provides IEC 61850 test capabilities
• Optional transducer test capability
• Fully automated testing using AVTS Software
Megger & TRS-RenTelco
TRS-RenTelco is a proud partner of Megger and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Megger allows us to ensure we have the right Electrical & Industrial Test Equipment solution for your job.
Renting Electrical & Industrial Test Equipment
With TRS-RenTelco, renting Electrical & Industrial Test Equipment equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
