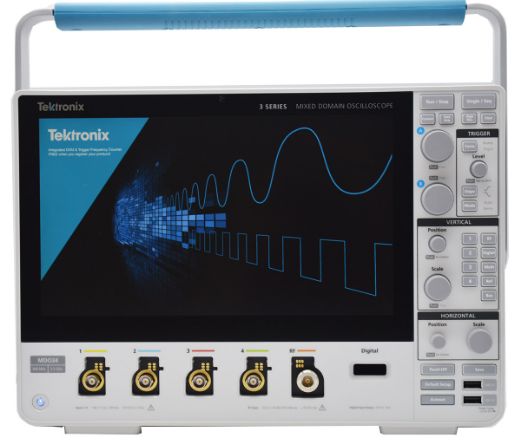

Tektronix MDO34 3-BW-500

4 channel 500MHz Bandwidth for analog channels

Add more capabilities to your bench with the Tektronix MDO34 3-BW-500 mixed domain oscilloscope.

Experience rapid design debugging and track down undesirable EMI emission sources with the Tektronix MDO34 3-BW-500 mixed domain oscilloscope.

This mixed domain oscilloscope comes with an 8-bit vertical resolution and an 11.6-inch high-definition touchscreen. With a 10M record length across all channels, an optional spectrum analyzer, and separate RF inputs, this oscilloscope's ultramodern user interface lets you get the job done across applications including IoT, education, manufacturing test and troubleshooting, and service installation and maintenance.

Tektronix MDO34 3-BW-500 Features and Specifications:

  • Four analog channels
  • Bandwidth: 500MHz
  • Bandwidth is upgradable (up to 1GHz)
  • 2.5 GS/s sample rate
  • Record length: 10M (all channels)
  • Maximum waveform capture rate: >280,000 wfm/s
  • Standard passive voltage probes with 3.9 pF capacitive loading
  • 500MHz analog bandwidth
  • Spectrum analyzer (optional)
  • Frequency range: 9kHz to 1GHz or 3GHz
  • Ultra-wide capture bandwidth: Up to 3GHz

The Tektronix MDO34 3-BW-500 mixed domain oscilloscope is available for rent or lease at TRS-RenTelco. Call us at 800.874.7123 for more information.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Power cord Right Angle

    Qty: 1
  • Probe TPP0500 Or TPP0500B Or Higher TPP1000

    Qty: 4
  • Marker Band Set Probe Identification 2 Each Of 5 Colors

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
  • Adapter N(m) - BNC(f)

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, SUP3 SREMBD
See Configuration Details
  • SUP3 SREMBD

    Embedded Serial Triggering and analysis (I2C, SPI) on 3 Series Oscilloscopes

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Power cord Right Angle

    Qty: 1
  • Probe TPP0500 Or TPP0500B Or Higher TPP1000

    Qty: 4
  • Marker Band Set Probe Identification 2 Each Of 5 Colors

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
  • Adapter N(m) - BNC(f)

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

Buy Used

In stock now. Request Quote for pricing.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, MDO3MSO
See Configuration Details
  • MDO3MSO

    Add (16) Digital channels with P6316 logic probe to MDO3000 Series oscilloscope

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Marker Band Set Probe Identification 2 Each Of 5 Colors

    Qty: 1
  • Probe Tip Set Of 10

    Qty: 2
  • Probe Tip (Set Of 5)

    Qty: 2
  • Adapter N(m) - BNC(f)

    Qty: 1
  • Power cord Right Angle

    Qty: 1
  • Lead Set 8-Channel

    Qty: 2
  • Probe MSO 16-Channel

    Qty: 1
  • Probe TPP0500 Or TPP0500B Or Higher TPP1000

    Qty: 4
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
