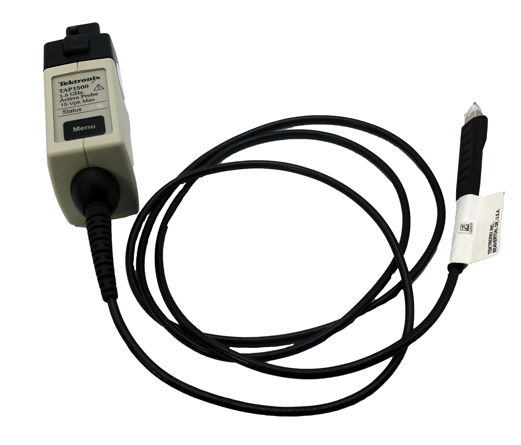

Tektronix TAP1500

1.5 GHz Active Probe TAP1500

The Tektronix TAP1500 is a single-ended Active FET Probe specifically designed to be equipped with oscilloscopes with carrying the TekVPI probe interface.

Tektronix TAP1500 - Key Features & Specifications:

  • Outstanding Electrical Performance
  • <267 ps Rise Time
  • >=1.5 GHz Probe Bandwidth
  • <=1 pF Input Capacitance
  • 1 MOhm Input Resistance
  • -8 V to 8 V Input Dynamic Range
  • -10 V to 10 V DC Input Offset Range Versatile Mechanical Performance
  • Small Compact Probe Head for Probing Small Geometry Circuit Elements
  • DUT Attachment Accessories Enable Connection to SMDs As Small As 0.5 mm Pitch
  • Robust Design for Reliability Easy-to-Use
  • Connects Directly to DPO7000 and DPO4000 Series Oscilloscopes Using the New TekVPI Probe Interface
  • Provides Automatic Units Scaling and Readout on the Oscilloscope Display
  • Easy Access to Oscilloscope Probe Menu Display for Probe Status/Diagnostic Information, and to Control Probe DC Offset

Applications:

  • High-speed Digital Systems Design
  • Component Design and Characterization
  • Manufacturing Engineering and Test
  • Educational Research
  • Signals with Voltage Swings up to 16 Vp-p

The Tektronix TAP1500 active probe can be used for applications including High-speed Digital Systems Design, Component Design and Characterization, Manufacturing Engineering and Test, Educational Research Signals with Voltage Swings up to 16 Vp-p.

Get the Tektronix TAP1500 for rent or lease at TRS-RenTelco. We have an experienced team of metrologists and technicians that calibrates every product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us to know more or request a quote today.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Marker Kit

    Qty: 1
  • Probe Tip (Set Of 10)

    Qty: 1
  • Contact Connector

    Qty: 1
  • Test Lead Set

    Qty: 1
  • Grabber

    Qty: 2
  • Adapter Spring Right Angle

    Qty: 1
  • Box Accessory Plastic

    Qty: 1
  • Carry Pouch

    Qty: 1
  • CD Product Documentation

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

Buy Used

Price: $4,590 $2,040
