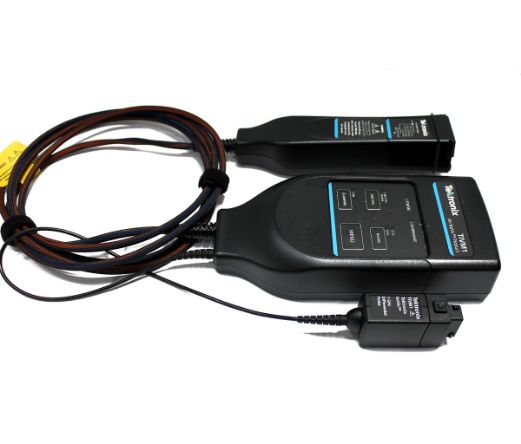

Tektronix TIVM1

Diff Probe; 1 GHZ, 1X/5X/10X/20X/50X, +/- 50V, TekVPI, 3 M

The TIVM Series (IsoVu) products can be used on most Tektronix oscilloscopes with the TekVPI interface and on MSO/DPO70K series oscilloscopes with the TCA-VPI50 adapter. IsoVu utilizes an electro-optic sensor that converts the electrical signal from the sensor tip cables to an optical signal, which electrically isolates the device-under-test from the oscilloscope. IsoVu incorporates four separate lasers, an optical sensor, five optical fibers, and sophisticated feedback and control techniques. The sensor head, which connects to the test point, has complete electrical isolation and is powered over one of the optical fibers (No batteries required). IsoVu is an ideal solution for users making the following measurements:

Differential measurements in the following conditions:

Complete galvanic isolation is required

High common mode voltage

High frequency common mode interference

High frequency measurements

Measurements in high EMI environments

EMI compliance testing

ESD testing



Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Manual TIVM Series IsoVu Measurement System

    Qty: 1
  • Carrycase Soft

    Qty: 1
  • Soft Case with Foam

    Qty: 1
  • Tool Install for 0.018 RD Pin Or 0.016 SQ Pin

    Qty: 1
  • Wrench/Driver Tool SMA 5/16 in

    Qty: 1
  • Adapter MMCX 0.100 Center 0.025 Square Pin

    Qty: 1
  • Probe Tip Adapter MMCX - 0.062 in Square Pin White

    Qty: 1
  • Pin Kit DUT Interface

    Qty: 1
  • Support Align Probe with Living Hinge

    Qty: 2
  • Clip Tripod Foot Retainer

    Qty: 3
  • 5X Sensor Tip Cable IVTIP5X

    Qty: 1
  • 25X Sensor Tip Cable IVTIP25X

    Qty: 1
  • Tripod Flexible

    Qty: 1
