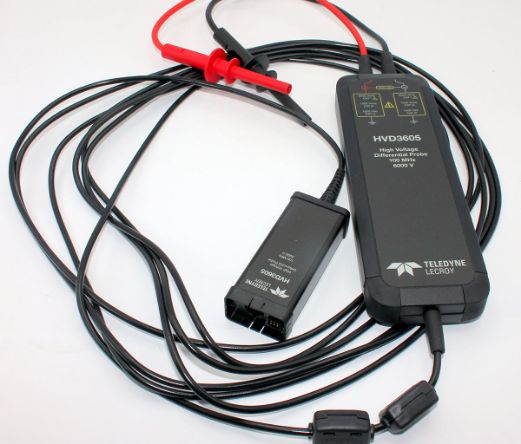

Teledyne LeCroy HVD3605

6kV, 100 MHz High Voltage Differential Probe

Achieve exceptionally high Common Mode Rejection Ratio (CMRR) over a broad frequency range with the Teledyne LeCroy HVD3605 high voltage differential probe. The HVD3605 can efficiently meet all measurement challenges in noisy, high common-mode power electronics with its precise high voltage floating measurements with 1% gain accuracy. This differential probe is best suited for automotive, motor drive development, and product design applications.

Teledyne LeCroy HVD3605 - Features and Specifications:

  • Bandwidth: 100 MHz
  • Rise time (10-90): 4.3 ns
  • Differential voltage range (high attenuation): 7000 V (DC peak AC) from 28V/div to 2000 V/div with up to 6000V offset
  • Differential voltage range (low attenuation): 700 V (DC peak AC) from 300mV/div to 27.5 V/div with up to 600V offset
  • Common mode voltage range: plus or minus 7600V (DC peak AC), 6000 Vrms
  • Sensitivity:
    • 300 mV/div to 27.5 V/div (200X)
    • 28 V/div to 2000 V/div (2000X)
  • Input impedance: 48 MO || 2.5 pF (between inputs) 24 M ohms || 5.0 pF (either input to ground)
  • Interface: ProBus

The Teledyne LeCroy HVD3605 6 kV, 100 MHz high voltage differential probe is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Accessory Case Soft for Probe Kit

    Qty: 1
  • Replacement Probe Accy Kit (Consists of: 2 6 kV Rated Alligator Clips - 1 Black, 1 Red)

    Qty: 1
  • Manual Operator

    Qty: 1
