Fluke Networks - MFTK1200

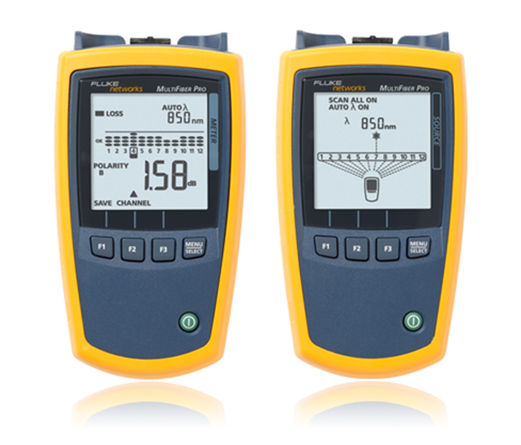

The Fluke Networks MFTK1200 MultiFiber Pro takes the complexity out of testing MPO trunks for loss and polarity. With an on-board MPO connector, it the MFTK1200 is the first tester to automate the MPO fiber-trunk testing process without using a fan-out cord. The power meter/light source boasts industry-first functions such as automatic scanning of all twelve fibers and display of test results in an easy-to-read bar graph.
These innovative features allow Fluke MFTK1200 MultiFiber Pro kits to eliminate the complexity of testing MPO trunks, making it 90 percent faster than the traditional simplex test methods.
MFTK1200 Product Highlights
• Detector type - InGaAs
• Calibrated wavelengths - 850 nm, 1300 nm, 1310 nm, 1550 nm
• Measurement range - 0 dBm to -50 dBmTest time - 6 seconds
• Power measurement linearity - -0.1 dB
• Power measurement uncertainty - -0.35 dB
• Power measurement repeatability - < 0.10 dB
• Display resolution, dB or dBm - 0.01
• Power display units - dBm, mW, -W
• User-selectable limit for loss - 0.05 dB to 50.0 dB, in increments of 0.05 dB up to 10.0 dB and 0.1 dB up to 50.0dB
• Auto wavelength detection - Yes
Fluke Networks & TRS-RenTelco
TRS-RenTelco is a proud partner of Fluke Networks and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Fluke Networks allows us to ensure we have the right Datacom Cable Test solution for your job.
Renting Datacom Cable Test
With TRS-RenTelco, renting Datacom Cable Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Links to Additional Information
Battery AAQty: 4
Cable USB-A(m) to USB Mini B(m)Qty: 1
One Click Cleaner MPO/MTPQty: 1
LED Light Source MultiFiber Pro Multimode 850 nmQty: 1
Power Meter MultiFiber ProQty: 1
Test Cord OM4 MPO(m) - MPO(m)Qty: 2
Unpinned to Pinned Test Cord OM4 MPO(f) - MPO(m) - TYPE B POLARITYQty: 1
Test Cord OM4 MPO(f) - MPO(f)Qty: 1
Adapter MTPQty: 2
USB Drive with Software and ManualsQty: 1
