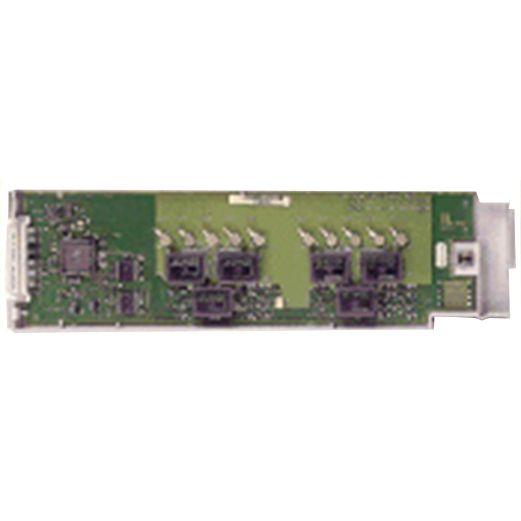

Keysight Technologies 34905A
2 GHz Dual 1:4 RF Mux, 50 Ohm Module
The Keysight (formerly Agilent) 34905A RF multiplexer module for the 34970A Data Acquisition/Switch Unit offers broadband switching capabilities for high-frequency and pulsed signals. Use it to route test signals between your device under test and your signal generator, oscilloscope, spectrum analyzer, or other instrumentation.
The RF multiplexers are arranged as two independent 1 x 4 multiplexers, each with a common shield and a switched center conductor. Connections can be made directly to SMB inputs with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1 GHz bandwidth. Multiple banks may be cascaded together for applications requiring even larger topologies-- create a stubless 16:1 multiplexer in a single frame.
Read More
The RF multiplexers are arranged as two independent 1 x 4 multiplexers, each with a common shield and a switched center conductor. Connections can be made directly to SMB inputs with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1 GHz bandwidth. Multiple banks may be cascaded together for applications requiring even larger topologies-- create a stubless 16:1 multiplexer in a single frame.
Standard Product Includes:
- 1 34905A, Dual 4-Channel 50 Ohm RF Multiplexer Module
- 1 Certificate of Calibration
- 10 Cables, 50 Ohm (SMB to BNC)
Features
- Dual 4 Channel RF Multiplexer
- 2 GHz bandwidth, 50 Ohm
- BNC to SMB adapter cables included
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable BNC - SMB (Set Of 10)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 34905A Manual
Keysight Technologies 34905A Spec Sheet
