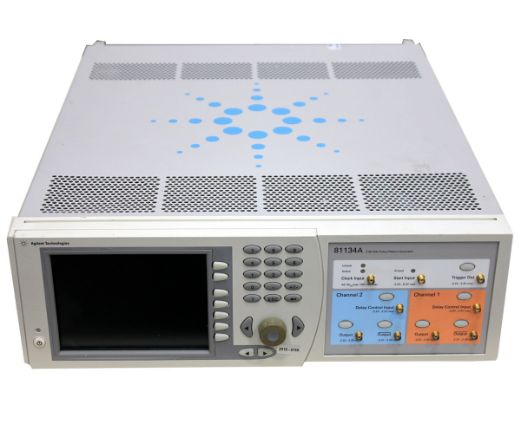

Keysight Technologies 81134A
3.35 GHz, 2-Channel Pulse / Pattern Generator, SMA (f)
Rent or Lease
Perform precise and in-depth characterization of devices with high performance and rapid timing with the Keysight (formerly Agilent) 81134A Pulse Pattern Generator. The 81134A is distinguished by fast rise times and low intrinsic jitter.
With its 8kB pattern memory and hardware PRBS generation complying with the most commonly used standards, the 81134A is an ideal data and pattern source, particularly for eye diagram measurements. The 81134A also finds use in high-speed serial bus applications, such as PCI Express, Infiniband, and Serial ATA.
Keysight (Formerly Agilent) 81134A Features and Specifications:
- Two channels ? Frequency range from 15MHz to 3.35GHz
- Programmable pulse periods from 66.6 ns to 298.5 ps
- Low jitter (< 2 ps RMS), high accuracy
- LVDS applications can be addressed with output levels from 50 mV to 2.00 V
- PRBS from 25 -1 to 231 -1
- Fast rise times (20 to 80 percent) < 50 ps
- Delay modulation (jitter emulation)
- Variable crossover point (eye deformation)
- 8 Kbit data pattern memory, RZ, NRZ, R1, burst capability
- Graphical user interface (GUI)
- All inputs and outputs are SMA connectors
You can buy, rent, or lease the Keysight (formerly Agilent) 81134A Pulse Pattern Generator from TRS-RenTelco with 365-days support. Request a quote today.
- Configurations
- Resources
- FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Handle Kit Grey 3 Hole
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Base Model
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 81134A Manual
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the frequency range of the Keysight 81134A pulse generator?
The Keysight 81134A operates over a frequency range from 15 MHz to 3.35 GHz. This broad range makes it ideal for testing logic devices including ECL, LVDS, and LVPECL with clock rates across this entire spectrum. The instrument automatically ensures output signals remain above the 15 MHz minimum threshold when using frequency divider settings.
How many independent output channels does the 81134A provide?
The 81134A is a dual channel pulse generator, providing two completely independent output channels. Each channel has both a normal and inverted output, and includes its own delay control input for jitter modulation. Each channel can be configured separately for different signal types, patterns, timing, and voltage levels.
What is the transition time specification for the 81134A pulse generator?
The 81134A offers fast transition times of less than 60 ps. These fast transition times combined with low jitter and high accuracy make the 81134A well-suited for applications requiring precise timing and clean signal edges for high-speed digital device testing.
What voltage amplitude range can the 81134A generate?
The 81134A can generate voltage amplitudes from 50 mV to 2.00 V. It includes predefined level settings for commonly used logic families including ECL, LVPECL, and LVDS, simplifying setup for standard applications. Users can also define custom high and low voltage levels to match specific device requirements.
What PRBS patterns does the 81134A support for eye diagram measurements?
The 81134A supports pseudo-random binary sequences (PRBS) from 2^5-1 through 2^31-1, providing comprehensive pattern options for evaluating device performance in eye diagram measurements. The PRBS capability combined with the instrument's variable crossover feature and jitter modulation allows creation of stressed eye patterns for robust device characterization.
How much pattern memory is available in the 81134A?
The 81134A provides 12 Mbit of pattern memory per channel, allowing creation of large custom data patterns. Patterns can be configured in NRZ, RZ, or R1 format and support burst capability for generating complex signal sequences. This substantial memory depth supports a wide range of test applications requiring arbitrary pattern generation.
What is the delay modulation range for adding jitter to signals on the 81134A?
The 81134A offers a delay modulation (jitter) range of plus or minus 250 ps or plus or minus 25 ps selectable. This is applied via the Delay Control Input on each channel, allowing external signals to modulate the timing of the generated pulses or patterns. This feature is valuable for stress testing receivers and evaluating jitter tolerance in high-speed digital communication systems.
What remote control interfaces are available on the 81134A?
The 81134A provides three remote programming interfaces: GPIB, USB, and LAN (Ethernet). All interfaces support full instrument control using SCPI commands, providing flexibility for integration into automated test systems. The rear panel houses all three interface connectors along with the power connector for convenient rack mounting and system integration.
