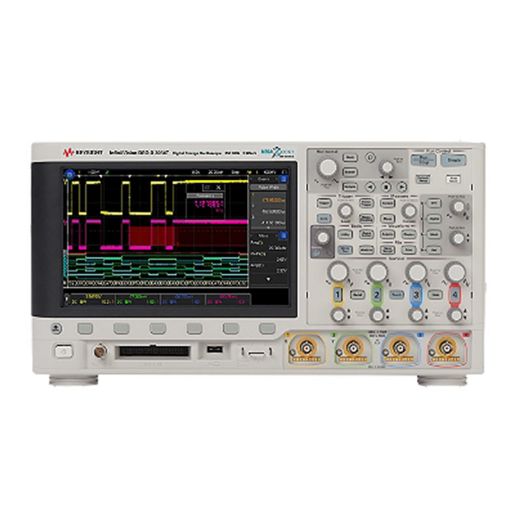

Keysight Technologies DSOX3104T
4-channel,1 GHzOscilloscope
The Keysight DSOX3104T is a 1 GHz, four channel oscilloscope capable of quick signal isolation, with higher data capture and upgrade capabilities.
Keysight, Formerly Agilent DSOX3104T - Key Features and Specifications:
- 1 GHz
- 4 analog channels
- Easily view and analyze your signals with on the large 8.5-inch capacitive touch screen
- Isolate signals in seconds with exclusive zonetouch triggering
- See more signal detail with the 1,000,000 wfms/s update rate
- Capture more data with up to 4 Mpts memory
- Expand your oscilloscope's capabilities with powerful applications
o Hardware-based trigger and decode of low speed serial buses like IC, SPI, RS232, CAN, and more
o First hardware based mask/limit testing
o Integrated automated power analysis
o BenchVue software makes it simple to connect and record results
Rent or lease the Keysight, formerly Agilent DSOX3104T at TRS-RenTelco. We have an experienced team of metrologists and technicians that calibrates every product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us to know more or request a quote today.
- Configurations
- Resources
- FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Probe Passive 500 MHz x10
Qty: 4
*This item has already been added to your cart. Check your cart for quantity and availability.
--, DSOX3EMBD
See Configuration Details
-
DSOX3EMBD
Embedded Serial Triggering and Analysis (I2C, SPI) for 3000 X- Series Oscilloscopes, fixed perpetual license
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Probe Passive 500 MHz x10
Qty: 4
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies MSOX Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Keysight DSOX3104T?
The Keysight DSOX3104T is a 1 GHz, four-channel oscilloscope capable of quick signal isolation, high data capture, and upgrade capabilities.
What are the key features of the DSOX3104T?
Key features include a 1 GHz bandwidth, 4 analog channels, an 8.5-inch capacitive touch screen, 1,000,000 wfms/s update rate, and up to 4 Mpts memory.
What applications is the DSOX3104T suitable for?
It is ideal for debugging and testing high-speed digital, RF, and power applications.
How does the DSOX3104T ensure accurate measurements?
It features hardware-based trigger and decode of low-speed serial buses, integrated automated power analysis, and advanced signal detail capture.
What voltage levels does the DSOX3104T support?
The oscilloscope supports various voltage levels compatible with low-speed serial buses like I2C, SPI, RS232, and CAN.
What accessories are included with the DSOX3104T?
Standard accessories include a power cord and four passive probes (500 MHz).
Is the DSOX3104T easy to use in various test setups?
Yes, its large touch screen and intuitive interface make it adaptable to different testing environments.
What is the channel capacity of the DSOX3104T?
It supports 4 analog channels.
What are the physical dimensions of the DSOX3104T?
Specific dimensions are not provided on the product page; refer to the Keysight datasheet for detailed specifications.
Where can the Keysight DSOX3104T be rented, leased, or purchased?
The Keysight DSOX3104T can be rented, leased, or purchased through TRS-RenTelco.
