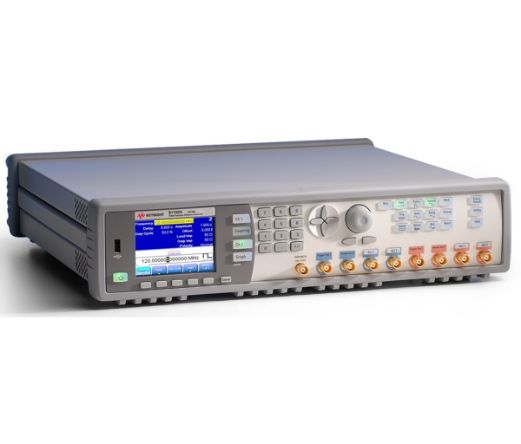

Keysight Technologies 81150A
Pulse Function Arbitrary Noise Generator
Keysight (formerly Agilent)'s new 81150A gives you a precise 120 MHz Pulse Generator and a versatile 240 MHz, 2 GSa/s Function Arbitrary Waveform Generator and a 120 MHz Noise Generator for the price of a Pulse Generator. The Keysight (formerly Agilent) 81150A Pulse Function Arbitrary Noise Generator is designed for today's and tomorrow's test challenges. It provides signal quality combined with a huge number of different signals like pulse, sine, square, ramp, noise and arbitrary waveforms. Whatever signals you need you either have it as part of the instrument or on a PC with the proven IntuiLink software. Capturing waveforms from a scope and downloading into the Keysight (formerly Agilent) 81150A is easily possible. The 2 channel version allows coupling / uncoupling the channels so that you can generate signals with a defined delay or the channels work entirely independent. The channel add function allows you to add a distorted signal from one channel to a clean signal from the other channel. The modulation capabilities like FM, AM, PM, FSK, PWM up to 10 MHz combined with the noise functionality allows you to create real-world signals, simple and fast.
The selectable crest factor (Vpeak/RMS) allows you to do jitter tolerance testing under real world conditions. 1 ?Hz to 120 MHz pulse generation with variable rise/fall time 1 ?Hz to 240 MHz sine waveform output 14-bit, 2 GSa/s arbitrary waveforms 512 k samples deep arbitrary waveform memory per channel Pulse, sine, square, ramp, noise and arbitrary waveforms Noise, with an adjustable crest factor, and signal repetition of 26 days FM, AM, PM, PWM, FSK modulation capabilities 1 or 2 channel, coupled and uncoupled Differential outputs Two selectable output amplifiers: High bandwidth or High Voltage Glitch free change of timing, parameters (delay, frequency, transition time, width, duty cycle) Programming language compatible with Keysight (formerly Agilent) 81101A, 81104A, 81105A USB, GPIB, LAN Connectivity<
- Configurations
- Resources
- FAQsAI
--, 002
See Configuration Details
-
002
Two output channels for 81150A
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
USB Drive Manuals
Qty: 1 -
USB Software I/O Libraries, v18.3.29517
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 002, PAT
See Configuration Details
-
002
Two output channels for 81150A
-
PAT
Pattern Generator License for 81150A
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
USB Drive Manuals
Qty: 1 -
USB Software I/O Libraries, v18.3.29517
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 81150A Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Keysight 81150A?
The Keysight 81150A is a versatile signal generator that combines a 120 MHz pulse generator, 240 MHz function/arbitrary waveform generator, and a noise generator in one instrument, designed to meet various testing needs.
What are the key features of the Keysight 81150A?
Key features include 120 MHz pulse generation, 240 MHz sine waveform output, 14-bit resolution, 2 GSa/s sampling rate, 512 k samples deep memory, and modulation capabilities such as FM, AM, PM, FSK, and PWM up to 10 MHz.
What applications is the Keysight 81150A suitable for?
It is ideal for testing and characterizing electronic devices, systems, and circuits, particularly in applications requiring precise signal generation and modulation.
How does the Keysight 81150A enhance testing capabilities?
It provides high-quality signal generation with low harmonic distortion, flexible modulation, and the ability to create complex waveforms, facilitating accurate testing and analysis.
What connectivity options does the Keysight 81150A support?
The device supports USB, GPIB, and LAN connectivity, ensuring easy integration into automated test setups.
What accessories are included with the Keysight 81150A?
Accessories include a power cord, USB-A to USB-B cable, USB drive with manuals, and USB Software I/O Libraries.
Is the Keysight 81150A user-friendly?
Yes, its intuitive interface and comprehensive software support make it user-friendly for various testing applications.
What is the output frequency range of the Keysight 81150A?
The device supports an output frequency range up to 240 MHz for sine waveforms and 120 MHz for pulse generation.
What are the modulation capabilities of the Keysight 81150A?
It offers various modulation types, including FM, AM, PM, FSK, and PWM, enabling the creation of real-world signals for testing.
Where can the Keysight 81150A be rented, leased, or purchased?
The Keysight 81150A can be rented, leased, or purchased through TRS-RenTelco.
